Class D Hifi Sabaj Audio Digital Amplifier A1 Protable Mini AMP HIFI 60W 30W*2 RMS RCA Analog Black Silver
Product description:
A1 first class D digital amplifier from Sabaj Audio.Perfectly work with 4-6inch speaker.Total output power is 30W*2CH.It supports two way inputs jack of 3.5mm and RCA.

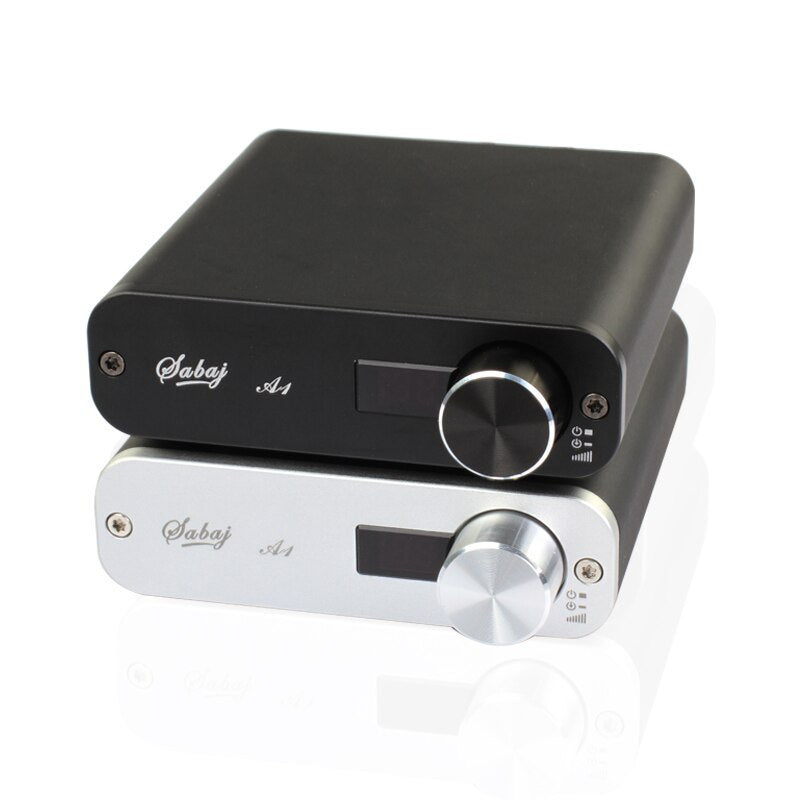

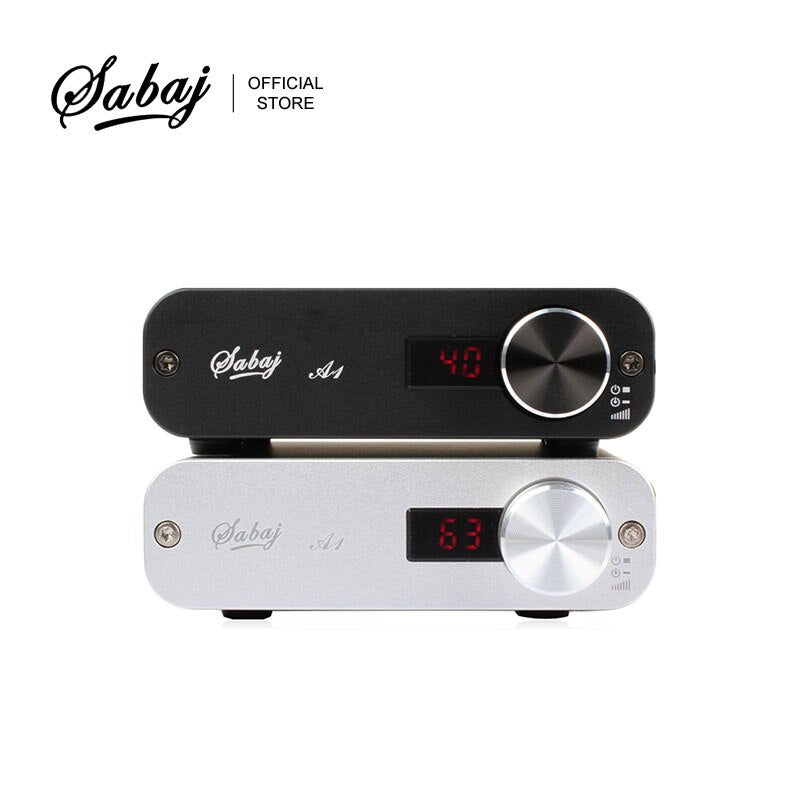

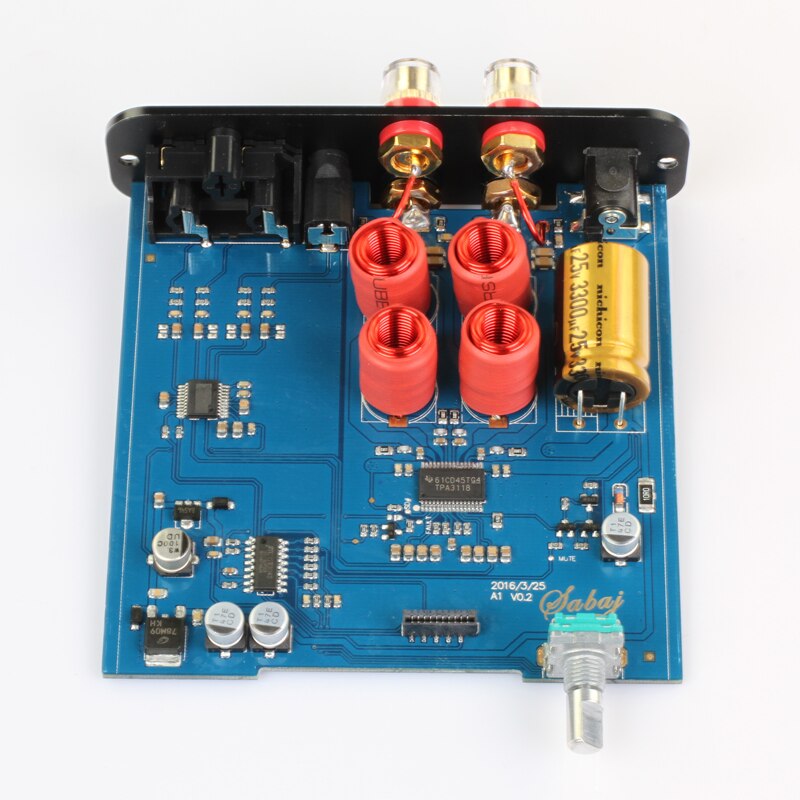

A1 uses Compact aluminum cabinet . Rotary volume knob on front panel and LED screen is more convenient for users to operate it. Using TPA3118 chip from TI and nichicon FW series capacitor as main filter.
Long-press for turning on/off,short-press knob is input switch(in1 is 3.5mm and in2 is RCA).Flexible memory function for volume,it will keep last usage volume when you
restart the unit if your volume is between 12 and 40 in last usage;If your volume is up 40 in last usage,to keep your hearing,Volume will be as low as 40 when you restart it.
Specification:
-
Model :A1
-
Output power(4ohm):30W+30W
-
Output power(8ohm):20W+20W
-
Color:Black ,silver
-
THD+N:<0.04%
-
Product size:105*105*31mm
-
Power consumption:25W
-
Power supply voltage:24V
-
Standby power:1.7w
-

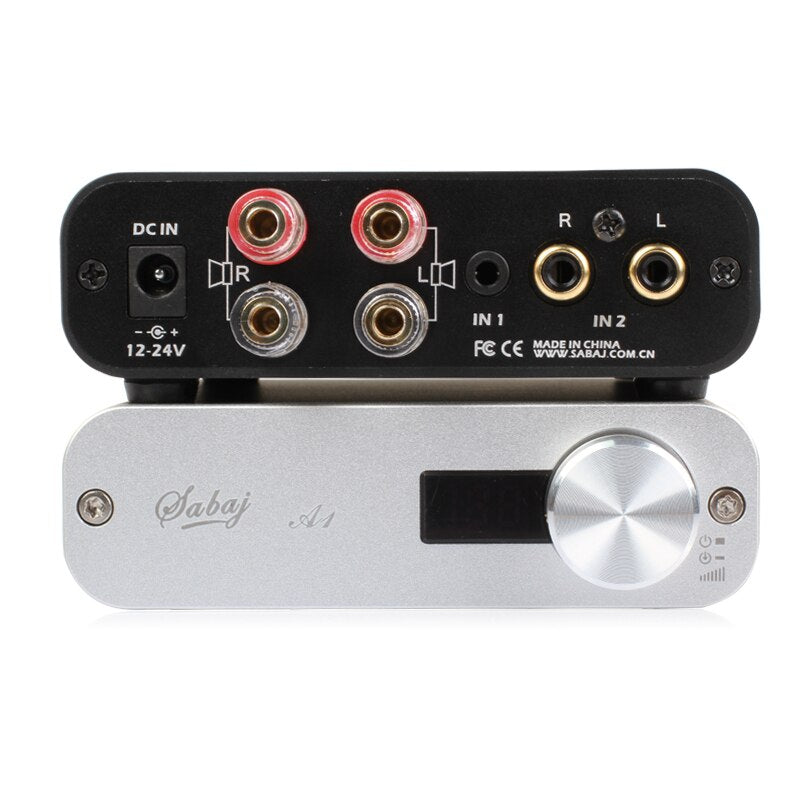

Input jack:3.5mm and RCA
-
Prodct weight:359g
-
Output jack:banana plug.
-
Package weight:803g
-
Input level:2V
-
Accessary:power supply 24v
-
SNR: 100dB
-
Amplifier chip: TPA3118
-
Channel separation: >90d
