Sabaj A20d 2023 High Res USB Audio DAC & Headphone AMP AK4191+AK4499EX
Sabaj A20d 2023 High Res USB Audio DAC & Headphone AMP AK4191+AK4499EX
Sabaj A20d 2023 High Res USB Audio DAC & Headphone AMP: Unleash the Power of Exceptional Audio
Discover the ultimate audio experience with the Sabaj A20d 2023 High Res USB Audio DAC & Headphone AMP. This groundbreaking product combines state-of-the-art technology, unrivaled performance, and versatile features to redefine your audio journey.
Key Features:
AK 4499 EX Chip Audio DAC with Headphone AMP
Elevate your audio to new heights with the AK 4499 EX chip audio DAC and integrated headphone amplifier. This cutting-edge chip guarantees impeccable sound reproduction, while the built-in amplifier delivers a powerful and immersive listening experience.
XU-316 XMOS with Native DSD512 Support
The A20d 2023version features the XU-316 XMOS, a three-generation sixteen-core processor. With native DSD512 support and PCM sampling rates of up to 32bit/768kHz, you can indulge in high-resolution audio with astonishing detail and precision. It seamlessly integrates with Windows 7 and above, macOS X10.6 and above, and Linux operating systems.
Precision Filters and Customizable Tone Options
Personalize your audio journey with four distinct tone options and adjustable PCM and DSD filters. The menu offers a range of timbres and modes to suit your preferences, providing a tailor-made listening experience that also tests your discerning hearing abilities.
Preamp Mode and Flexible Output Options
The A20d 2023version boasts a preamp mode that enhances your audio output. With an output amplitude of up to 4.6Vrms through the XLR output and 2.3Vrms through the RCA output, you have the freedom to choose from three different output modes. Whether you prefer a fixed volume, variable volume control, or DSD pass-through, this device caters to your specific needs.
High-Performance Headphone AMP
Experience audio like never before with the A20d 2023version's high-performance headphone amplifier. Designed with top-of-the-line audio-specific components and the TPA6120A2 from Texas Instruments (TI), it offers bandwidth, low noise, and astonishingly low distortion of -120dB. With adjustable gain options (+8dB and 0dB), you can fine-tune your audio to perfection.
Full Interface Support for DSD Transmission

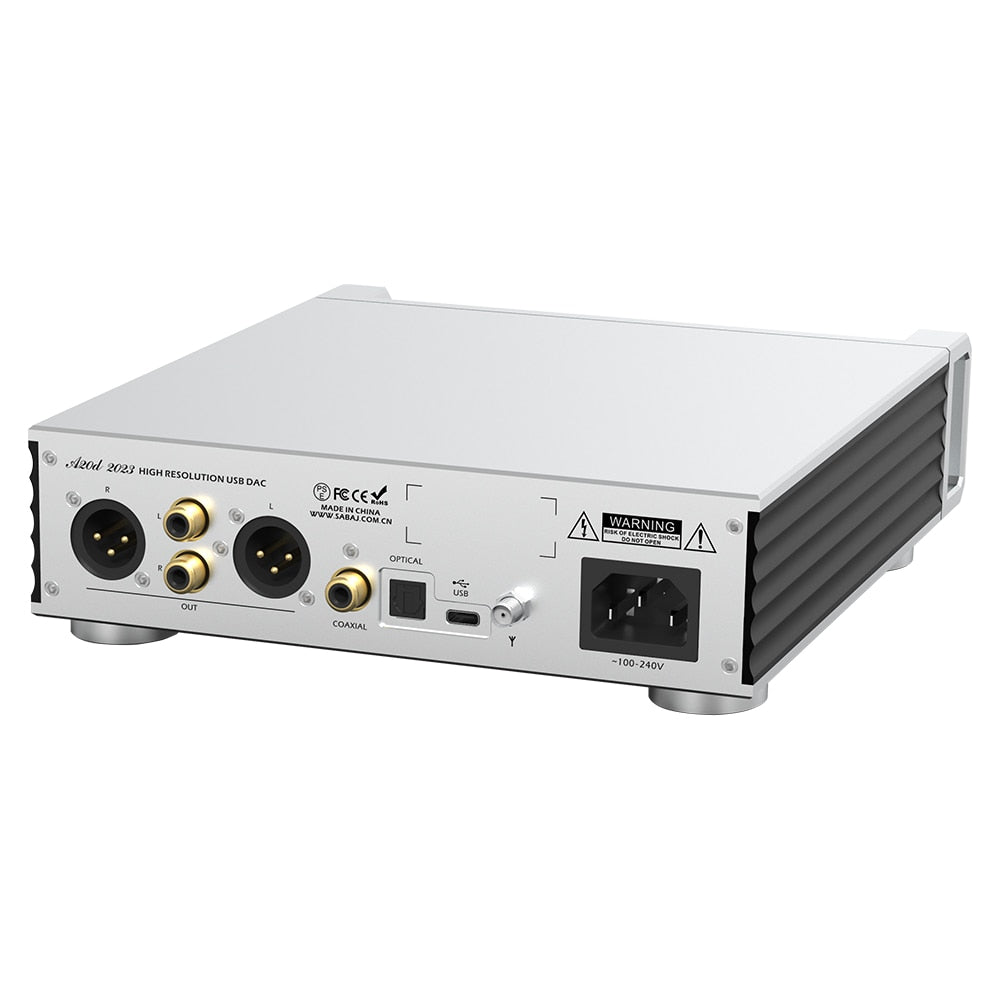

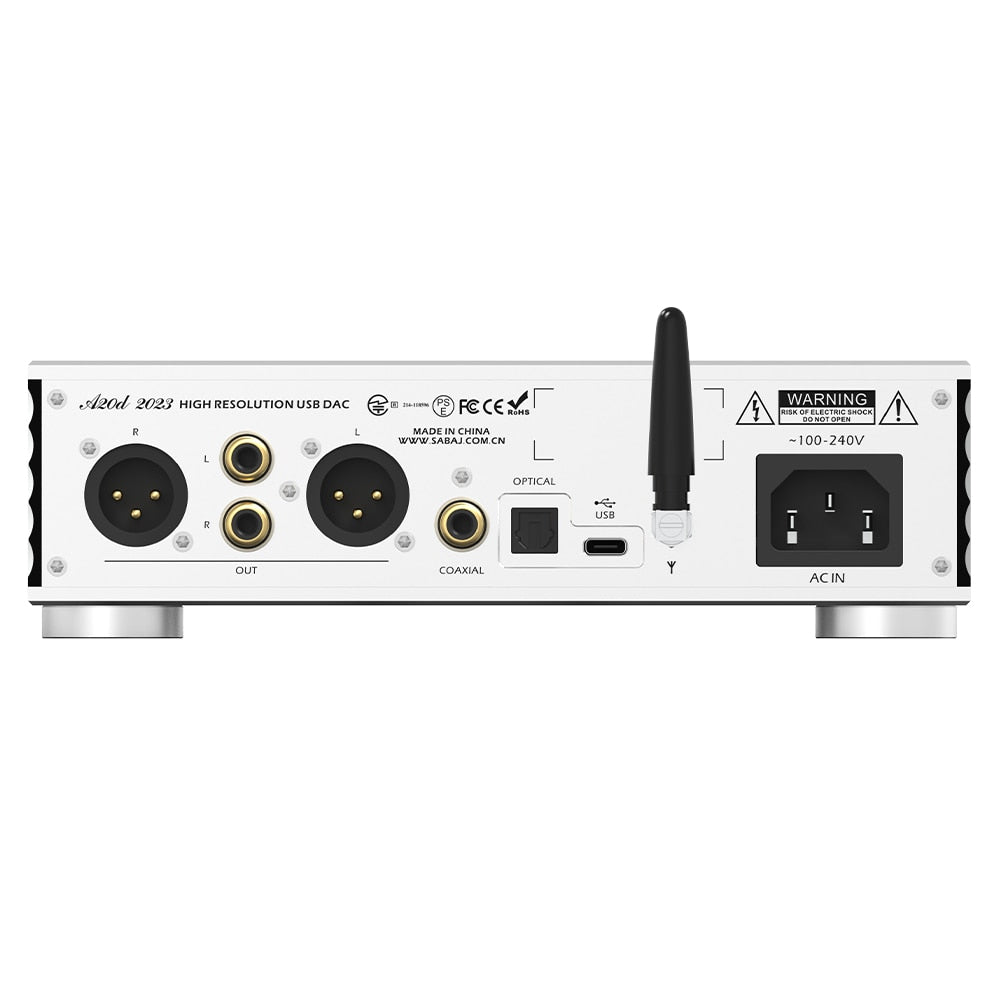

The A20d 2023version features a sleek and functional design. All wired input ports support DSD transmission, and the coaxial and optical fiber inputs support DoP64. The rear placement of the interfaces ensures easy wiring and minimizes interference from other devices.
MQA-CD Support and High-Spec Bluetooth
Indulge in high-quality MQA music with MQA-CD support, allowing you to enjoy stunning audio when connected via optical or coaxial interfaces. Additionally, the A20d 2023version offers high-spec Bluetooth capabilities, supporting LDAC, apt-X HD, and AAC, enabling stable and high-speed wireless audio transmission over a distance of up to 20 meters.
Intuitive Remote Control and High-Resolution Screen

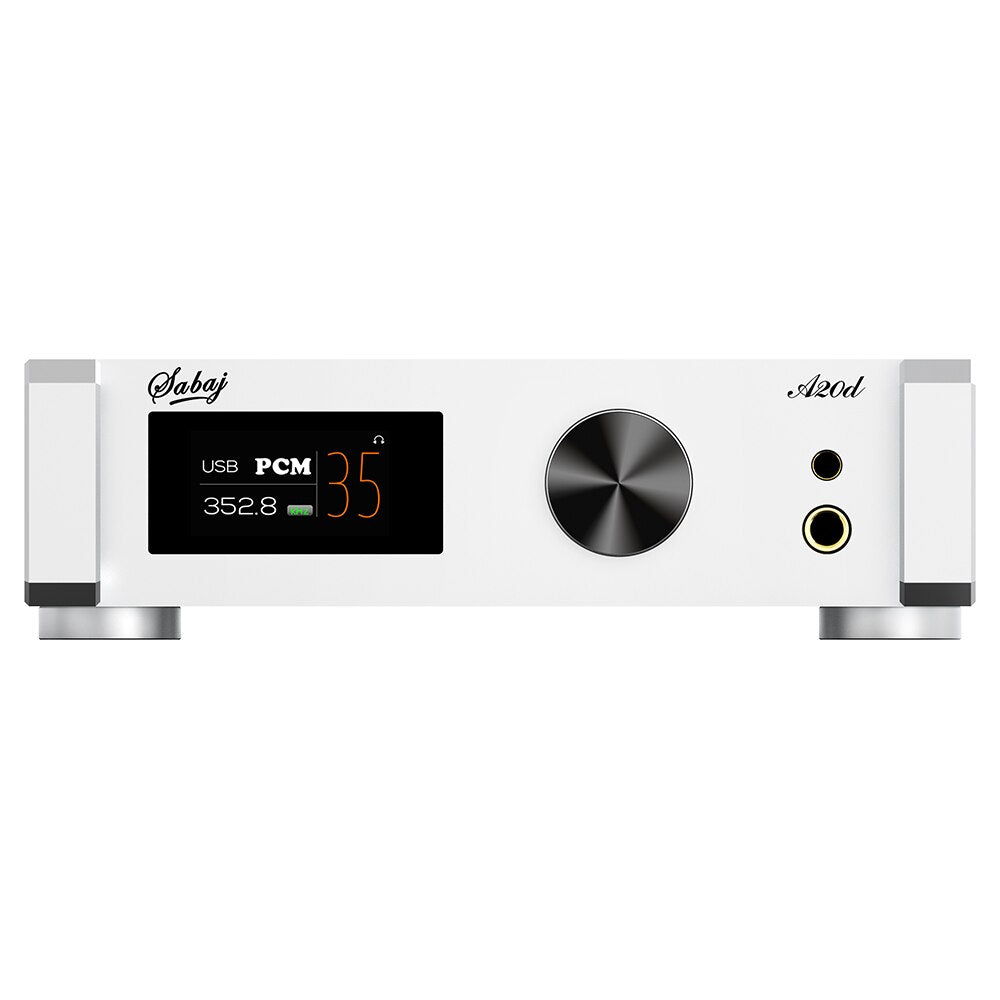

Take control of your audio experience with the A20d 2023version's convenient remote control. The device features a high-resolution screen that displays volume levels, song bit rates, input sources, and output methods. With six adjustable brightness levels, you can customize the screen to your liking. The remote control even allows for FN key customization, providing an effortless and personalized user experience.
Premium Components and Real Performance
The A20d 2023version's top-notch performance is backed by high-quality components. With three pieces of high-end dual op amp OPA1612 and a dedicated filter circuit for noise and distortion reduction, you can expect exceptional audio clarity and purity. Real parameters measured by the APx 555 B professional audio analyzer confirm the device's outstanding performance, boasting a distortion level as low as -123dB, a dynamic range of up to 131dB, and a signal-to-noise ratio of 131dB.
With the 2023 Sabaj A20d High Res USB Audio DAC & Headphone AMP, prepare to embark on a sonic adventure like never before. Immerse yourself in the true essence of audio excellence and indulge in a world of unparalleled sound quality.
