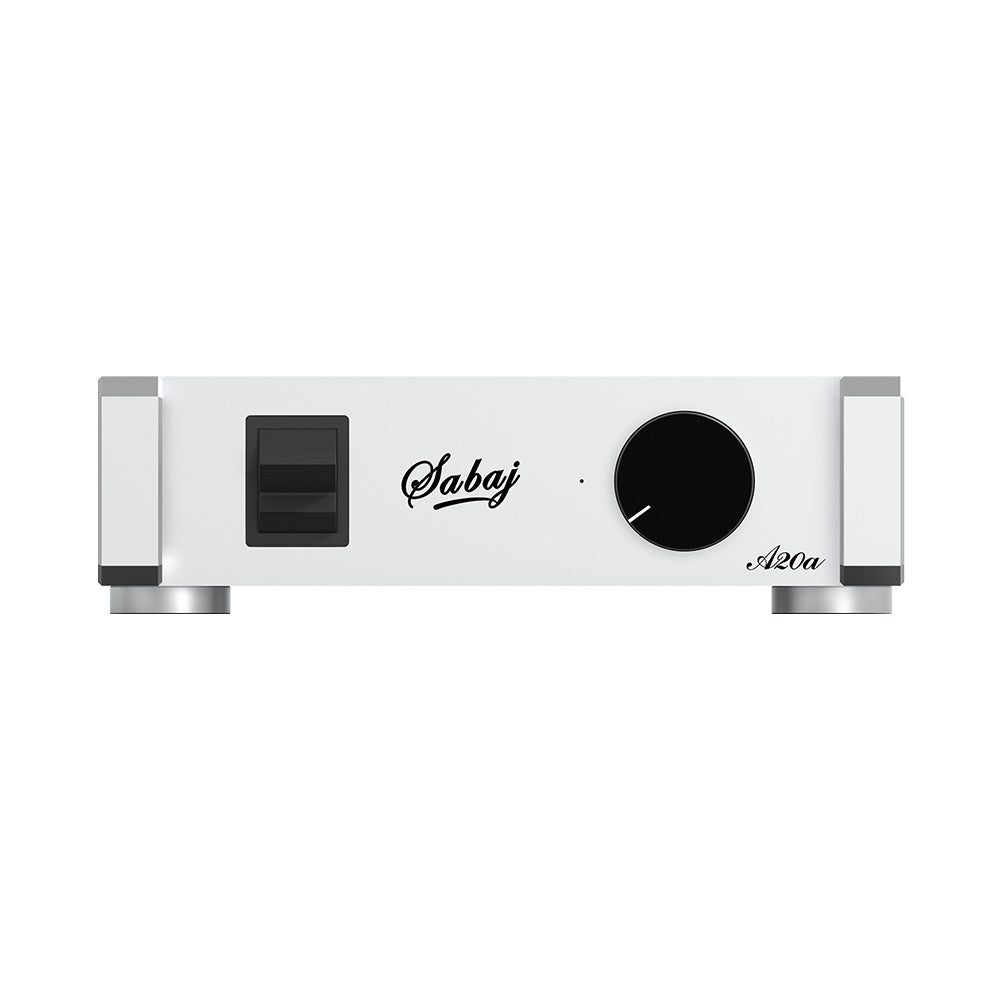

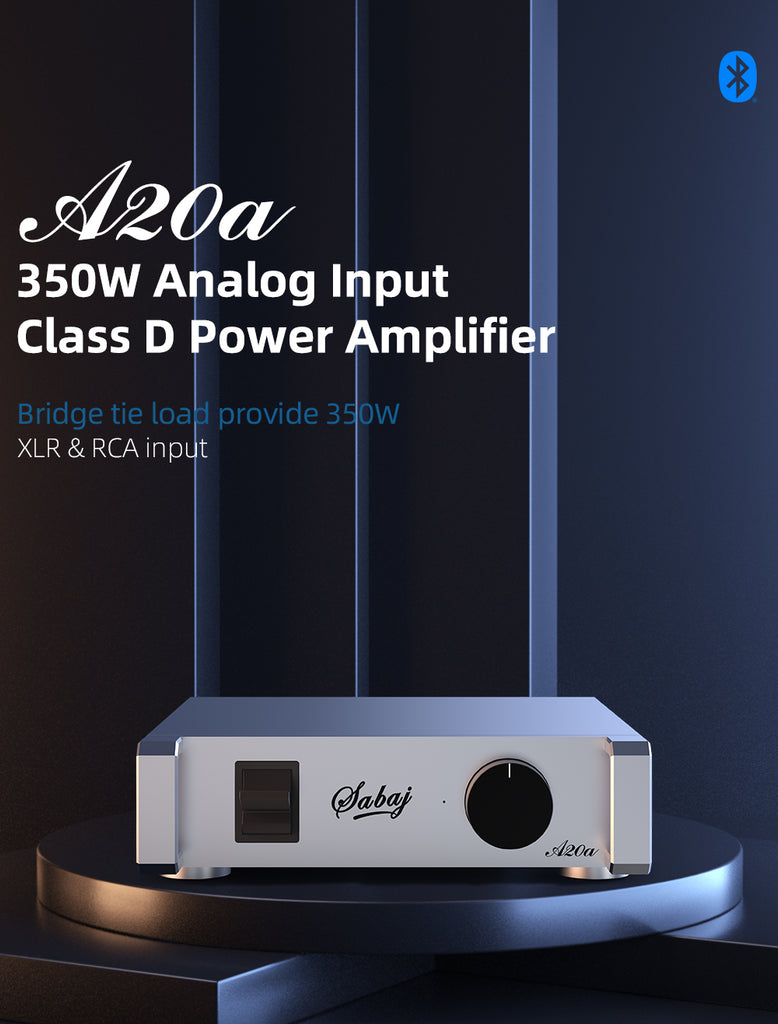

Sabaj A20A 2022‘v Power Amplifier

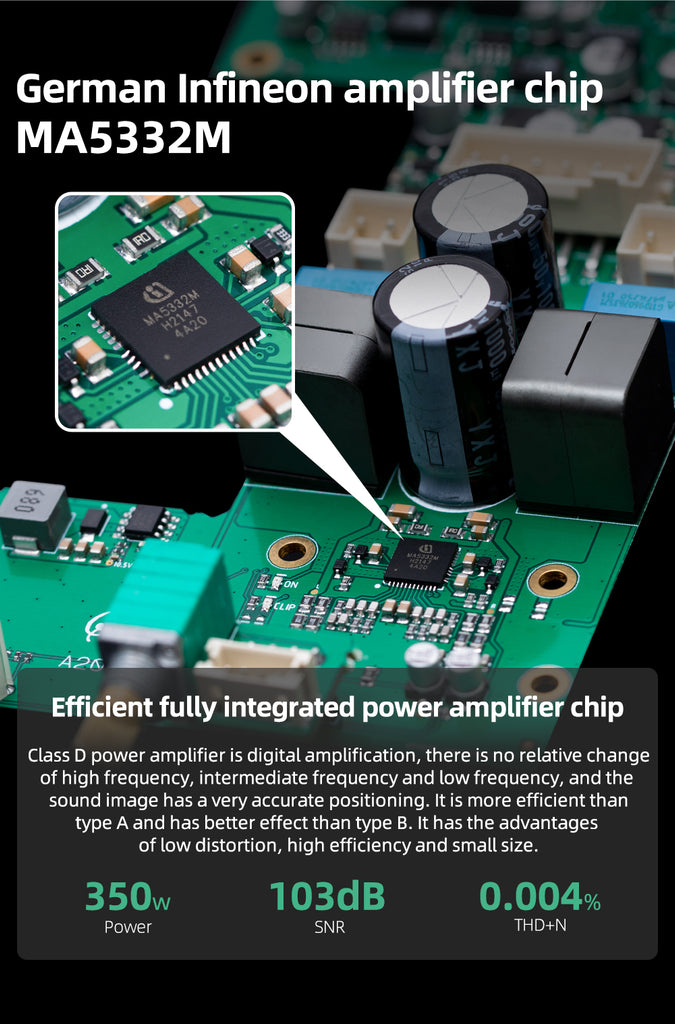

- Germany Infineon's latest digital high-power amplifier chip has higher quality,
- high efficiency and low energy consumption;

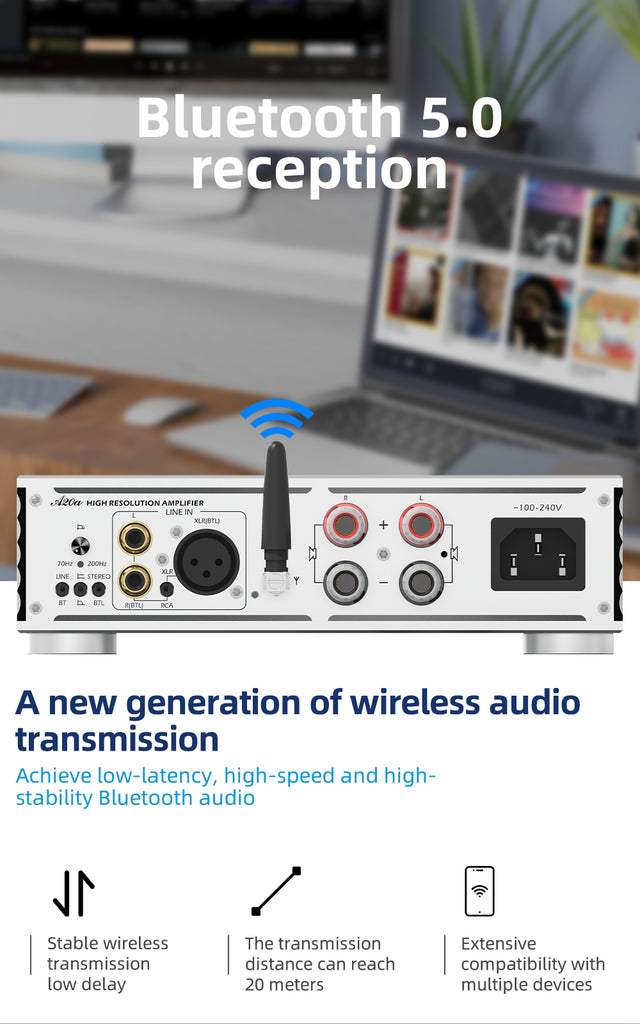

- Bluetooth 5.0 reception, longer transmission distance, better sound quality!

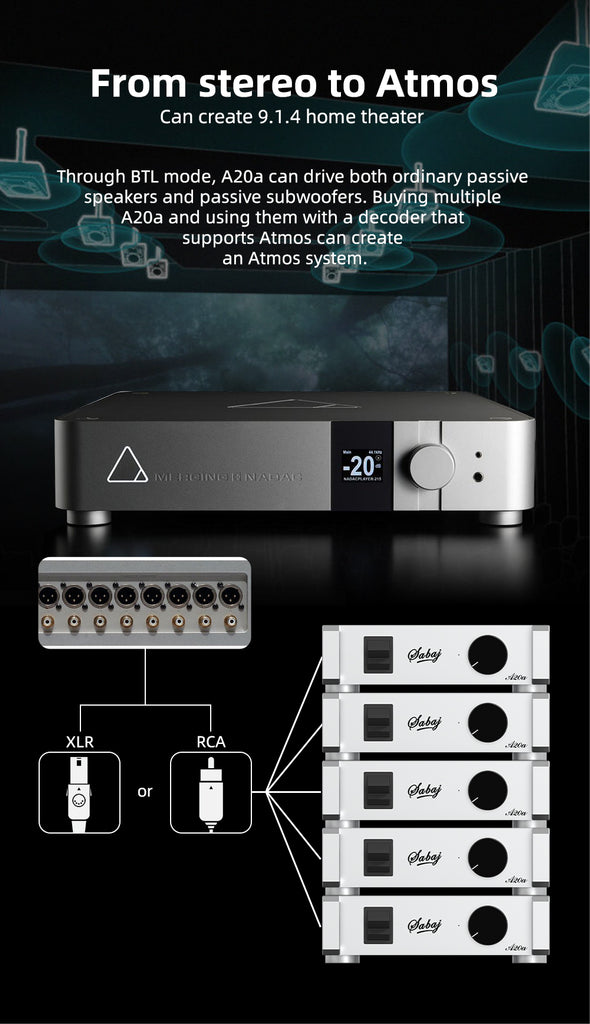

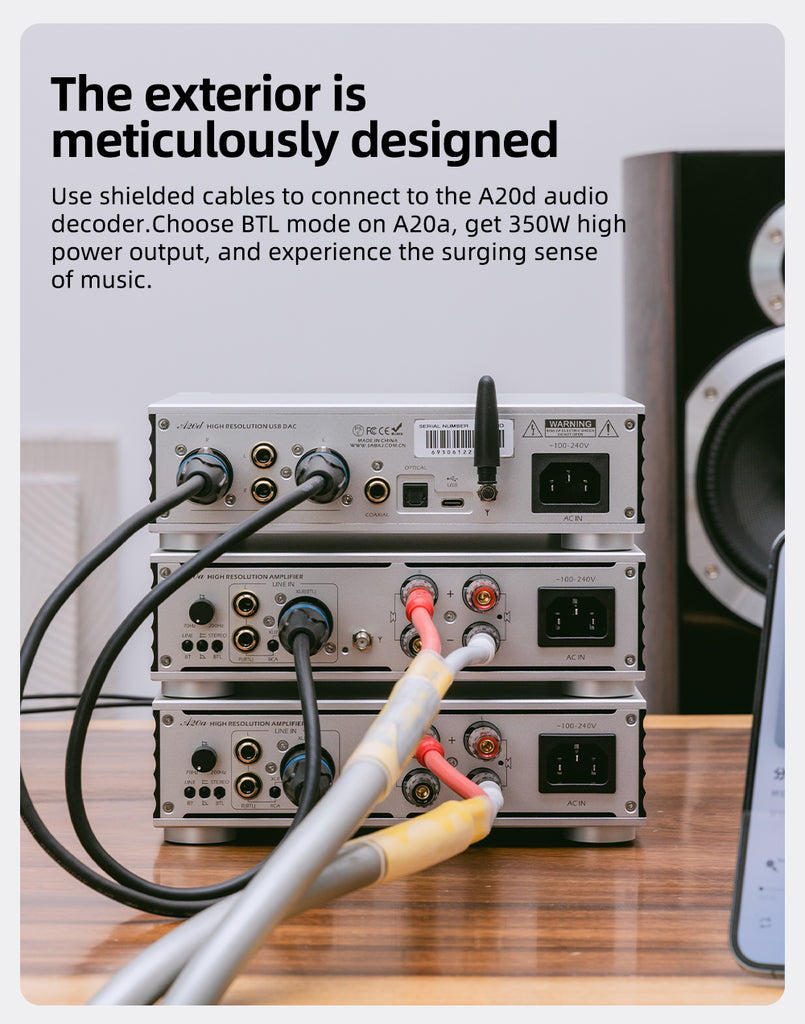

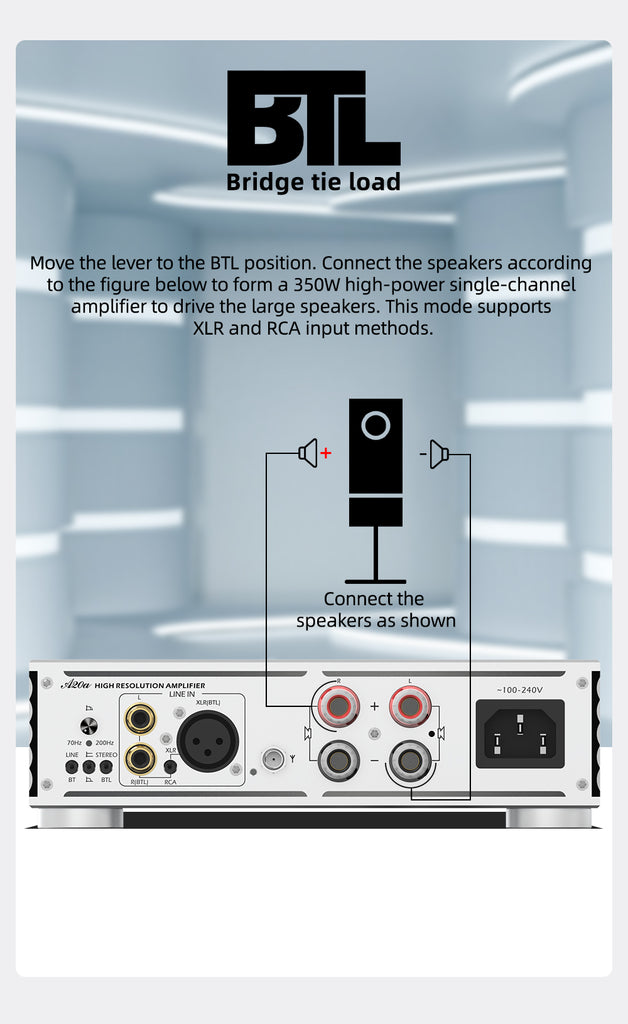

- It can be BTL into a single-channel amplifier with higher power to drive large
- speakers. Or set it to subwoofer mode to drive passive subwoofers.

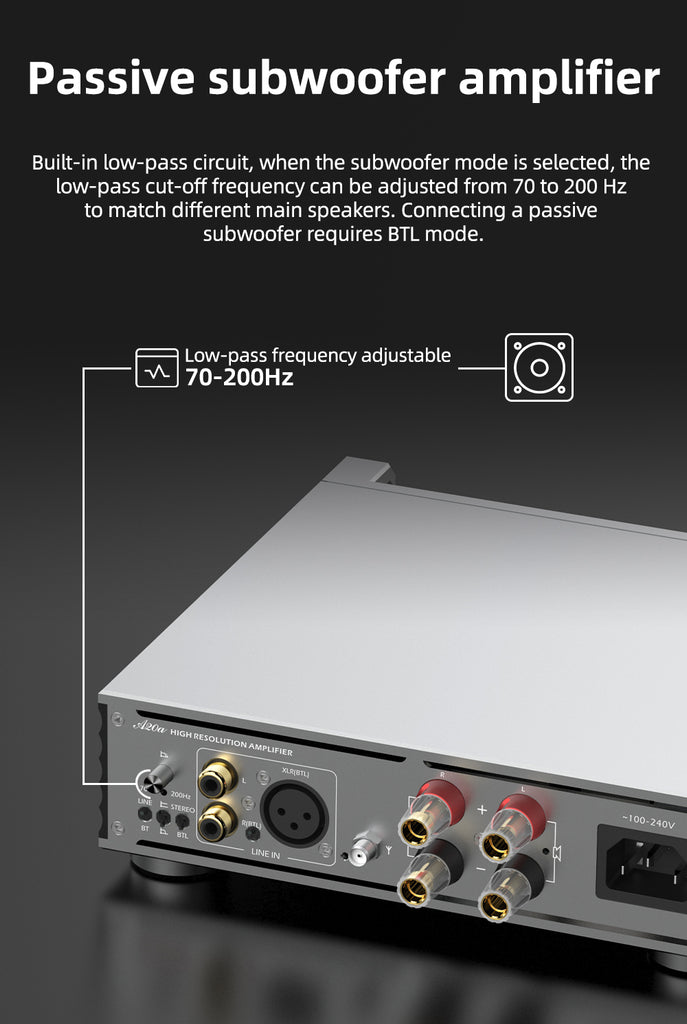

- Built-in low-pass circuit, in subwoofer mode, the low-pass cutoff frequency is
- adjustable from 70 to 200Hz to match different main speakers.

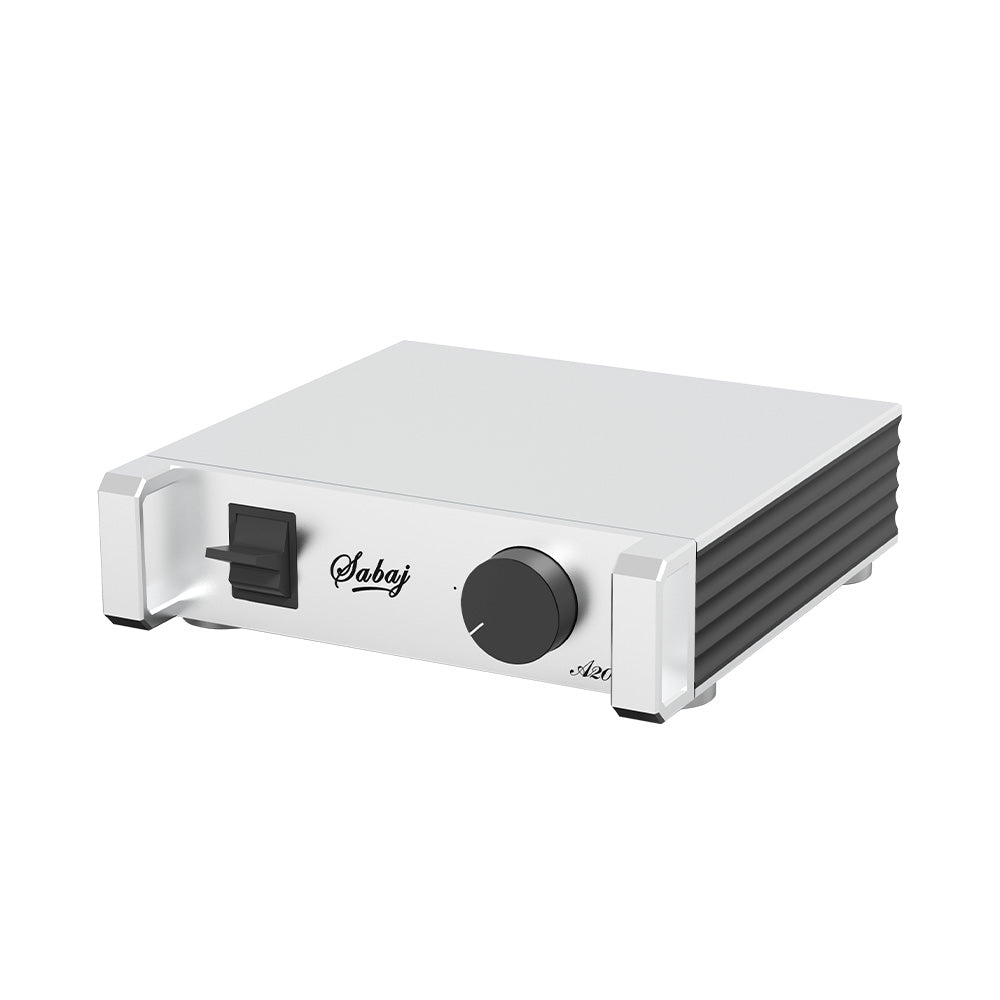

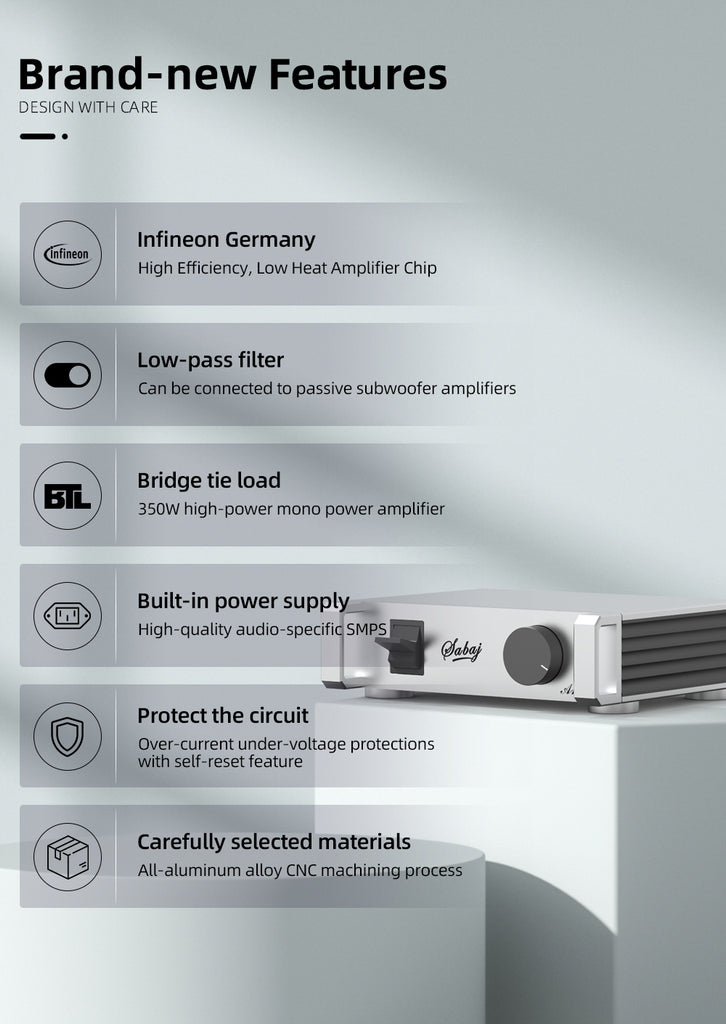

- All aluminum alloy CNC processing technology, using anodizing technology,
- fine workmanship, first-class touch;
- A large number of audiophile-grade audio components are used to enhance
- the subjective sense of hearing;

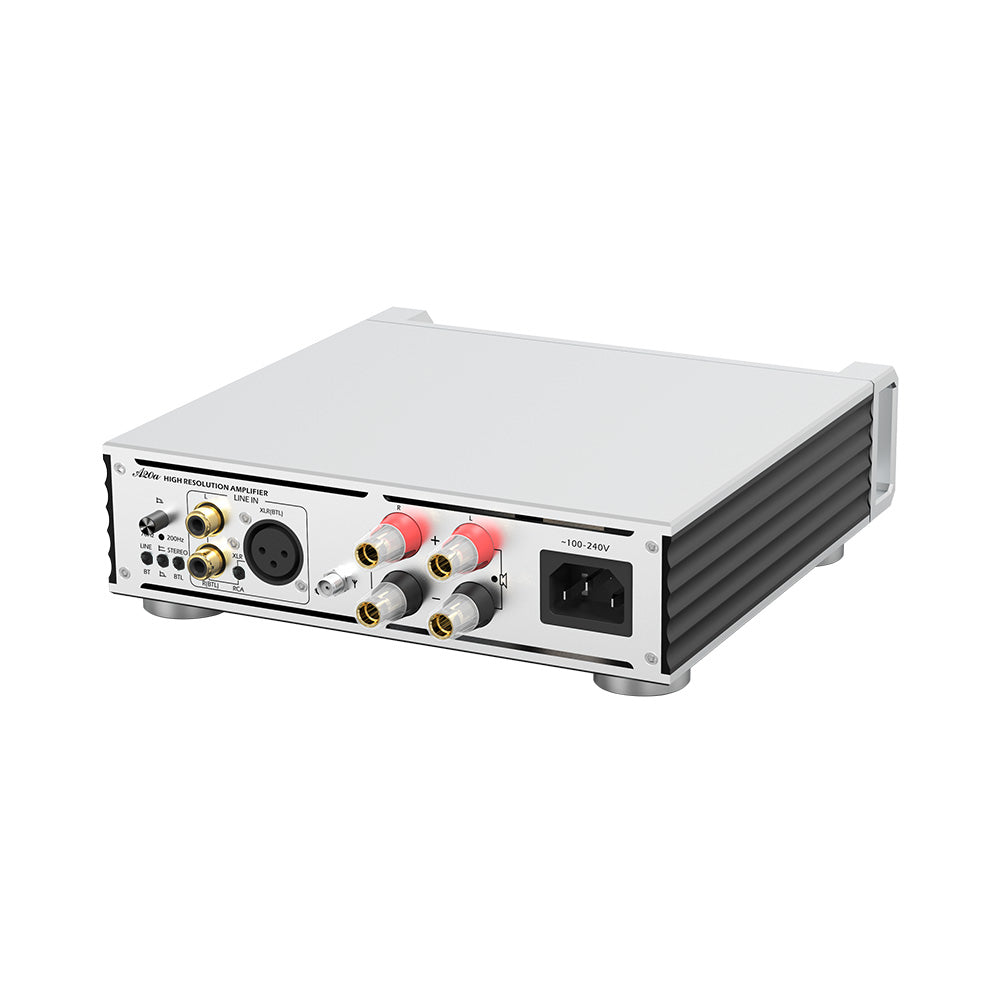

- High-quality gold-plated input and output terminals;
- Perfect overheating, overcurrent and other protection circuits;
- Built-in audio dedicated high-quality switching power supply

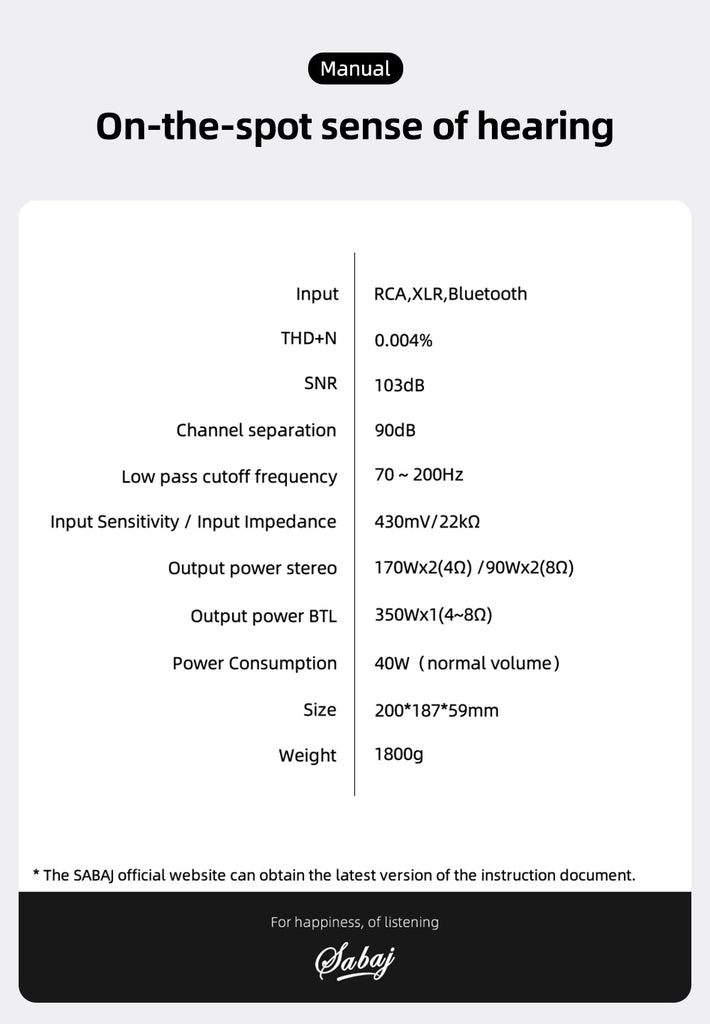

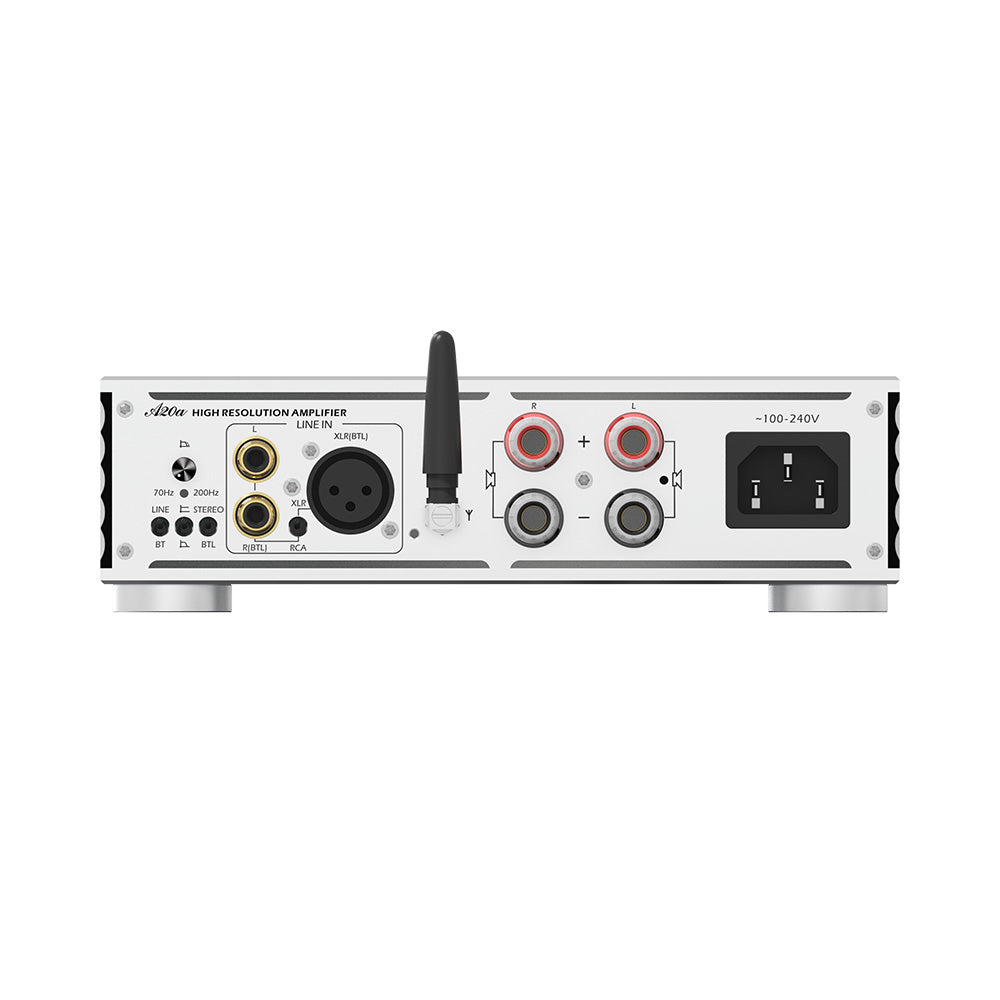

Inputs ..................................................................................................RCA / XLR
THD+N ...................................................................................................0.004%
SNR ..........................................................................................................103dB
Channel separation .....................................................................................90dB
Low pass cutoff frequency...................................................................70~200Hz
Input Sensitivity / Input Impedance ......................................430mV / 22kΩ
Output Power
Stereo ........................................................... 170Wx2(4Ω)/90Wx2(8Ω)
BTL ............................................................................. 350Wx1(4~8Ω)
Power Consumption ....................................................................................40W
Standby power .........................................................................................<0.6W
Size .............................................................................200x220x59mm(WxHxD)
Weight ......................................................................................1800g / 3.99Lbs
