SMSL D400ES Audio DAC MQA MQA-CD Hires ES9039MSPRO



The SMSL D400ES is a high-performance DAC designed to get the most out of your digital audio. With support for MQA-CD, USB, optical, coaxial, AES and I2S, this DAC offers a wide range of inputs for your digital audio. It is compatible with Windows, Mac OSX, and Linux, making it an easy choice for any system.

ES9039MSPRO flat DAC chip

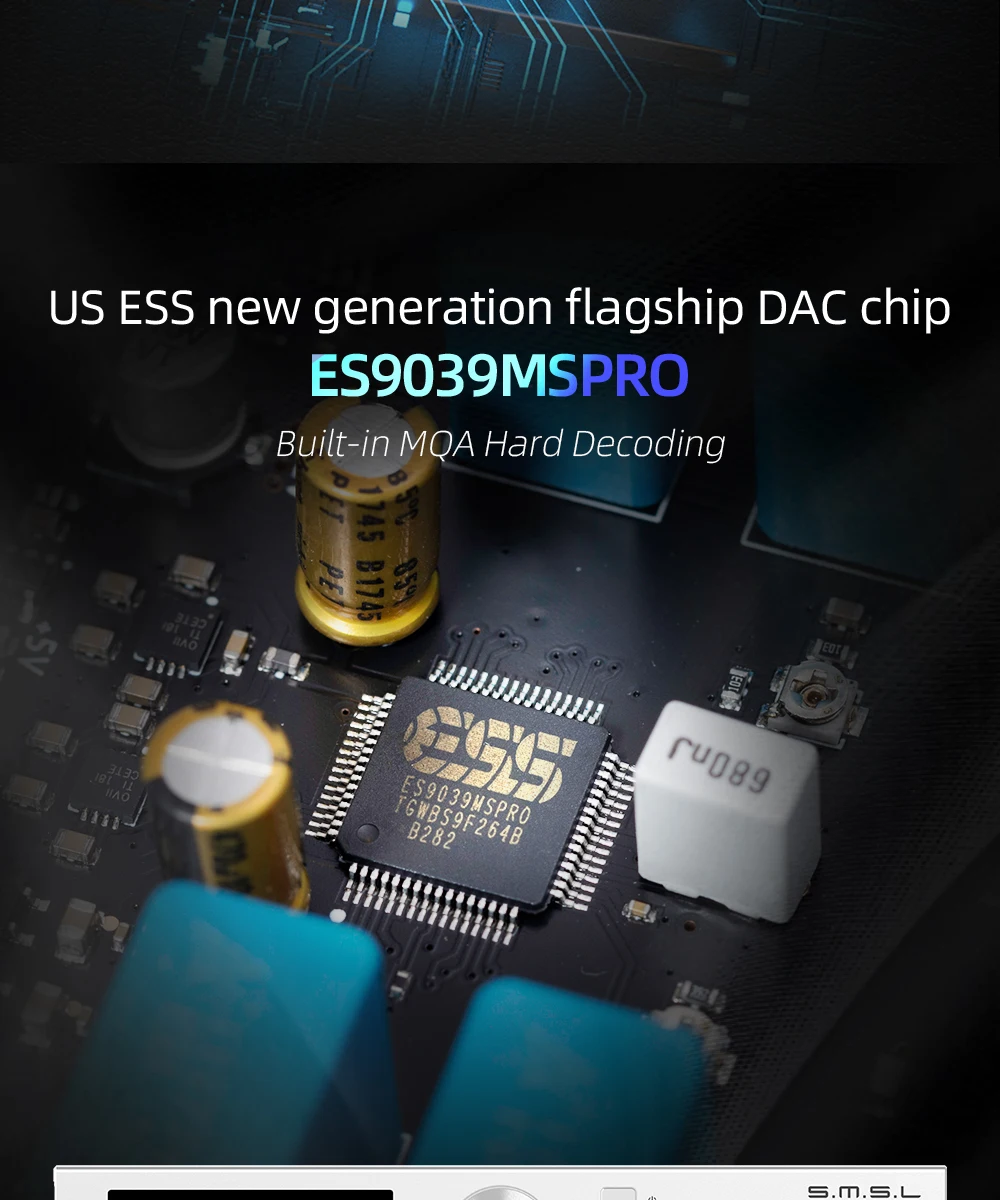

The SMSL D400ES features an ES9039MSPRO DAC chip from ESS, with built-in MQA hard decoding and up to 32bit/768kHz PCM and DSD512 support. It also features eight channel parallel circuit design, 11 high-end dual op amps, and a low distortion of 0.00005% (-125dB). Qualcomm high-end Bluetooth chip supports LDAC (24bit/96kHz), APTX/HD, SBC, AAC.

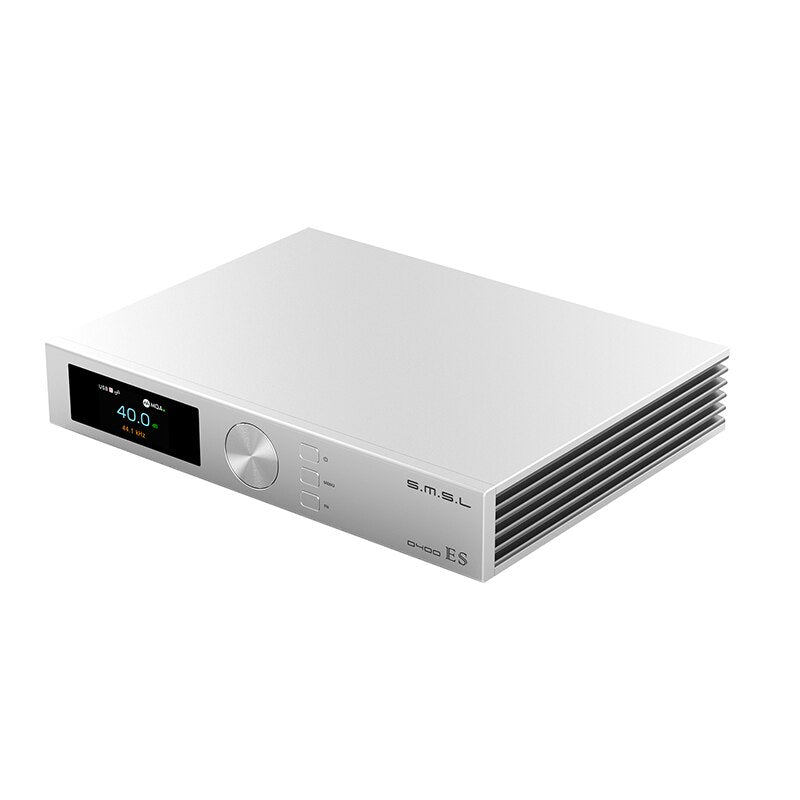

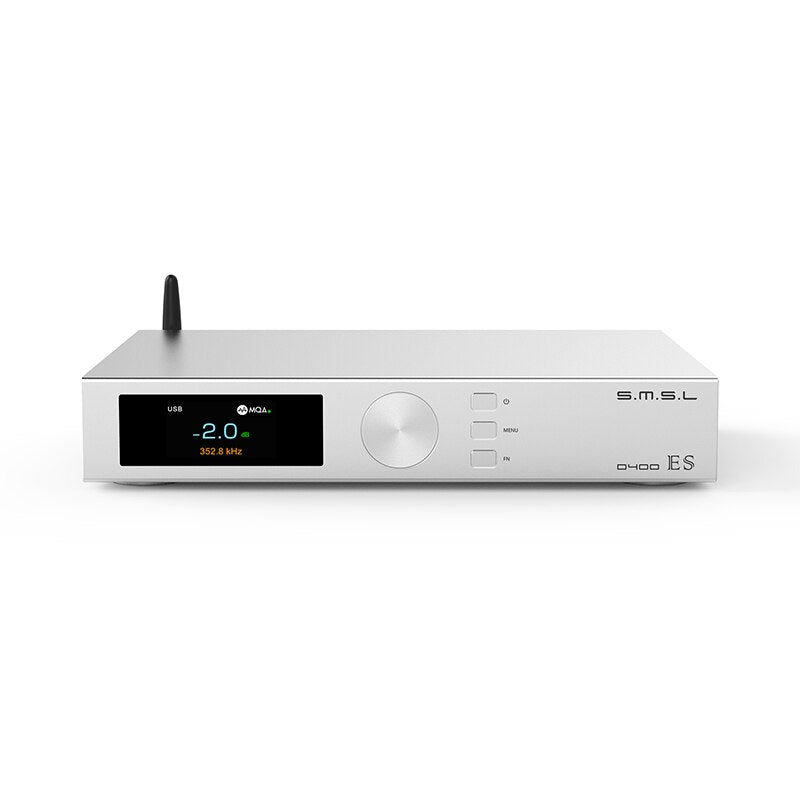

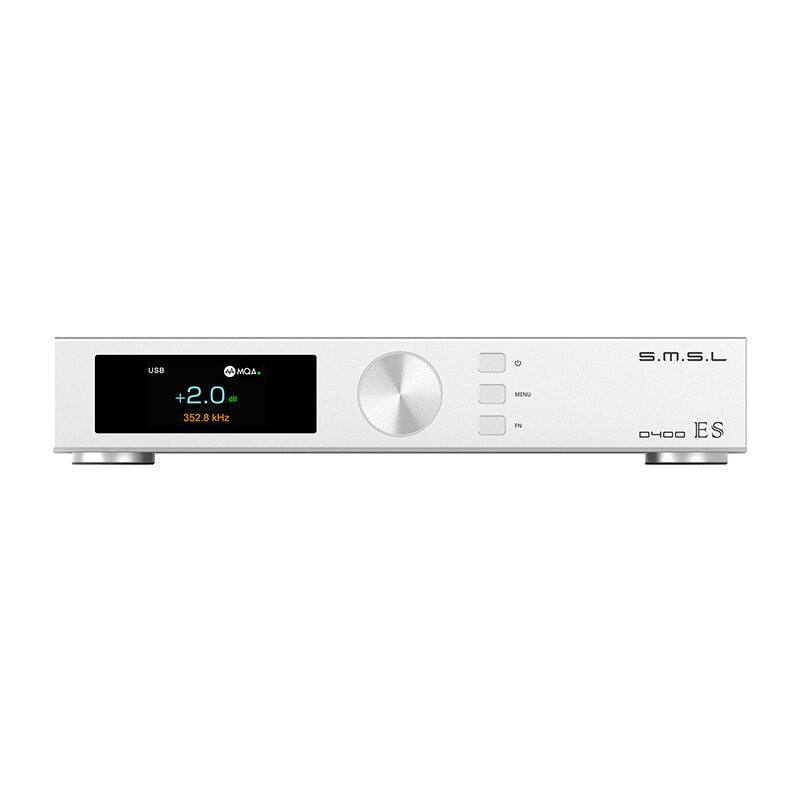

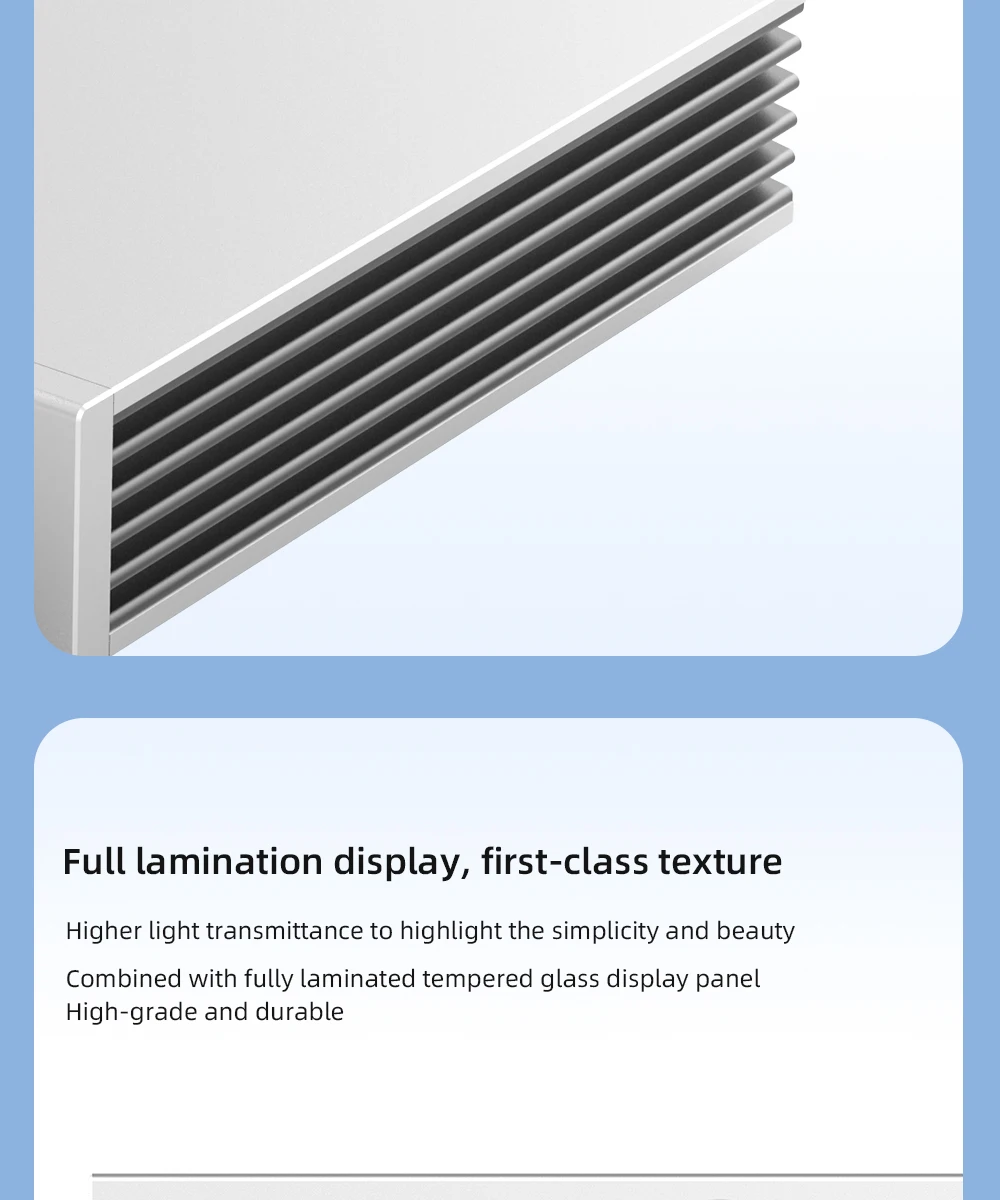

The DAC is housed in an all aluminum alloy shell, with tempered glass full fitting color IPS display and high quality gold plated input and output connection terminals. It is powered by multiple low-noise regulated power supplies to provide a stable, reliable, efficient and low-noise power supply system.
The SMSL D400ES is certified by Japan Audio Association (JAS) Hi Res and comes with a 365-day customer service guarantee. With its wide range of features and versatile inputs, the SMSL D400ES is the perfect DAC for any audio setup.

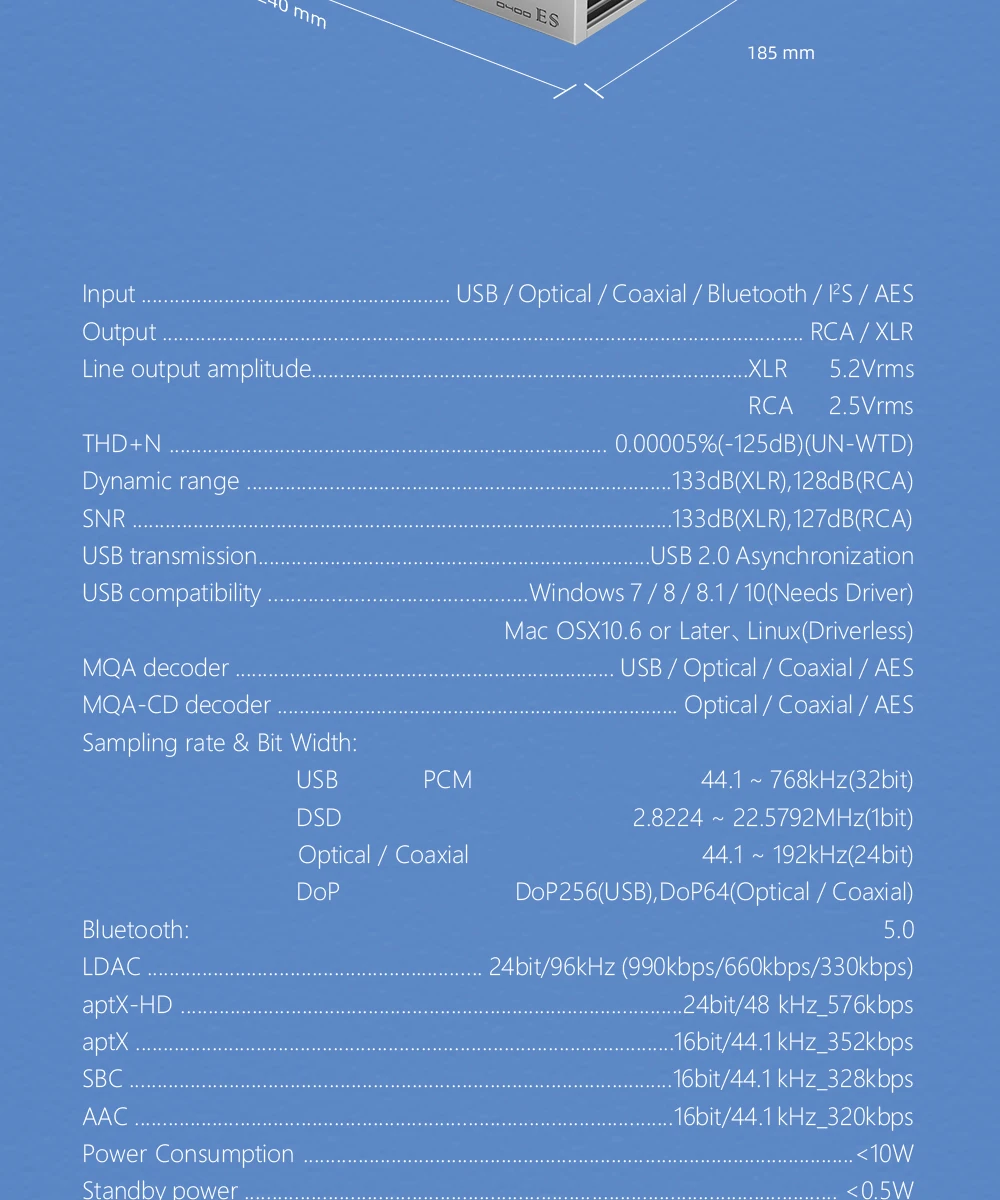

Specifications:

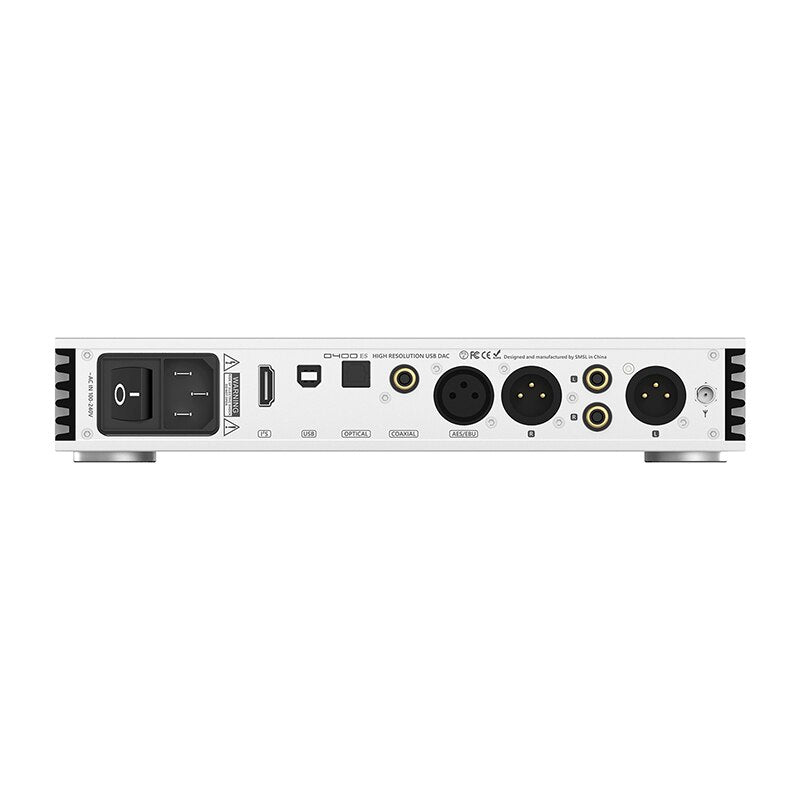

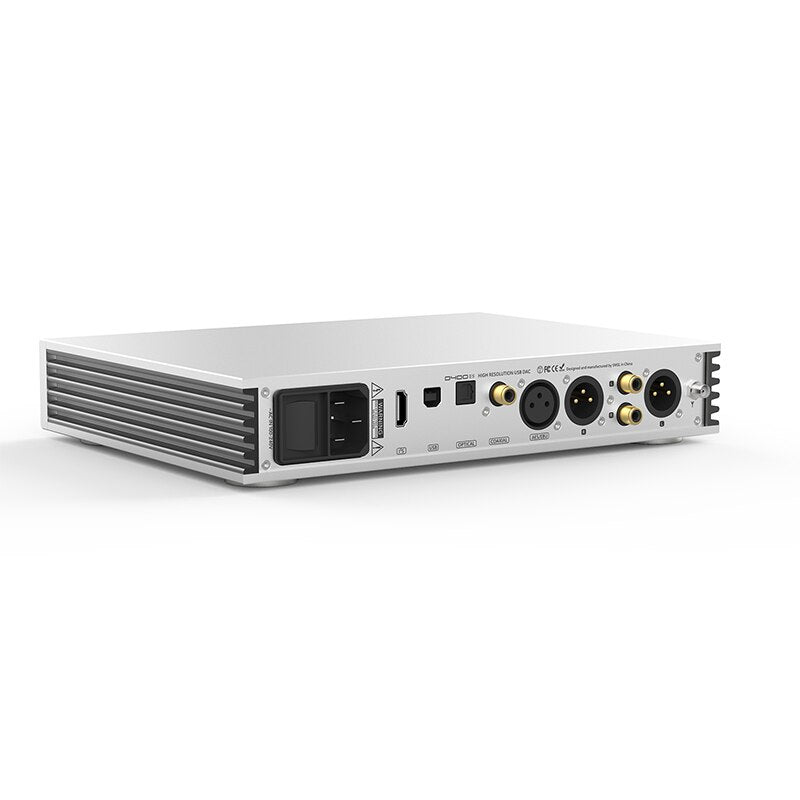

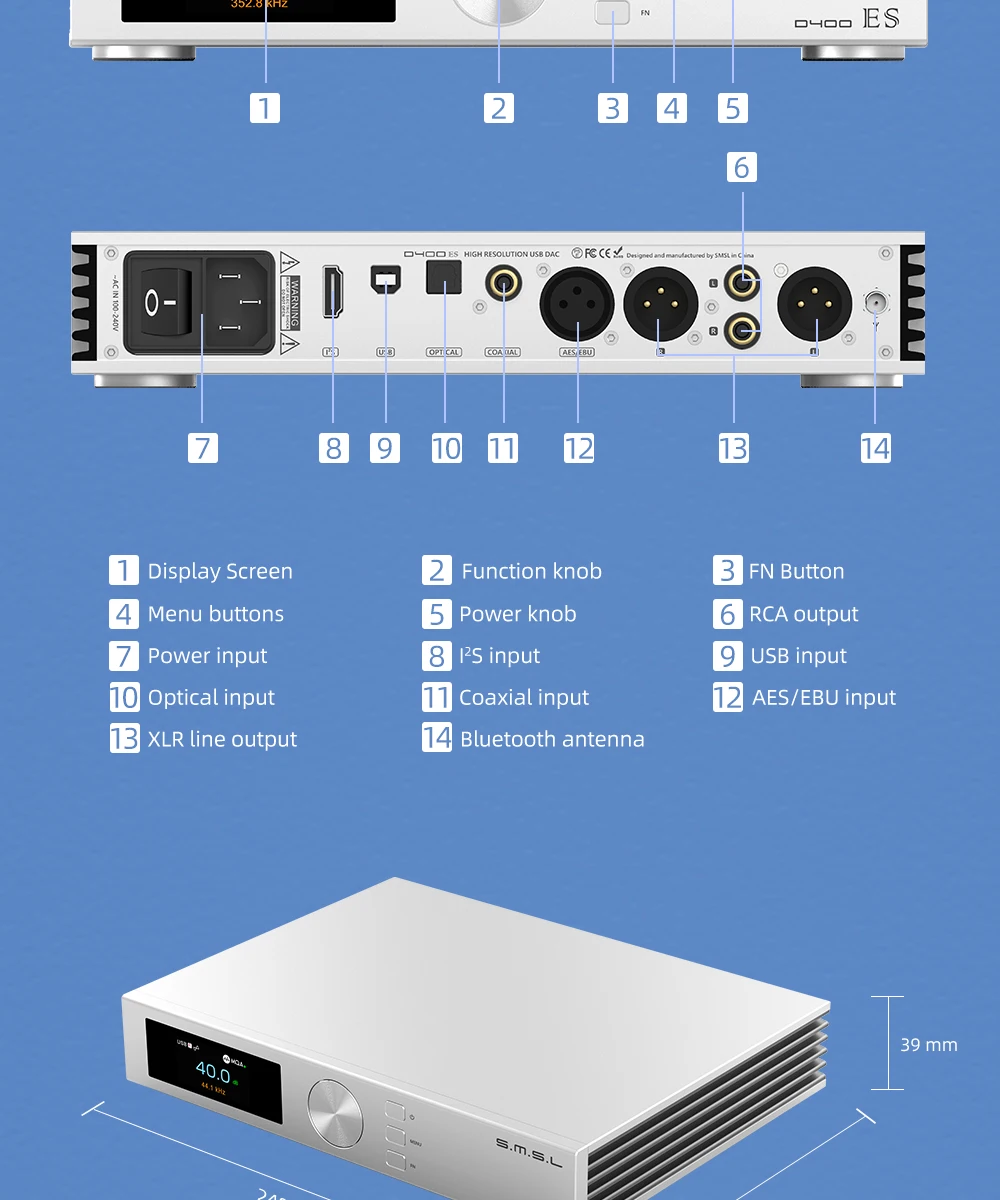

Input: USB/Optical/Coaxial/Bluetooth/IIS/AES
Output: RCA/XLR
Line output amplitude:XLR 5.2Vrms RCA 2.5Vrms
THD+N: 0.00005%(-125dB)(UN-WTD)

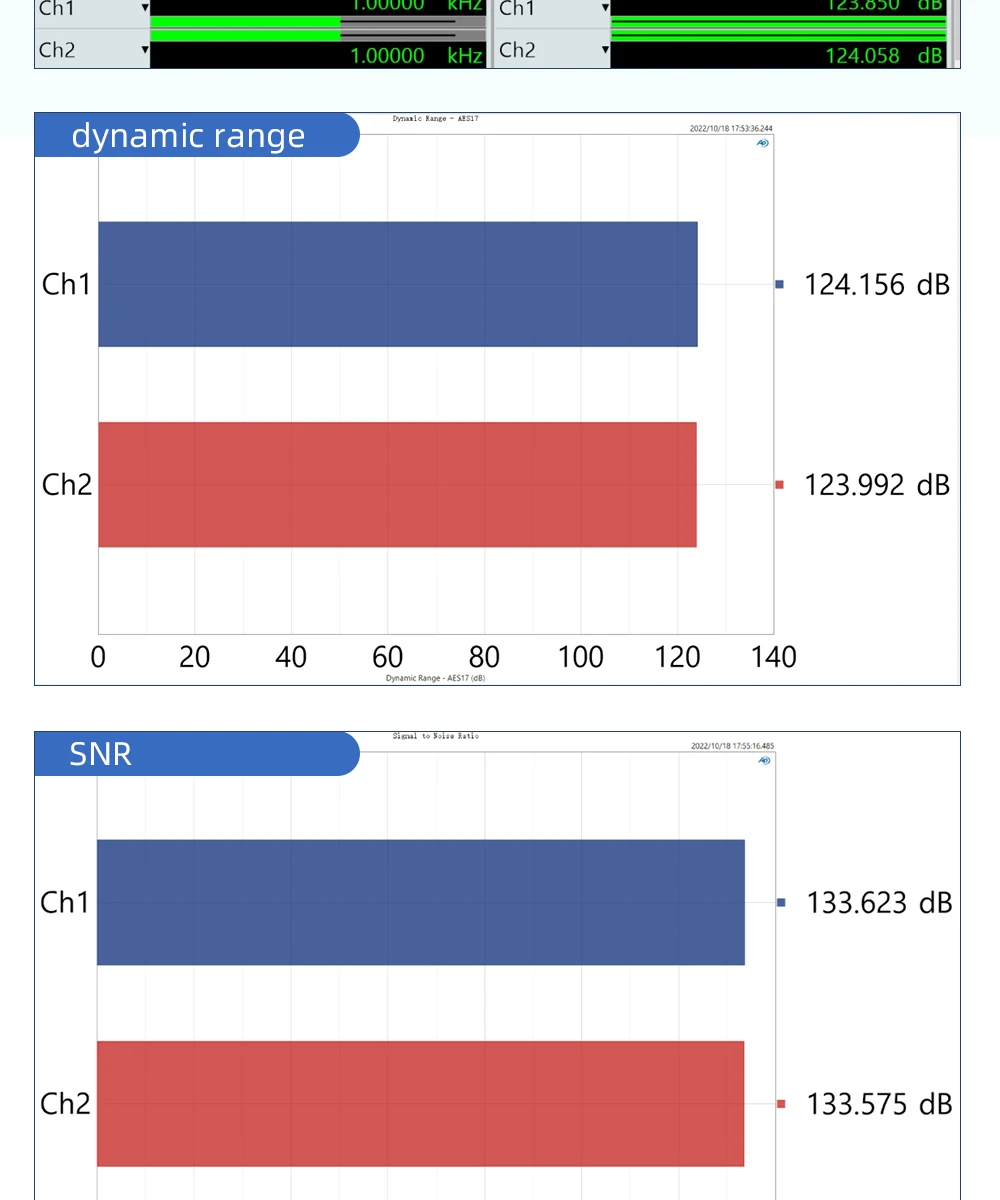

Dynamic range: 133dB(XLR),128dB(RCA)
SNR: 133dB(XLR),127dB(RCA)
USB transmission: USB 2.0 Asynchronization
USB compatibility:
Windows 7/8/8.1/10(Needs Driver)
Mac OSX10.6 or Later, Linux(Driverless)

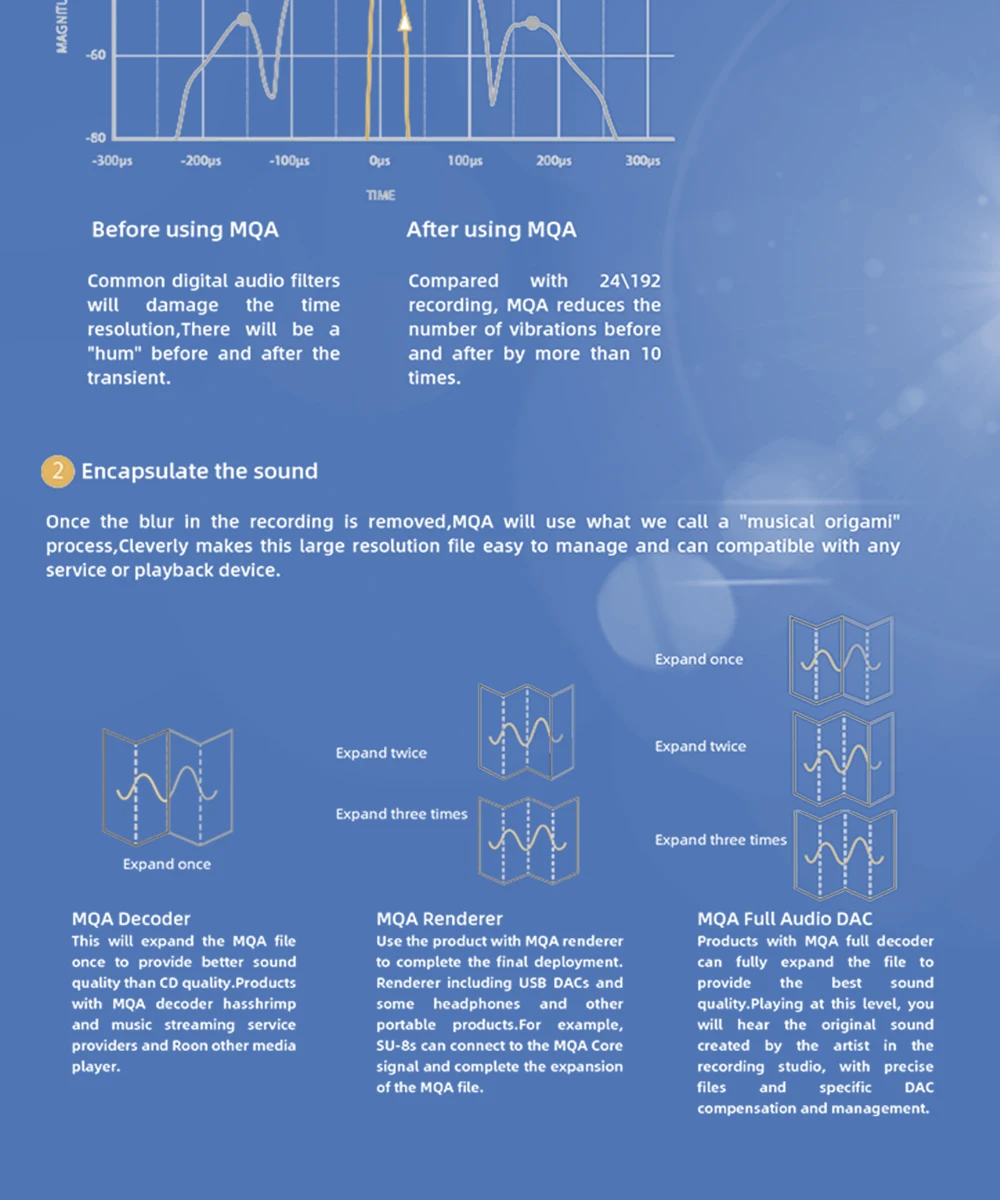

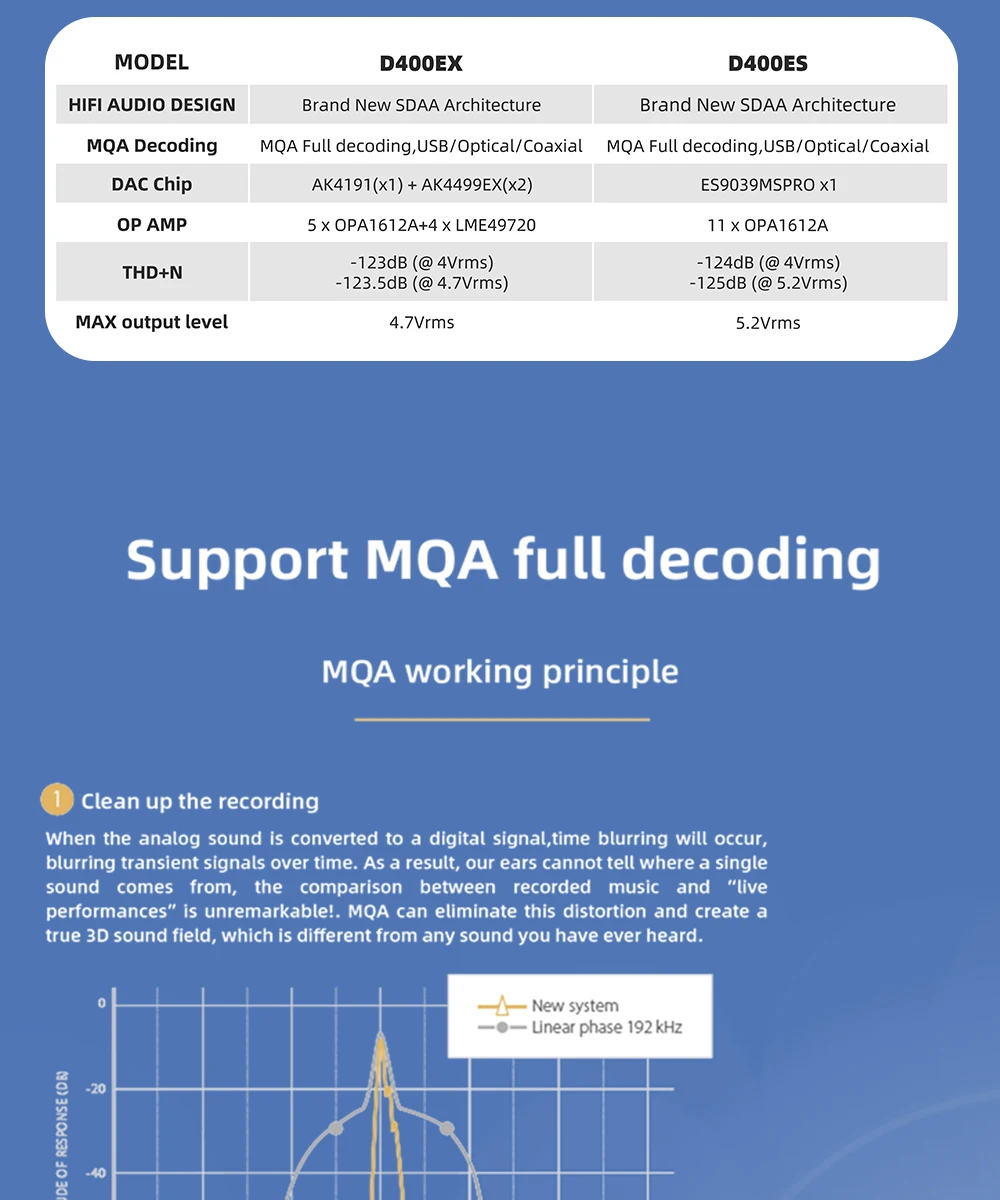

MQA decoder: USB/Optical/Coaxial/AES
MQA-CD decoder: Optical/Coaxial/AES
Sampling rate & Bit Width:
USB PCM 44.1~768kHz(32bit)
DSD 2.8224~22.5792MHz(1bit)
Optical/Coaxial 44.1~192kHz(24bit)
DoP DoP256(USB),DoP64(Optical/Coaxial)
Bluetooth 5.0
LDAC: 24bit/96kHz (990kbps/660kbps/330kbps)
aptX-HD: 24bit/48kHz_576kbps
aptX: 16bit/44.1kHz_352kbps
SBC: 16bit/44.1kHz_328kbps
AAC: 16bit/44.1kHz_320kbps
Power Consumption: < 10W
Standby power: <0.5W

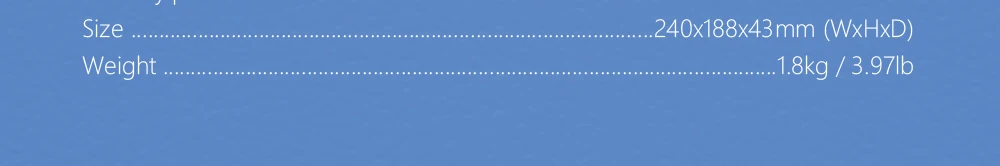

Size: 240x188x43mm (WxHxD)
Weight: 1.8kg/3.97Ib
The I2S pin should be relevant, HDMI port is not suitable for I2S input!
CD player needs MQA signal output with source code supported
