XDUOO DT-01 HiFi Turntable For Phone Convert USB to Coaxial/Optical/Aux

DT-01 HiFi Turntable for Phone

New Technology, New Life: Convert USB to Coaxial/Optical/AUX

The DT-01 HiFi Turntable allows you to transform your phone or tablet into a high-quality digital turntable, converting USB audio to coaxial, optical, or analog signals. This device provides an excellent way to use your mobile device as a source for high-end decoders, amplifiers, or active speakers, supporting up to PCM 32-Bit/384kHz and DSD256.

Colorful Indicator Lights for Real-Time Format Information

The DT-01 features colorful indicator lights that display the sampling rate of the current song, allowing you to see the audio format being played in real-time.

Charging Switch for Convenient Power Management

The DT-01 includes a charging switch that allows you to choose whether to charge your phone while the device is in use. This feature helps manage your phone's battery life, ensuring that you can continue to enjoy music without worrying about power.

High-Performance XMOS USB Chip

At the heart of the DT-01 is the renowned XMOS multi-core USB chip, known for its strong performance and asynchronous transmission mode. This chip ensures accurate and high-quality signal processing.

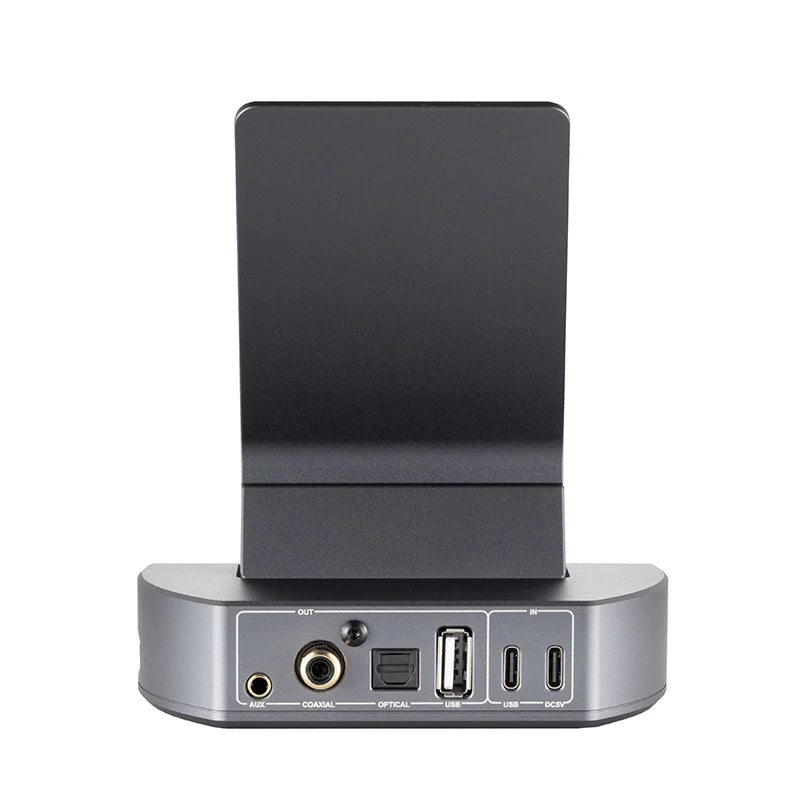

Coaxial/Optical Output for Versatile Connectivity

The DT-01 offers both coaxial and optical outputs, supporting up to PCM 24-Bit/192kHz and DSD64 (DoP). This makes it compatible with a wide range of audio decoding devices, providing flexible options for high-quality audio output.

Pre-Amplifier with Volume Control

The DT-01 features an AUX output with volume control, allowing you to adjust the output level directly from the device. This makes it easy to connect to power amplifiers or active speakers without needing to adjust the volume separately.

High-Quality DAC for Excellent Analog Output

Equipped with an ES9038Q2M DAC chip, the DT-01 provides superior analog signal output, delivering high-quality audio to your amplifier or active speakers.

Headphone Output for Private Listening

The DT-01 includes a headphone port with 350mW output power, capable of driving a wide range of headphones. This allows you to enjoy your music privately without disturbing others, especially at night.

USB Output: Efficient Power Management

The DT-01 draws power from its own power supply rather than from your phone, saving your phone's battery while delivering high-quality audio output.

Compact and Portable Design

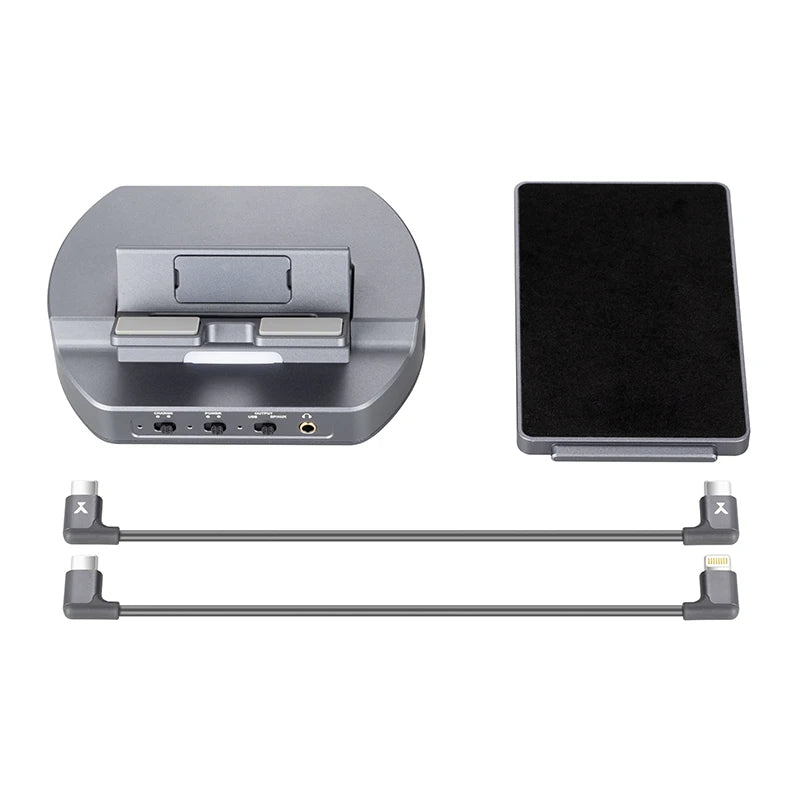

Designed for portability, the DT-01 is smaller than a typical A4 sheet of paper, making it easy to carry with you. The backup plate for the phone can be removed and stored in a bag, making it convenient for on-the-go use.

Robust Aluminum Alloy Shell

The DT-01's casing is made from high-strength aluminum alloy, providing a premium look and feel while effectively shielding against external noise and interference.

Technical Specifications

• Power In: DC 5V/2A
• Sampling Rate Display: Multi-color display
• Compliant OS: Windows, Linux, Mac OS X, iOS, Android
• Frequency Response:
  • USB: 20Hz~20kHz (±0.5dB)
  • AMP: 10Hz~80kHz (±0.5dB)
• Sampling Rate Support:
  • PCM: 16-32Bit/44.1-384kHz
  • DSD: DoP/Native, DSD64-256

Output Parameters

• Coaxial Output:
  • Sampling Rate: PCM 16-32Bit/44.1-384kHz, DSD64-256
  • Output Level: 0dBFS
  • THD+N: 0.000008%
• Optical Output:
  • Sampling Rate: PCM 16-24Bit/44.1-192kHz, DSD64 (DoP)
  • Output Level: 0dBFS
  • THD+N: 0.000008%
• AUX OUT:
  • Output Level: 2.0Vrms
  • THD+N: 0.009% @ 1kHz
  • S/N Ratio: 115dB
  • Crosstalk: ≥89dB
• Headphone Output:
  • Output Power: 350mW (32Ω load)
  • THD+N: 0.015% @ 1kHz
  • S/N Ratio: 113dB
  • Crosstalk: ≥65dB

General Specifications

• Size: 11.5 x 9.0 x 13.0 cm
• Weight: 0.4 kg
