XDUOO MU-605 HD Bluetooth 5.1 Dual DAC Chip Audio Receiver Converter

XDUOO MU-605 Bluetooth Audio Receiver Converter

High-Performance Bluetooth 5.1 Receiver

The XDUOO MU-605 is equipped with Bluetooth 5.1, offering seamless wireless connectivity with a wide range of devices. It supports high-definition Bluetooth audio formats including SBC, AAC, aptX, aptX_LL, aptX_HD, and LDAC, ensuring top-quality audio transmission for all your Bluetooth-enabled devices.

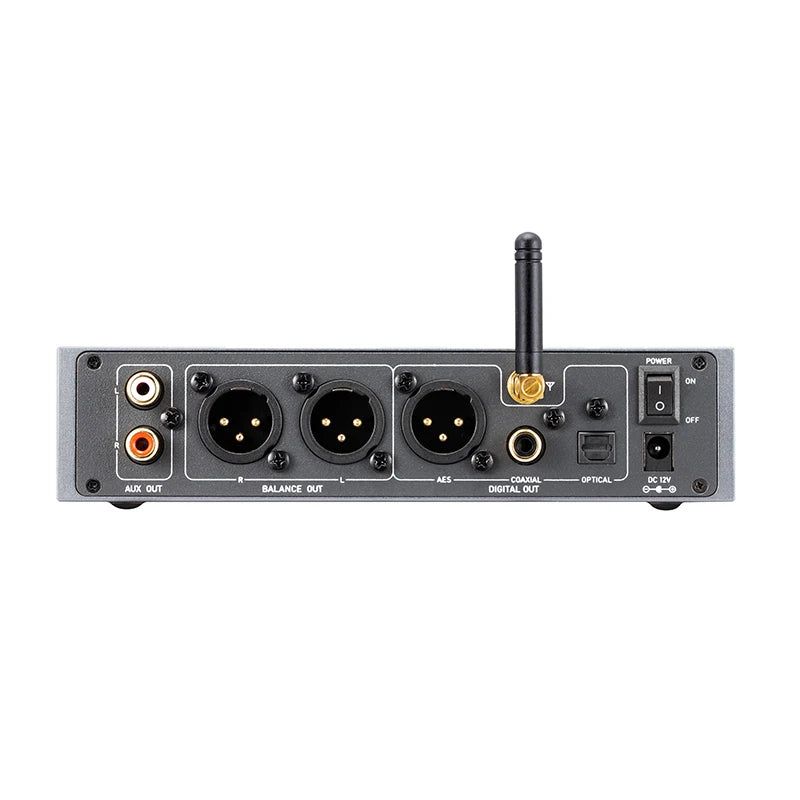

Versatile High-Definition Digital Output

This Bluetooth receiver supports AES, coaxial, and optical digital outputs, with up to PCM 24bit/96kHz. It can be easily connected to various audio decoders, providing a high-quality audio source that enhances your listening experience.

High-Quality XLR Balanced Output

With AUX and XLR balanced analog outputs, the MU-605 ensures high-quality balanced signal output. This enhances Signal-to-Noise Ratio (SNR), crosstalk, and THD+N, significantly improving the overall sound quality when connected to DACs or amplifiers.

Dual DAC Chips for Superior Sound

The MU-605 features two ES9018K2M DAC chips, delivering an exceptional audio experience with extremely high SNR and ultra-low THD+N. This dual-DAC configuration ensures precise and clear sound reproduction across all frequencies.

Audiophile-Grade Components

To ensure premium sound quality, the MU-605 uses enthusiast-grade Japanese NICHICON capacitors as the main filter capacitance. This choice of components contributes to the smooth and warm sound characteristic of high-end audio equipment.

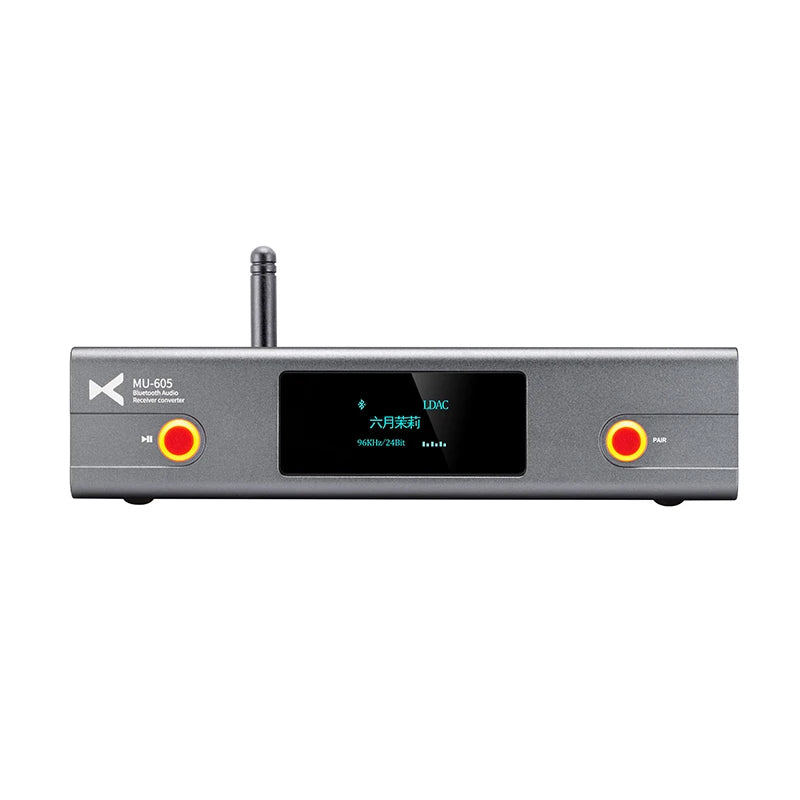

OLED Display for Easy Monitoring

The high-definition OLED display on the MU-605 allows you to easily check the decoding status and ensure that the device is operating in its optimal state at all times.

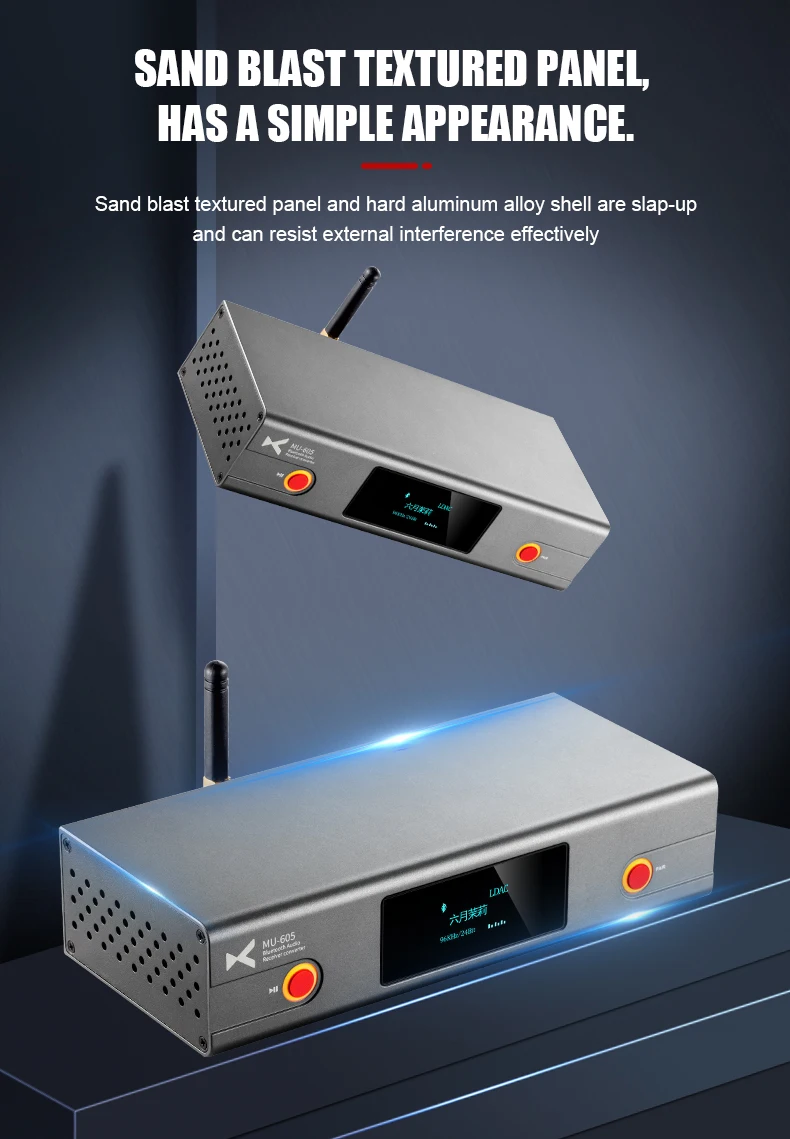

Elegant and Durable Design

The sandblasted textured panel and hard aluminum alloy shell not only provide a sophisticated and sleek appearance but also effectively protect the internal components from external interference, ensuring long-lasting performance.

Technical Specifications

• Power Input: DC12V/2A
• Bluetooth Version: 5.1
• Audio Codec: SBC, AAC, aptX, aptX_LL, aptX_HD, LDAC
• Connection Range: 10m (barrier-free)

Digital Output Parameters

• Optical Output Level: 0.5Vp-p
• Coaxial Output Level: 0.5Vp-p
• AES Output Level: 1Vp-p
• THD+N:
  • Optical: 0.0003%
  • Coaxial: 0.005%
  • AES: 0.003%

Analog Output Parameters

• Output Level: AUX OUT: 2V, BALANCE OUT: 4V
• THD+N:
  • AUX OUT: 0.005% @1kHz
  • BALANCE OUT: 0.003% @1kHz
• S/N Ratio: AUX OUT: 110dB, BALANCE OUT: 120dB
• Crosstalk: AUX OUT: 108dB, BALANCE OUT: 110dB

Dimensions and Weight

• Size: 12x7.8x4.0cm
• Weight: 0.35kg

Included Accessories

• AC Cable x1
• Adapter x1
• Bluetooth Antenna x1
• User Manual x1
• Warranty Card x1
