XDUOO XD05 PLUS 2 MQA Portable AK4493SEQ DAC and Headphone Amplifier

XDO5 Plus2 Portable High-Fidelity DAC and Headphone Amplifier

New Upgrade, New Experience

The XDO5 Plus2 offers a seamless high-fidelity audio experience in a portable form. Whether you're at home, at work, or on the go, you can enjoy high-quality music thanks to its powerful and versatile design.

High Output Power for Versatile Headphone Compatibility

With an output power of up to 1200mW (32Ω load), the XDO5 Plus2 rivals desktop headphone amplifiers, easily driving a wide range of headphones and ensuring powerful, clear audio reproduction.

Strong Decoding Ability

This DAC supports high-resolution audio formats, including DSD256 and PCM/DXD up to 32-bit/384kHz. It also features MQA rendering for studio-quality sound, ensuring that every detail in your music is preserved.

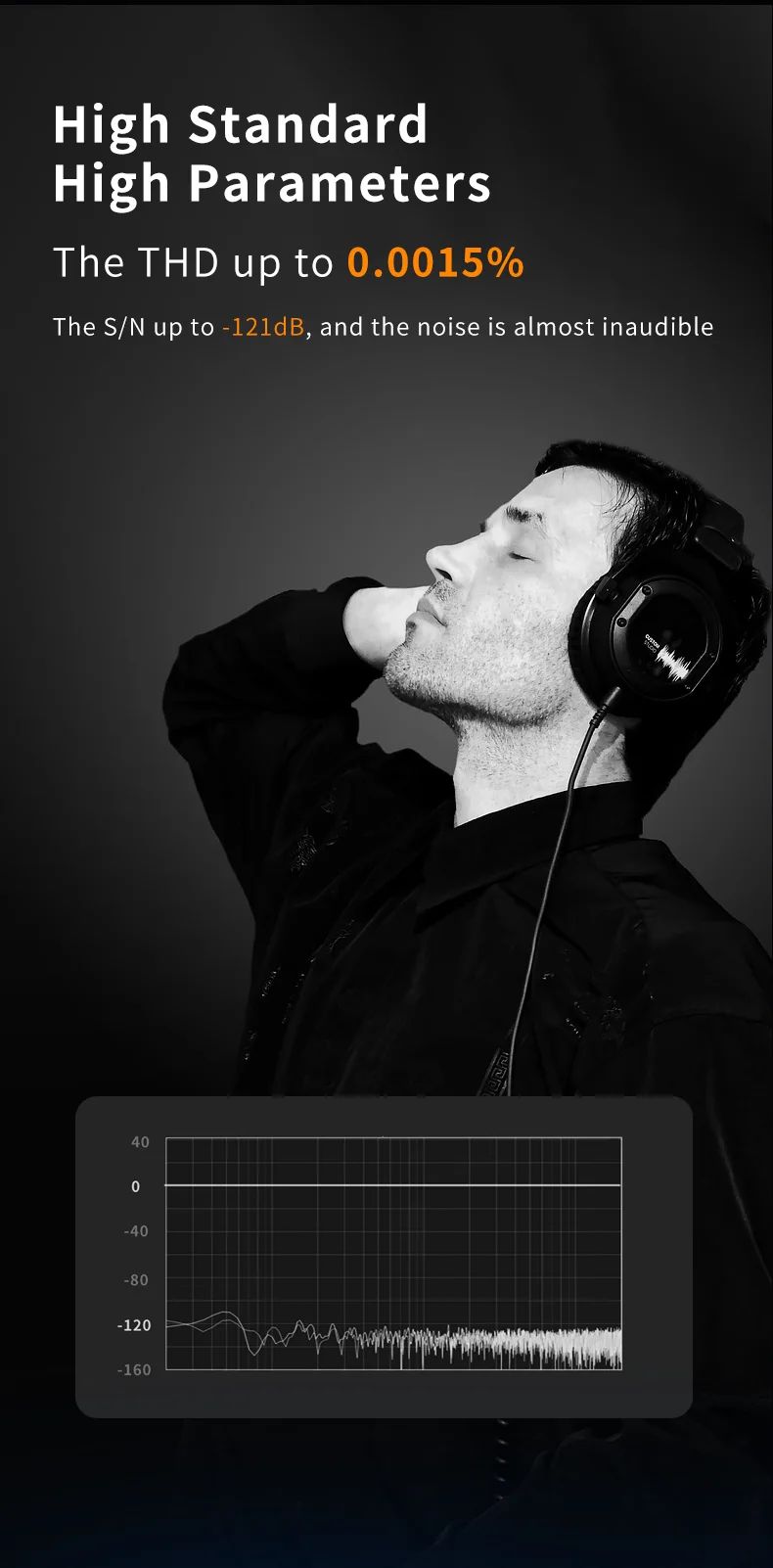

Exceptional Audio Performance

The XDO5 Plus2 boasts a THD of up to 0.0015% and an SNR of -121dB, providing a nearly inaudible noise floor and pristine sound clarity. This high standard ensures an immersive and accurate audio experience.

Customizable EQ for Multiple Scenarios

With preset EQ modes for Music, Movies, Games, and more, the XDO5 Plus2 allows you to easily adjust the sound to match your environment and preferences. Experience the reality and atmosphere brought by sound effects in different scenarios.

Multiple Audio Input Options

Whether you're connecting via USB, coaxial, optical, or Bluetooth, the XDO5 Plus2 supports high-definition audio input. It can connect to various devices like computers, mobile phones, tablets, Hi-Fi players, and more, offering flexibility and convenience.

HD Bluetooth Input

Enjoy the freedom of wireless audio with the XDO5 Plus2's HD Bluetooth input. It supports multiple Bluetooth formats, including SBC, AAC, aptX, aptX_LL, aptX_HD, and LDAC, ensuring high-quality sound even without cables.

Dual USB System for Gaming and Video

The XDO5 Plus2 supports UAC1.0 and UAC2.0 USB modes, making it compatible with gaming consoles like Switch, PS, and Xbox. It delivers detailed, precise audio with powerful bass, enhancing your gaming and video experience.

Digital Volume Control

The 99-level digital volume adjustment ensures balanced left and right channels at any volume level, allowing you to find the perfect setting for your headphones, regardless of their sensitivity.

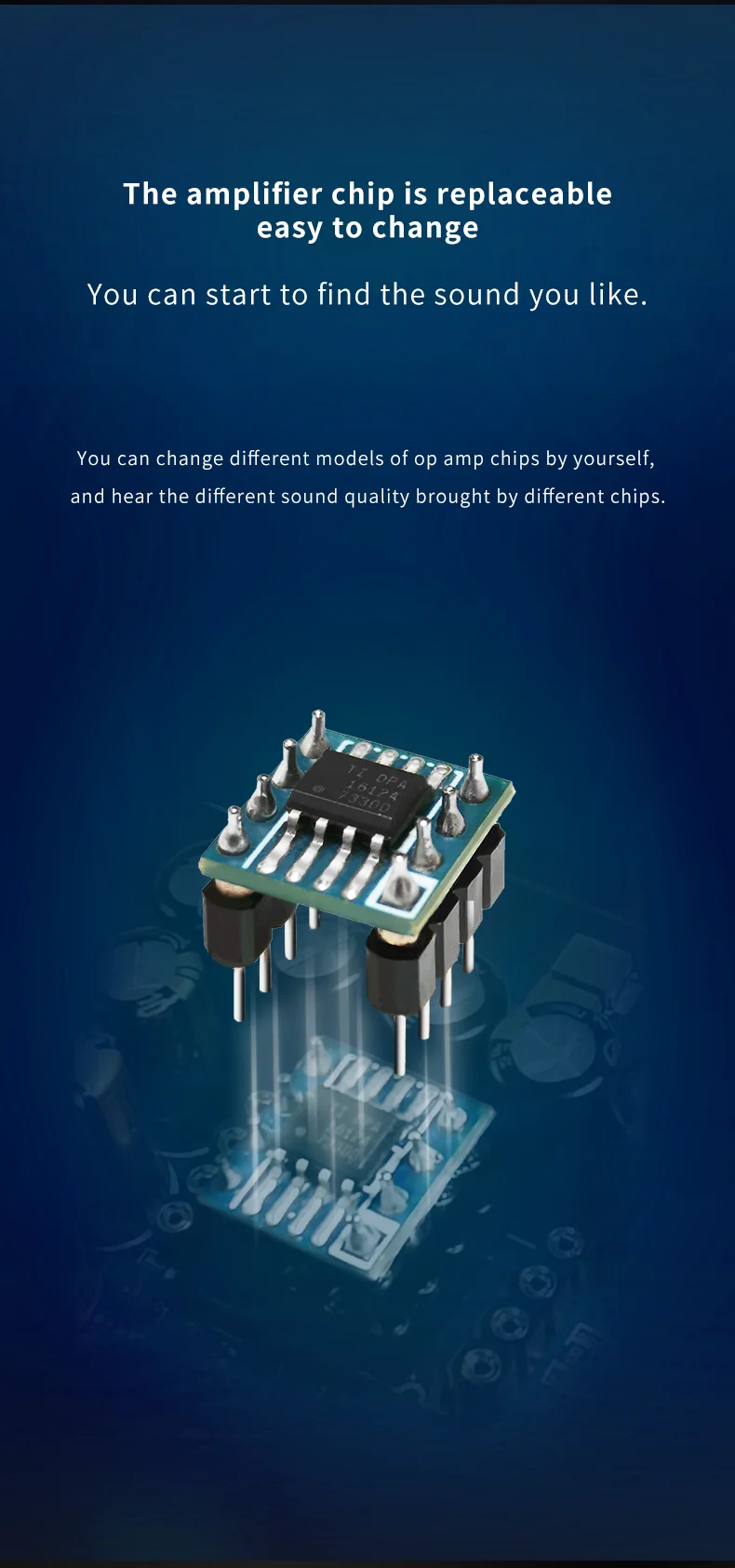

Replaceable Amplifier Chip

Customize your sound by replacing the amplifier chip. The XDO5 Plus2 allows you to easily swap out op-amp chips, letting you experiment with different sound signatures to find the one that suits you best.

Premium Components for High-Fidelity Sound

The XDO5 Plus2 is built with imported chips, professional-grade power chips, and high-end capacitors like NICHICON and ELNA. This careful selection of components ensures high-fidelity sound quality with smooth, warm audio and excellent high-frequency performance.

Technical Specifications

• Battery: 3.8V/5000mAh
• Screen: 0.91-inch OLED
• Compliant OS: Windows, Linux, Mac OS X, iOS, Android
• Frequency Response:
  • USB/SPDIF: 20Hz~20kHz (±0.5dB)
  • AMP: 10Hz~80kHz (±0.5dB)
• Sampling Rate Support:
  • USB: PCM 16-32bit / 44.1-384kHz, DSD64-256 (DOP/Native), MQA Rendering
  • Optical/Coaxial: PCM 16-24bit / 44.1-192kHz, DSD64 (DOP)
• Bluetooth Formats: AAC, SBC, aptX, aptX_LL, aptX_HD, LDAC
• Gain: +0dB/3dB/6dB
• Headphone Output Parameters:
  • Output Power: 1200mW (32Ω load)
  • THD+N: 0.0015% @1kHz
  • S/N: 121dB
  • Crosstalk: ≥76dB
• AUX Output Parameters:
  • Output Level: 2.0Vrms
  • THD+N: 0.0009% @1kHz
  • S/N: 122dB
  • Crosstalk: ≥109dB
• Battery Life:
  • USB IN: ≥9H
  • SPDIF IN: ≥15H
  • BT IN: ≥18H
• Charging Time: ≤3 hours (fast charging), ≤5 hours (slow charging)
• Size: 13.0 x 7.5 x 2.2 cm
• Weight: 0.29kg

Included Accessories

• AC Cable x1
• Adapter x1
• USB Cable x1
• User Manual x1
• Warranty Card x1
