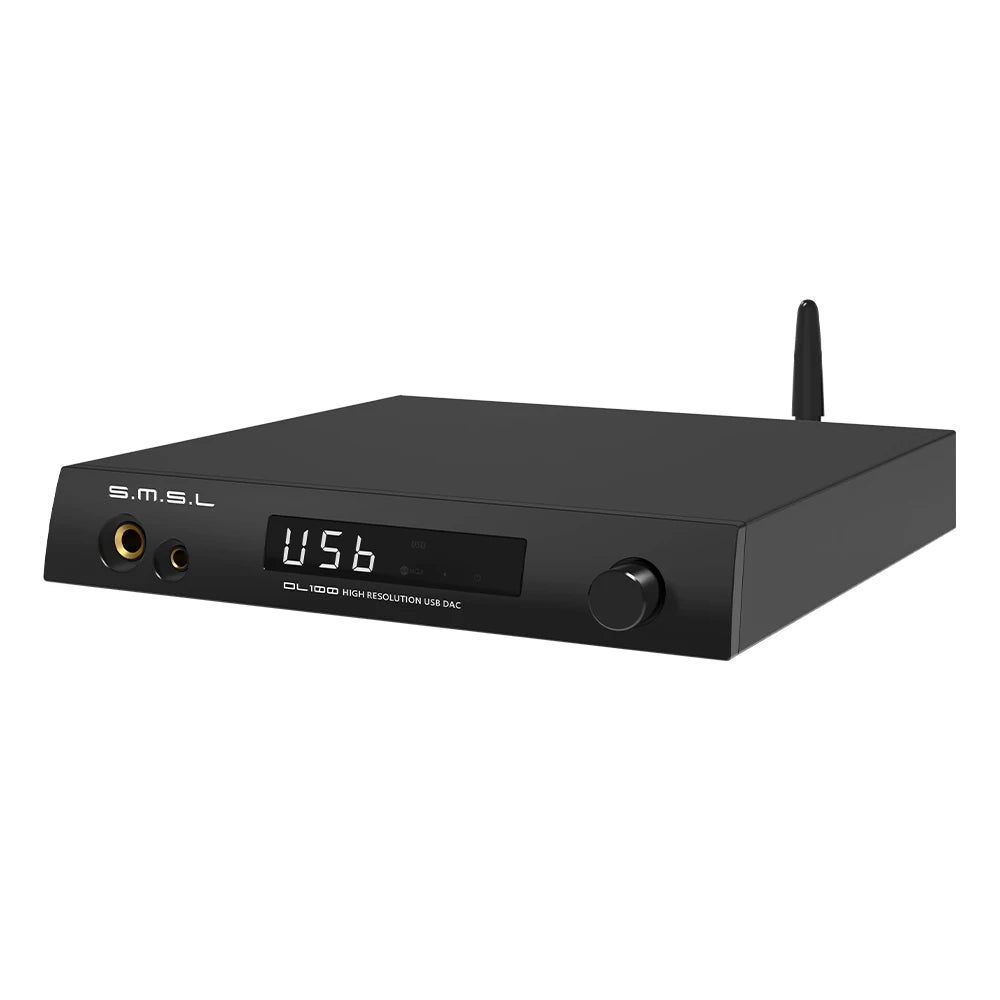

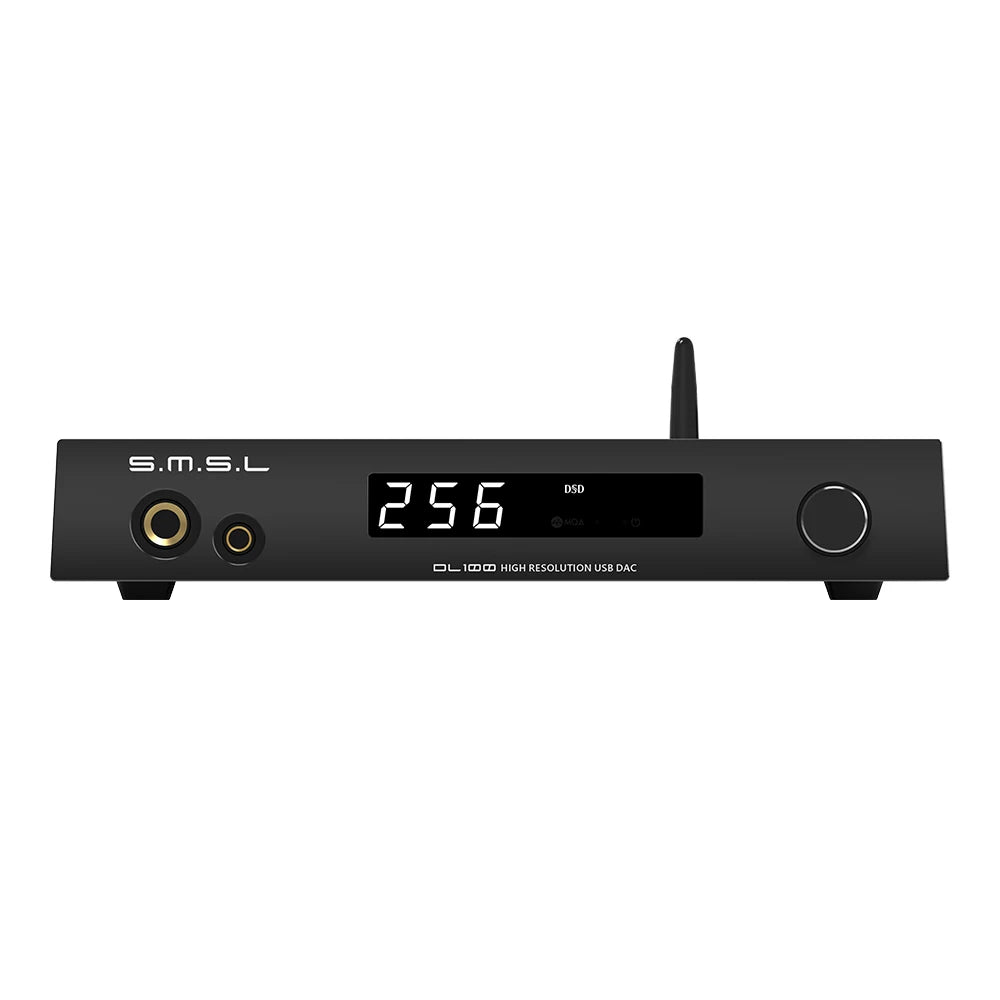

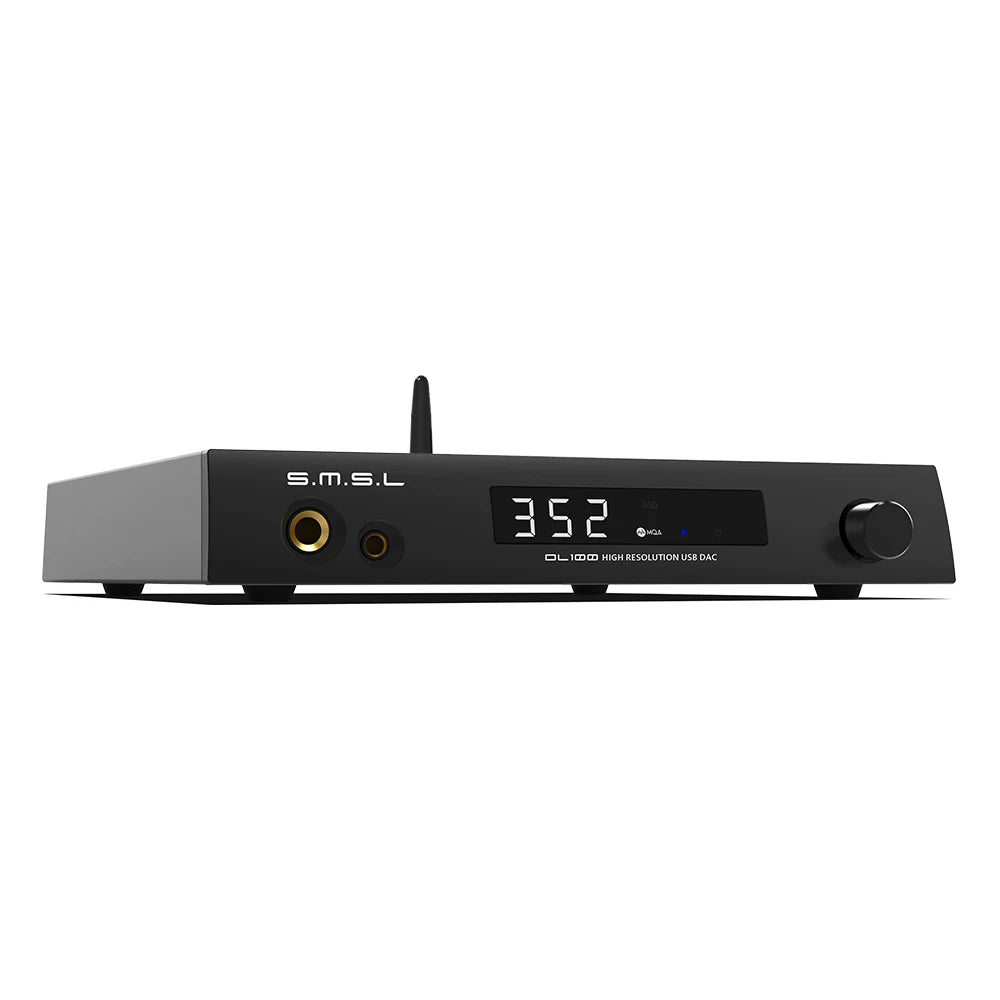

SMSL DL100 HDMI DAC CS43131*4 BT5.1 Home Movies Games

SMSL DL100 HDMI DAC CS43131*4 BT5.1 Home Movies Games

$179.99 USD
$179.99 USD
Sale Sold out
Shipping calculated at checkout.

20 in stock

DL100 Audio DAC & Headphone Amplifier

Features

  • Four-chip decoding for superior sound: Capable of directly sampling 32bit/768kHz PCM digital audio and supporting DSD256 native DSD playback without conversion.
  • Independent headphone amplification circuitry: Self-developed circuit for excellent performance, with output power increased by about 16 times at 300Ω.
  • 5 types of PCM filters: Acts on high-frequency signals after about 20kHz for better sound conversion.
  • USB Dual Mode 2.0/1.1: Switchable modes to support high sample rate audio files up to 768kHz/32bit or driver-free up to 96kHz/16bit.
  • Qualcomm Bluetooth chip: Supports LDAC, apt-X HD for improved wireless signal stability and transmission quality.

Specifications

  • Chipset: 4x CS43131, 3x high-end dual op amp OPA1612a.
  • Output Power: 3.0W×2 @ 16Ω, 1.5W×2 @ 32Ω.
  • Supported Formats: PCM up to 32bit/768kHz, DSD up to DSD256.
  • Bluetooth: LDAC, apt-X HD.

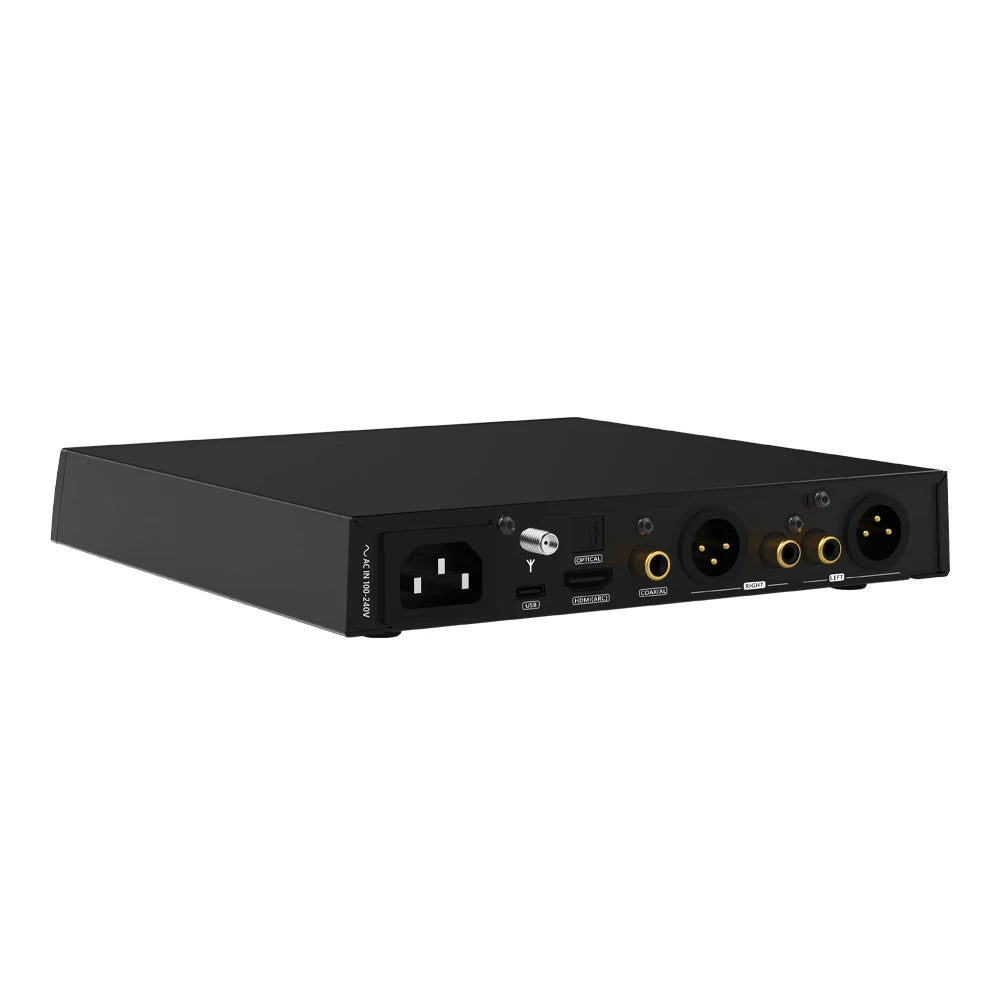

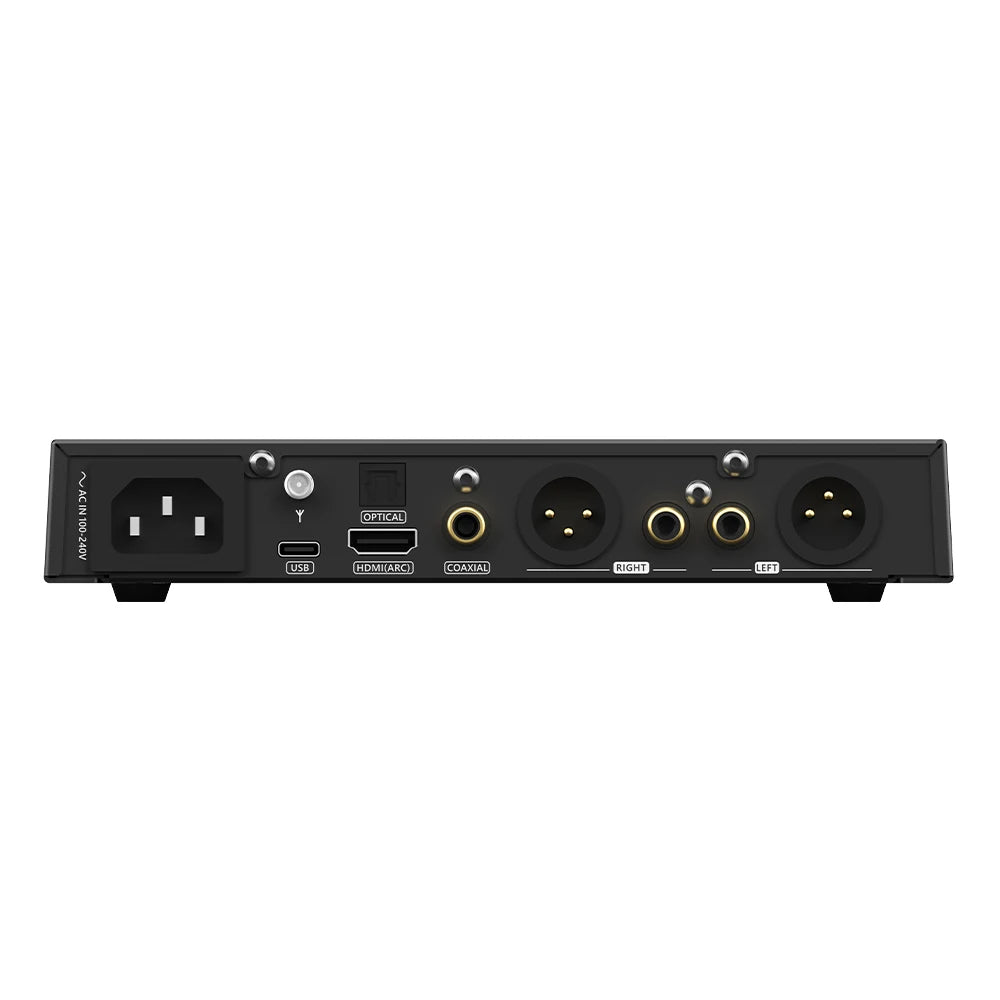

  • Inputs: HDMI(ARC), USB Dual Mode 2.0/1.1, Optical, Coaxial.

Performance

  • Distortion: As low as 0.00009%.
  • SNR (Balanced Output): 132dB.
  • Dynamic Range: 132dB.

Design

The DL100 features a robust design with high-quality relays and a non-impact sound design. The headphone amplifier circuit adopts self-developed technology, offering high power output and excellent audio quality. The inclusion of high-end components ensures minimal interference and optimal performance.

Connectivity

  • HDMI(ARC): Can be decoded for TV.
  • USB Dual Mode: Supports a variety of devices, including game consoles, TVs, Androids, and more.
  • Bluetooth: With an external antenna for improved signal stability and quality.





View full details

Product FAQ

How long is the warranty period?

The warranty period for new products is one year, and two years in Europe.
[Slight Cosmetic Damage offer]The warranty period for products is one month.

Where to ship from?

The majority of products ship from Mainland China, while a
portion of orders may ship from European or US warehouses. Customers
cannot select their shipment origin.

Regarding import duties, VAT, consumption taxes, and other applicable fees.

Customers may be subject to customs charges. The recipient shall
cooperate with customs clearance procedures. All resulting losses from
refusal to cooperate shall be borne by the recipient.
