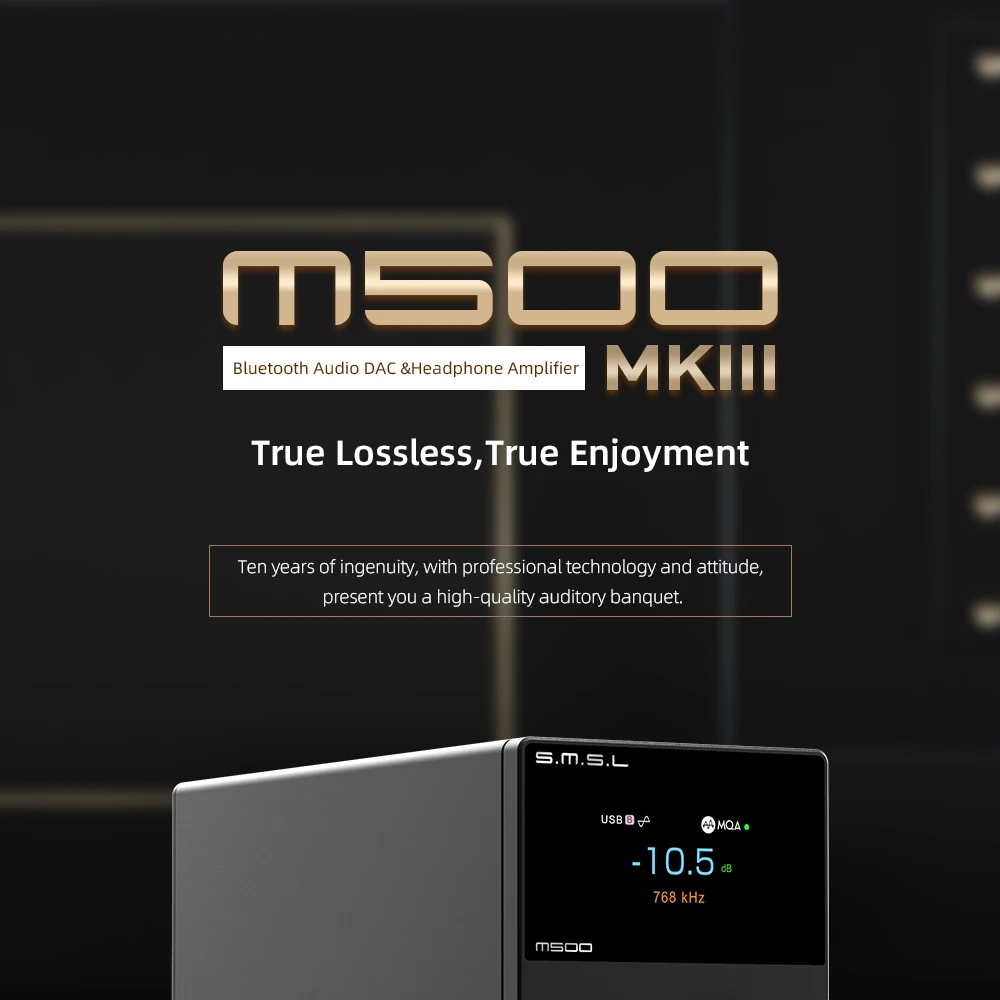

SMSL M500 MKIII Hi Res Audio DAC & Headphone Amplifier ES9038PRO

SMSL M500 MKIII Hi Res Audio DAC & Headphone Amplifier ES9038PRO OPA1612A MQA-CD DSD512 XU316 Bluetooth With Remote Control

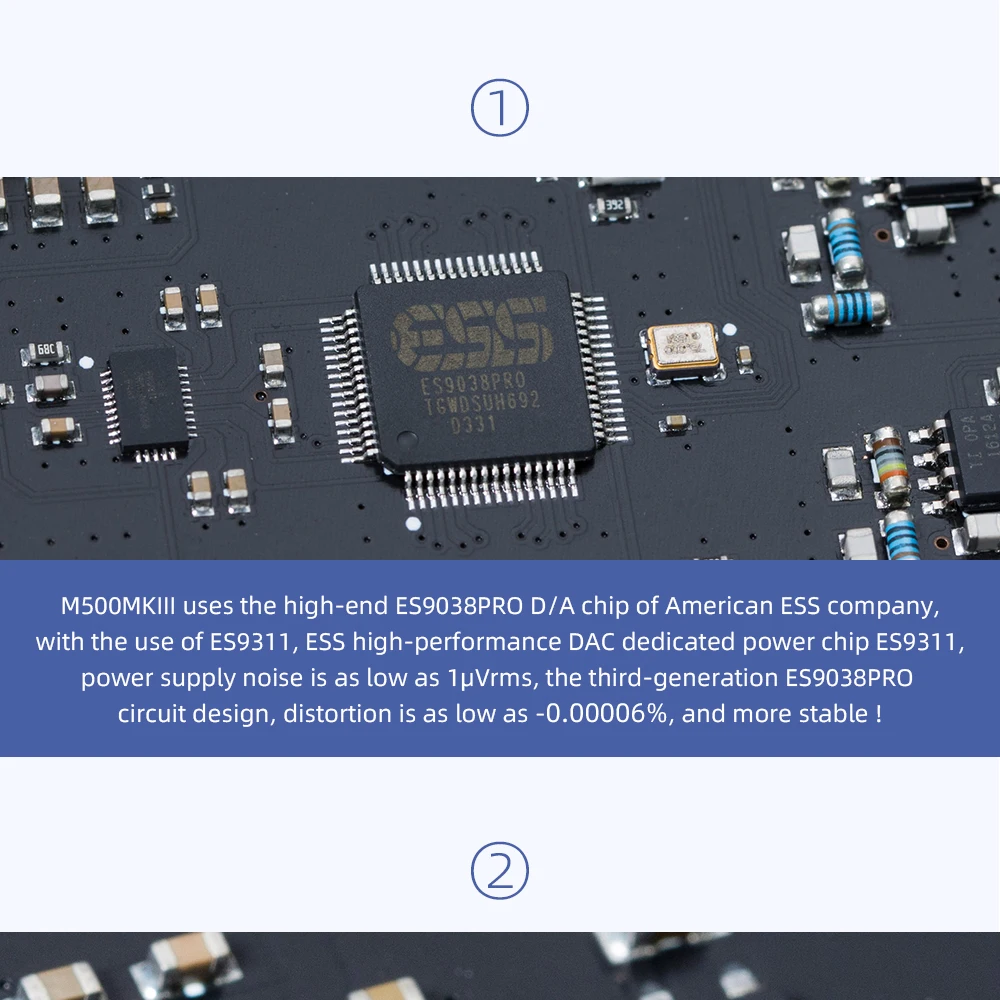

• SMSL M500 MKIII using top performance D/A chip ES9038PRO from ESS Technology;

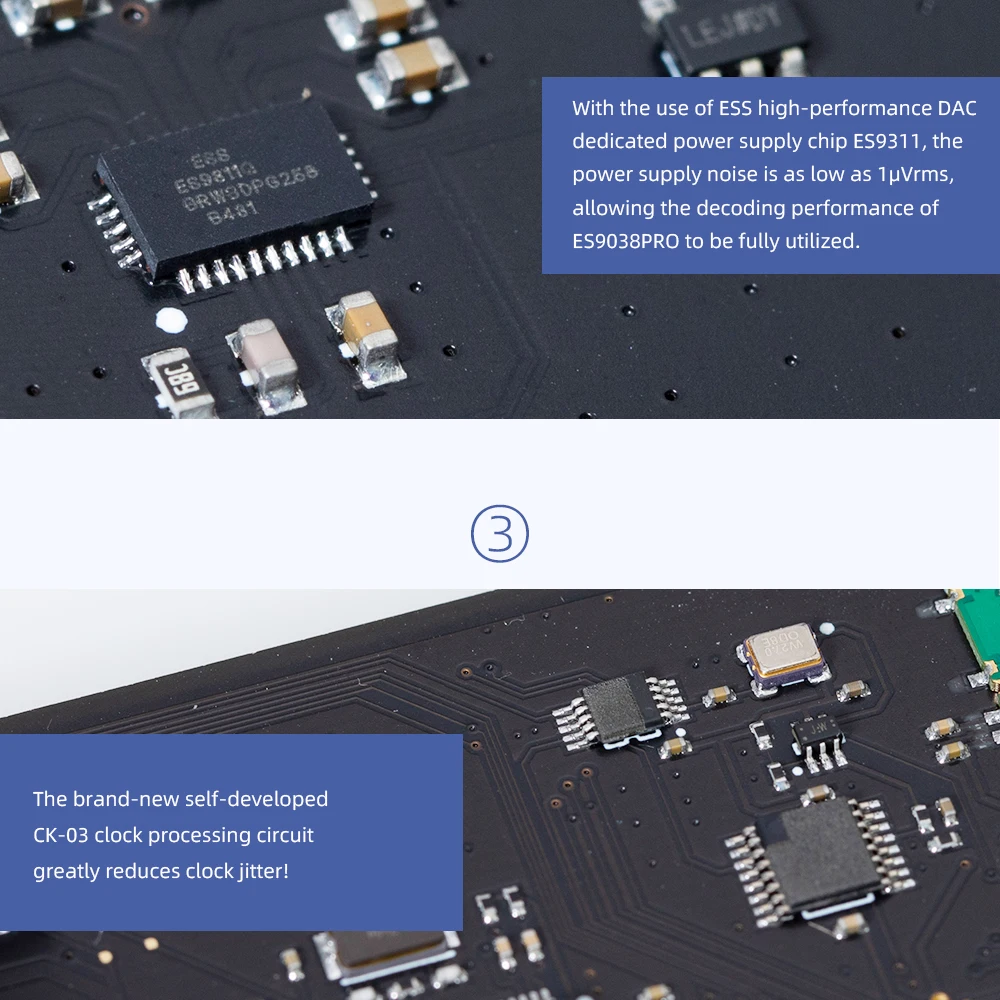

• The high-performance power supply chip ES9311, the noise of ES9311 is as low as 1uVrms;
• The 3rd ES9038PRO circuit design has a surprisingly low distortion of 0.00006% and is more stable;

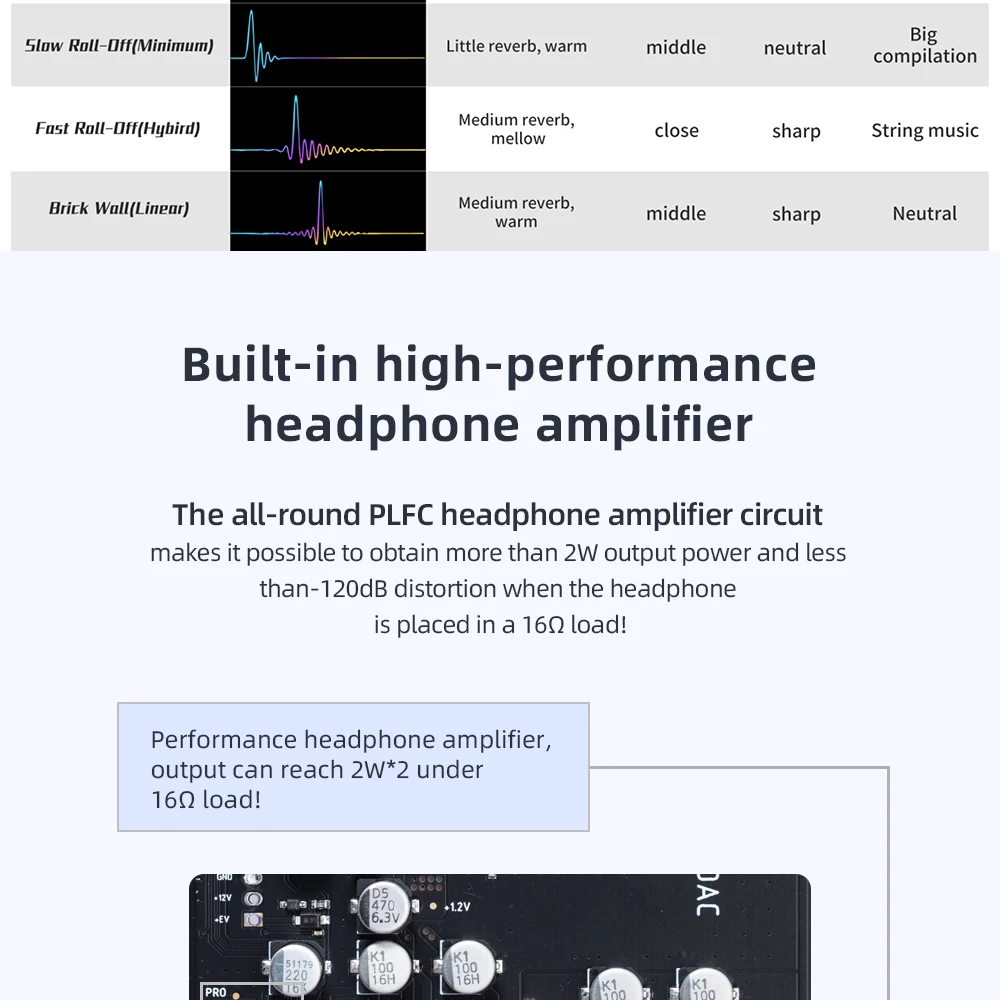

• The new PLFC headphone amplifier circuit enables the headphone to obtain more than 2W output power and less than 0.0001% distortion under 16 Ω load!
• The new self-developed CK-03 clock processing circuit greatly reduces clock jitter;

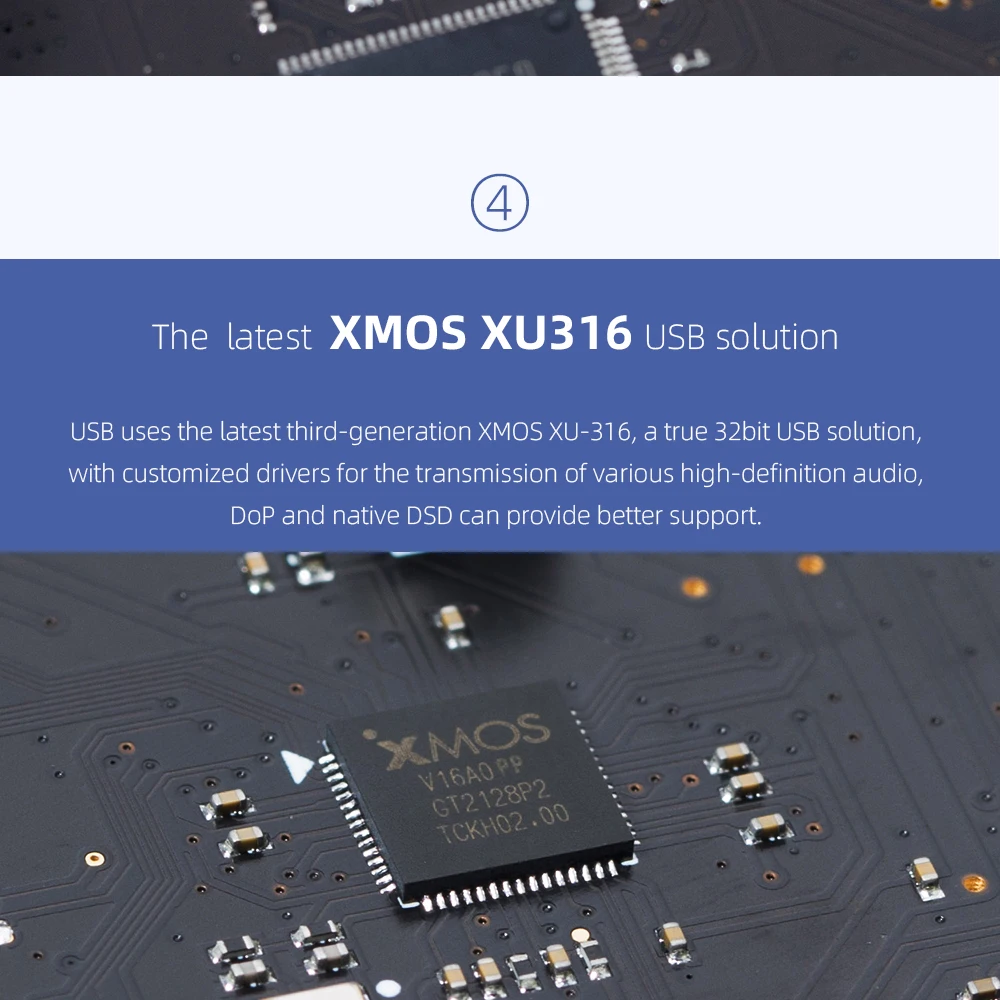

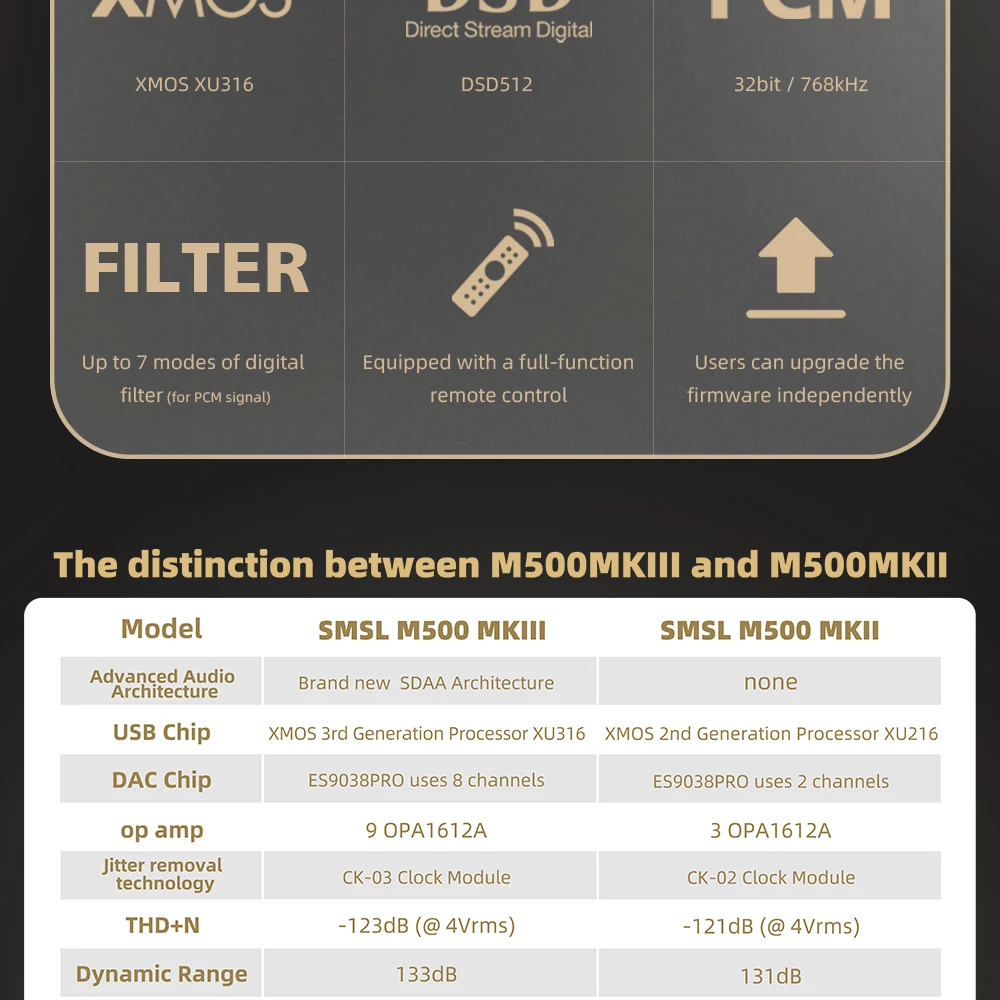

• XMOS XU-316, true 32bit audio processing, supports DoP and Native DSD, and reaches 32bit/768kHz and DSD512;
• USB, optical, coaxial support DSD , coaxial and optical support DOP64;

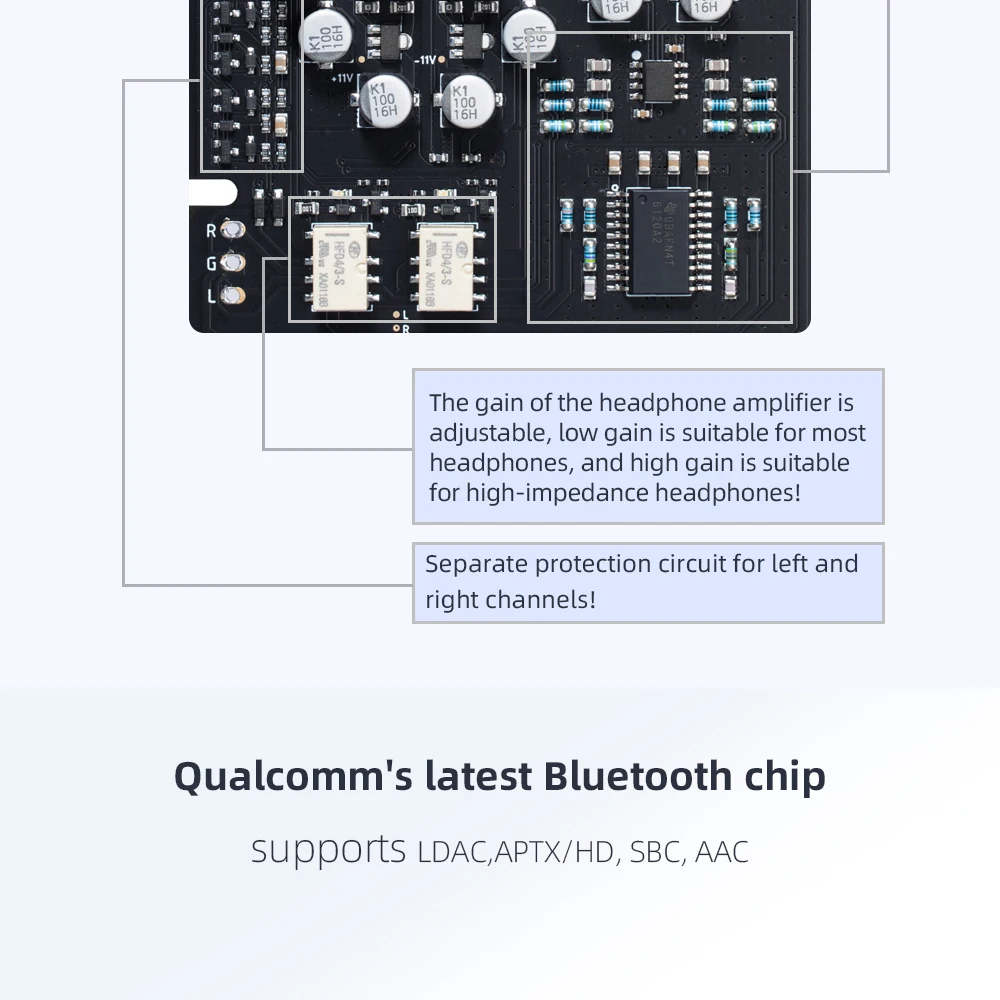

• Qualcomm's latest Bluetooth chip supports LDAC 24bit/96kHz, APTX/HD, SBC, AAC;
• Specially designed discrete component linear regulated power supply and multiple low noise regulated power supplies to provide low noise power for analog circuits.

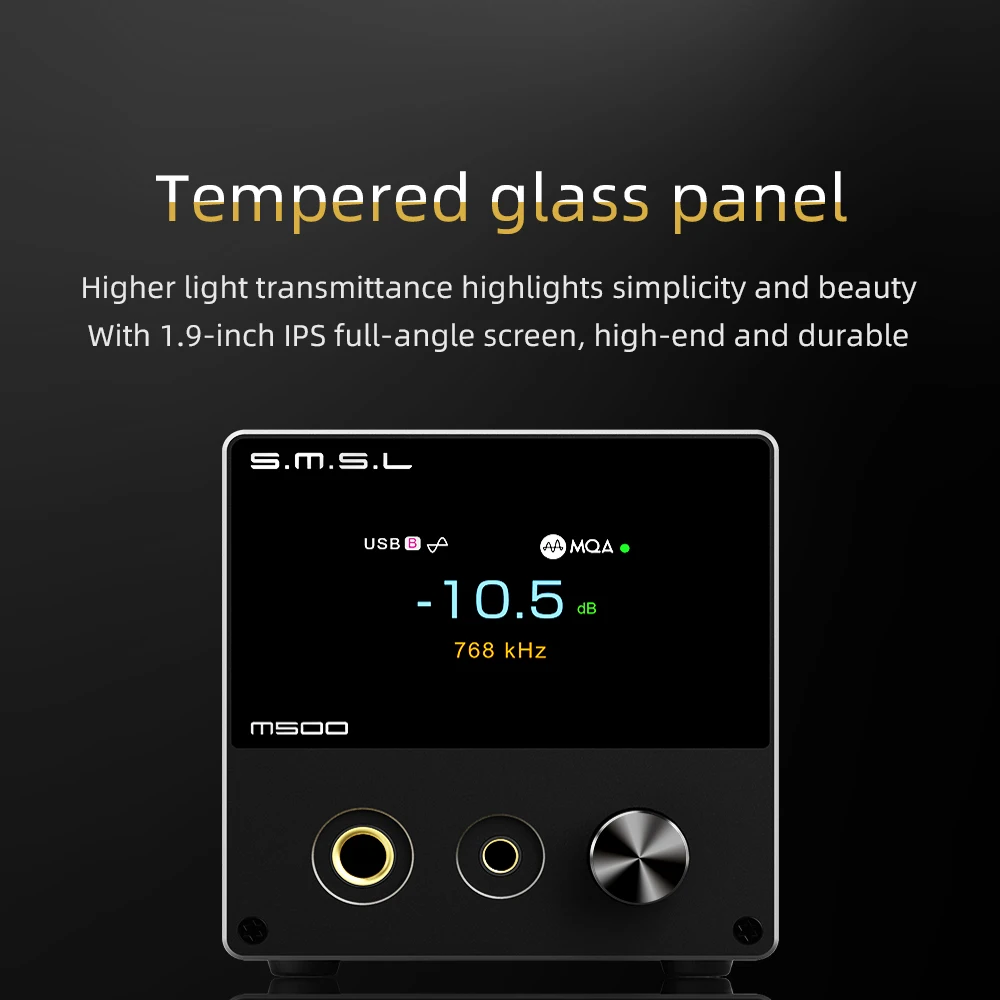

• Use tempered glass display panel for higher light transmission and longer service life;
• Built-in shielded, low noise power supply processing, while improving power efficiency,lower power consumption;
• High quality gold-plated input and output jacks;
• 9 high-end dual op-amps OPA1612 and a lot of audio grade components are used;
• 1.9 inch TFT LCD display;
• JAS Hi-Res certification;

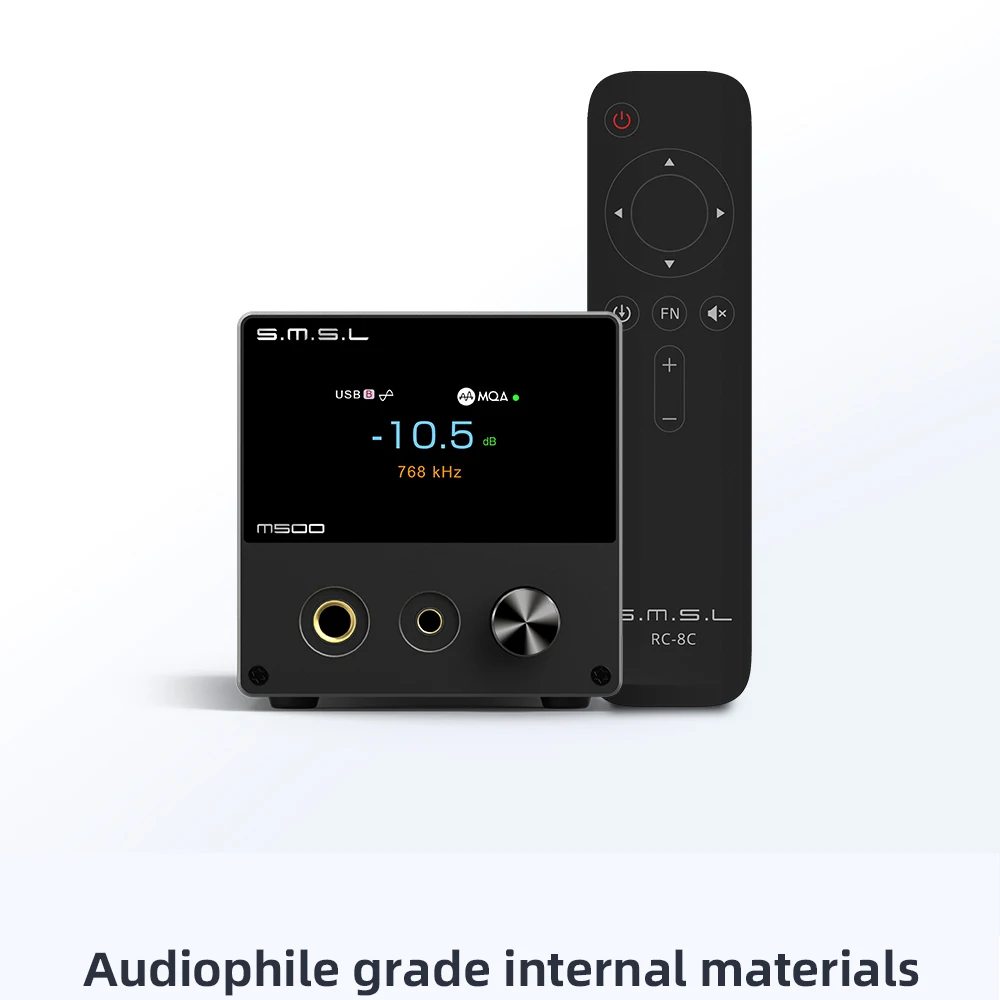

• Equipped with remote control and full-function remote control.

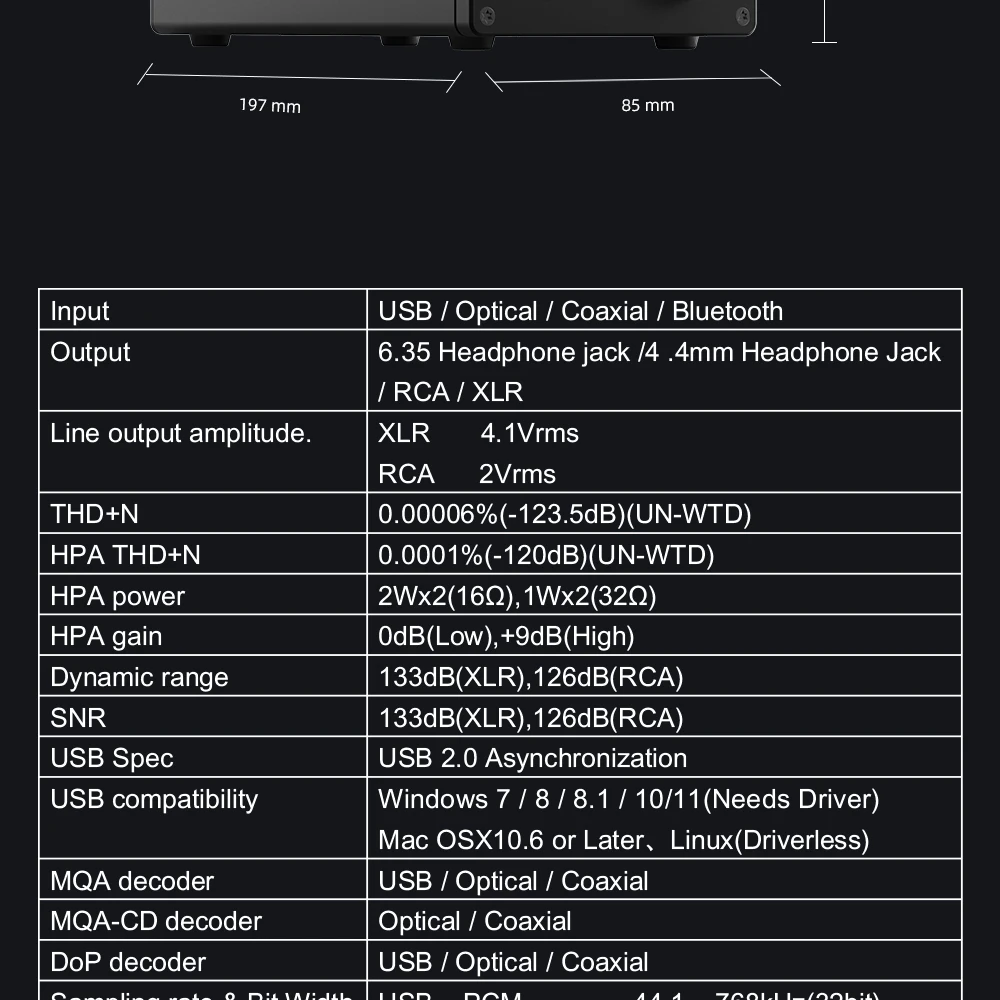

Specifications

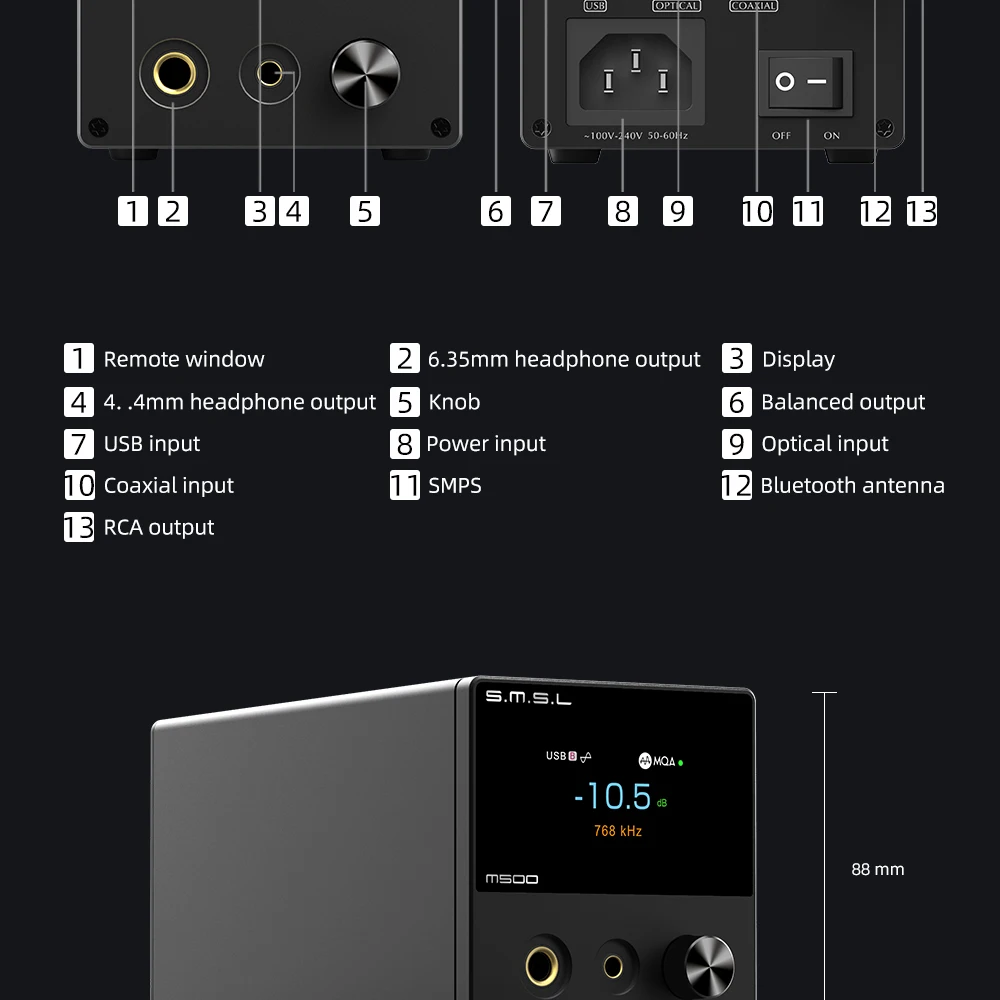

• Input ........................................................ USB / Optical / Coaxial / Bluetooth
• Output .................6.35 Headphone jack /4 .4mm Headphone Jack / RCA / XLR
• Line output amplitude..............................................................XLR 4.1Vrms
• RCA 2Vrms

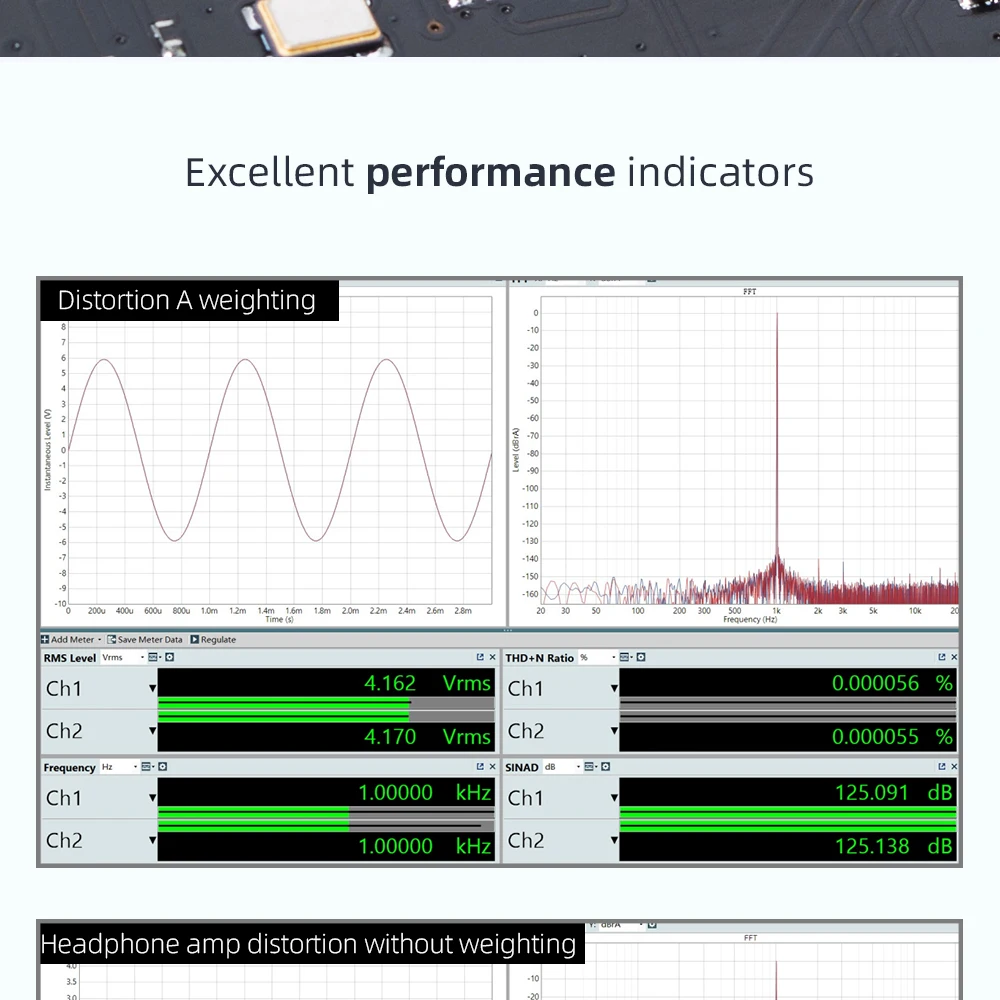

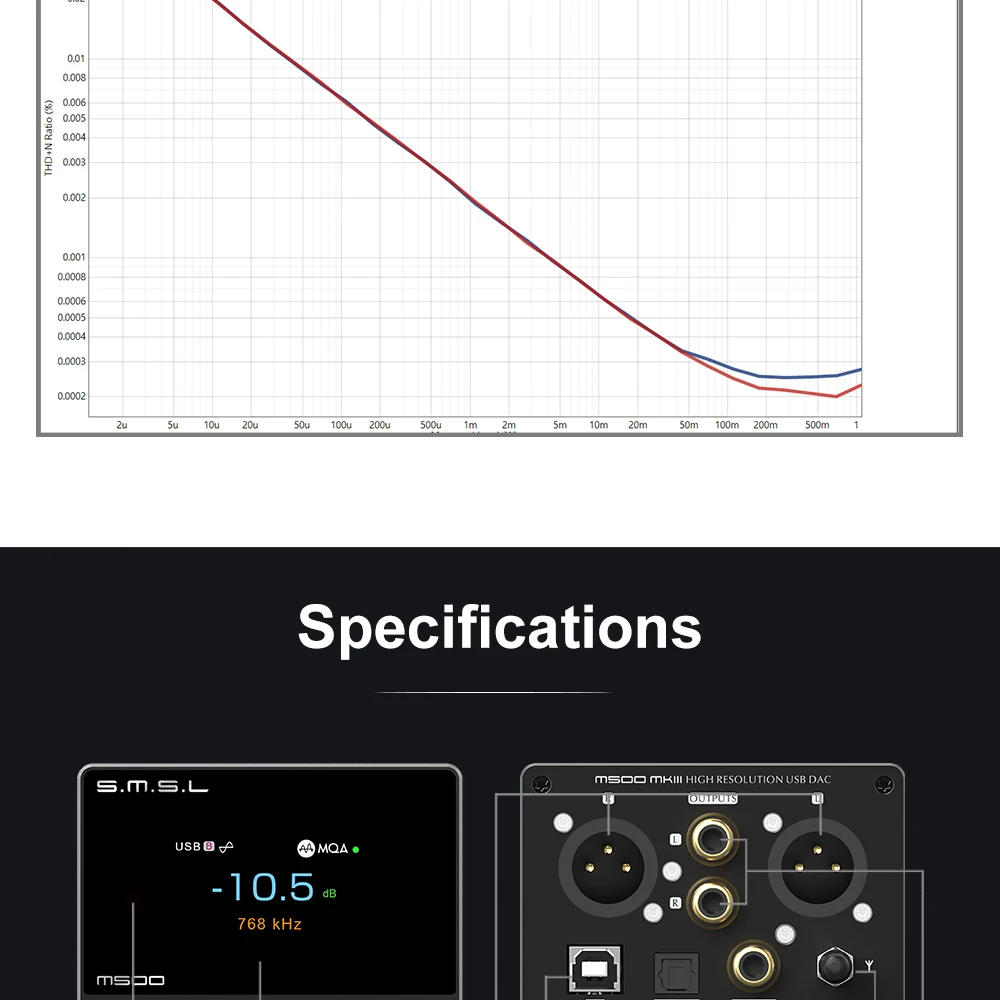

• THD+N ....................................................... 0.00006%(-123.5dB)(UN-WTD)

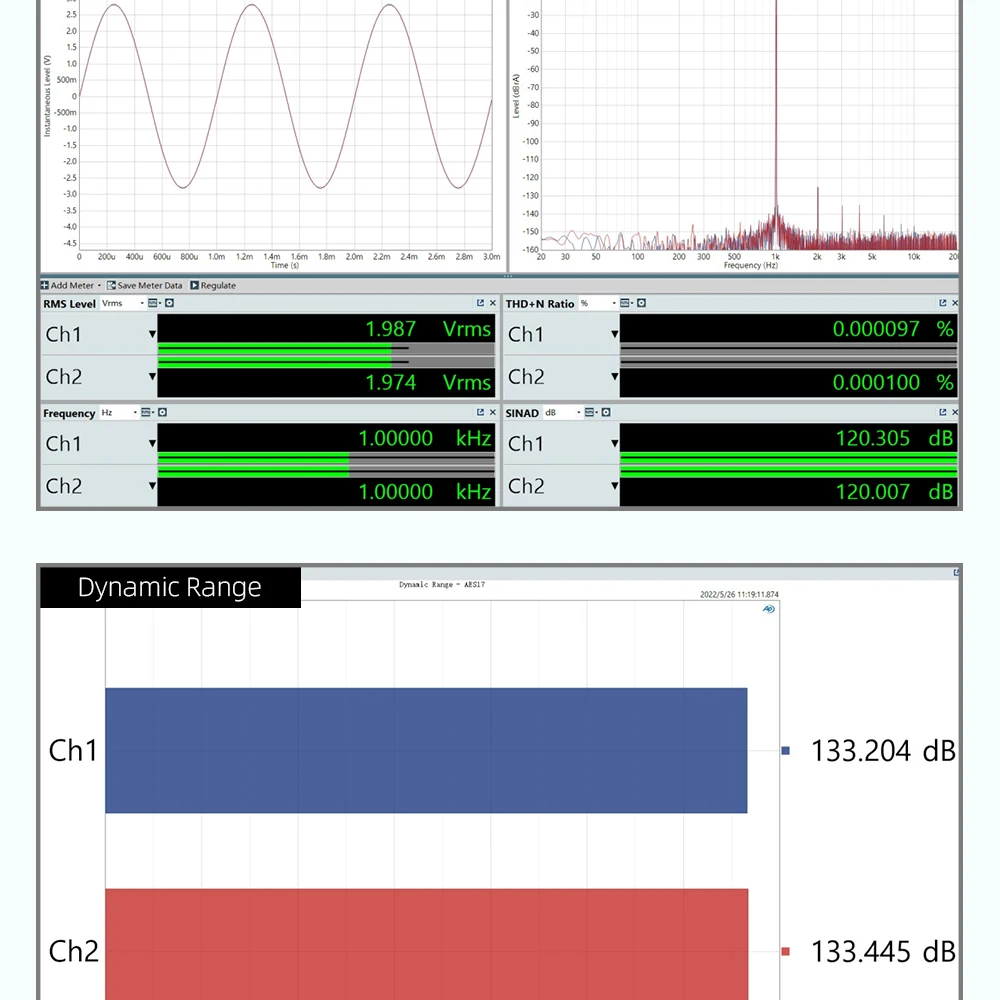

• HPA THD+N .....................................................0.0001%(-120dB)(UN-WTD)
• HPA power ...............................................................2Wx2(16Ω),1Wx2(32Ω)
• HPA gain ......................................................................0dB(Low),+9dB(High)
• Dynamic range ........................................................133dB(XLR),126dB(RCA)

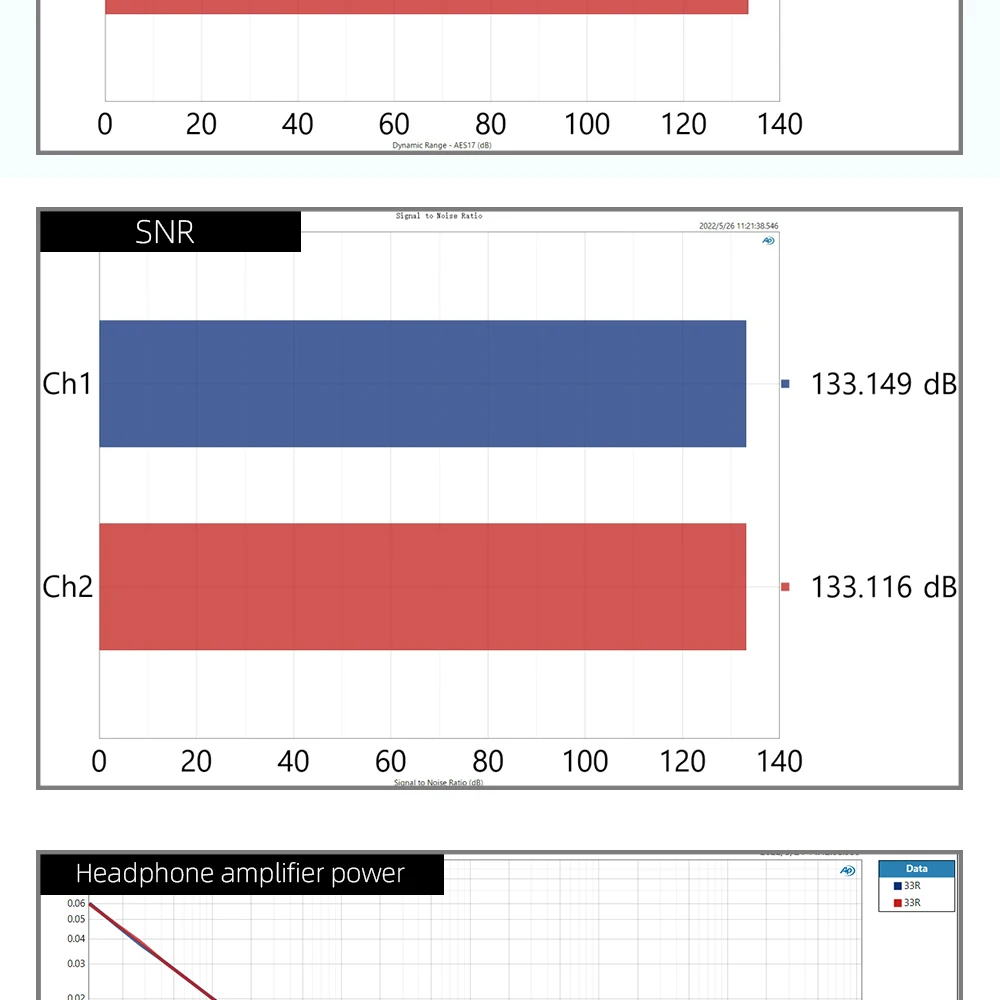

• SNR .........................................................................133dB(XLR),126dB(RCA)
• USB Spec................................................................USB 2.0 Asynchronization
• USB compatibility ........................Windows 7 / 8 / 8.1 / 10/11(Needs Driver)
• Mac OSX10.6 or Later、 Linux(Driverless)

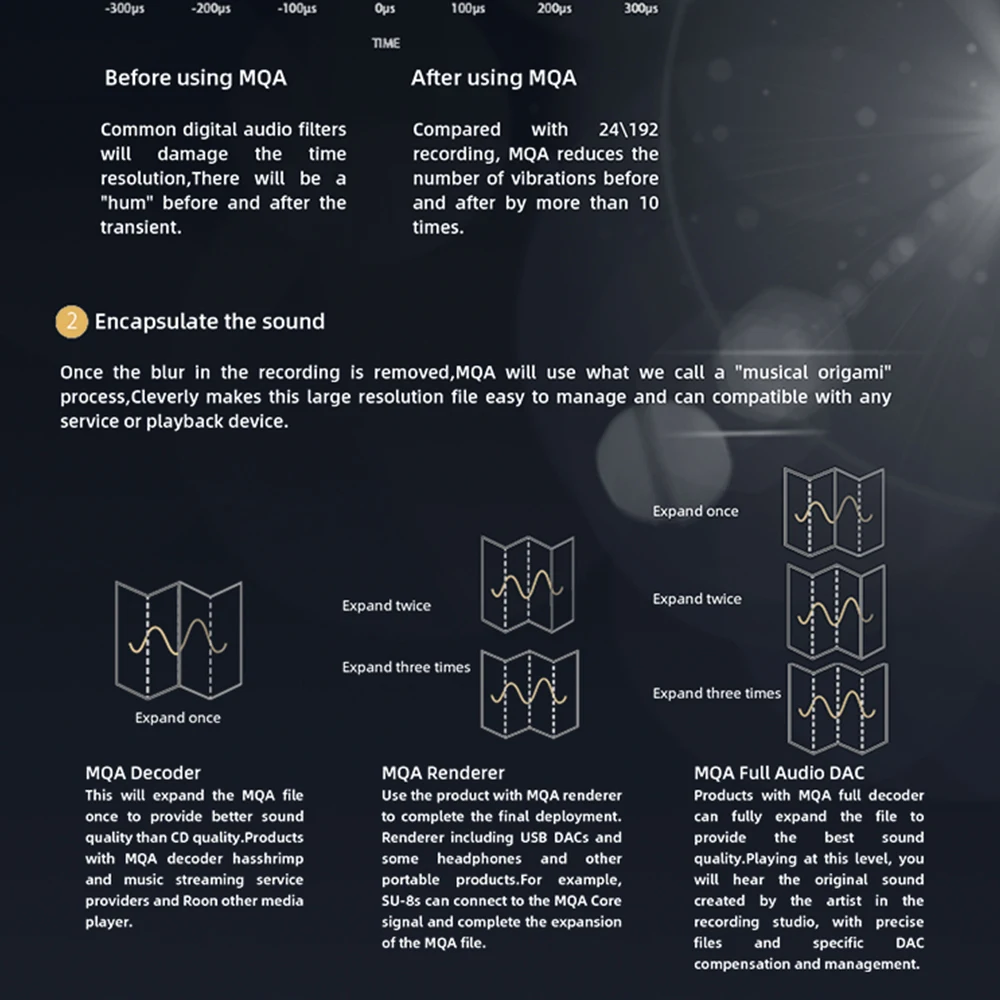

  MQA decoder ............................................................ USB / Optical / Coaxial

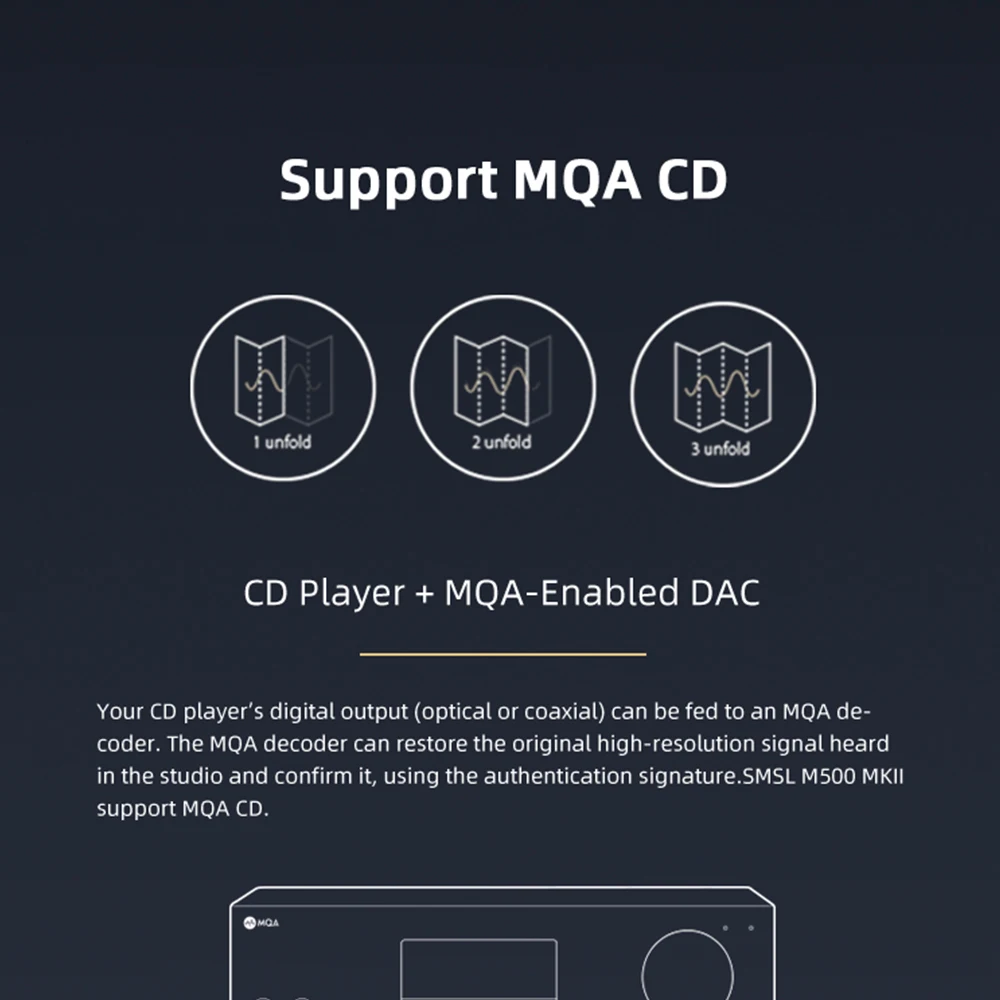

  MQA-CD decoder ............................................................... Optical / Coaxial
  DoP decoder ............................................................. USB / Optical / Coaxial
  Sampling rate & Bit Width:
  USB PCM 44.1 ~ 768kHz(32bit)
  DSD 2.8224 ~ 22.5792MHz(1bit)
  Optical / Coaxial 44.1 ~ 192kHz(24bit)
  DoP DoP256(USB),DoP64(Optical / Coaxial)

• MQA decoder ............................................................ USB / Optical / Coaxial
• MQA-CD decoder ............................................................... Optical / Coaxial
• DoP decoder ............................................................. USB / Optical / Coaxial
• Sampling rate & Bit Width:
• USB PCM 44.1 ~ 768kHz(32bit)
• DSD 2.8224 ~ 22.5792MHz(1bit)
• Optical / Coaxial 44.1 ~ 192kHz(24bit)
• DoP DoP256(USB),DoP64(Optical / Coaxial)
• Bluetooth: 5.0
• LDAC ............................................. 24bit/96kHz (990kbps/660kbps/330kbps)
• aptX-HD ......................................................................24bit/48 kHz_576kbps
• aptX ..........................................................................16bit/44.1 kHz_352kbps
• SBC ..........................................................................16bit/44.1 kHz_328kbps
• AAC .........................................................................16bit/44.1 kHz_320kbps
• Power Consumption ..................................................................................5W

• Standby power ................................................................................... <0.5W

• Size .........................................................................85x88x197mm (WxHxD)
  Weight
• Weight ......................................................................................0.90kg/1.98lb
