SMSL VMV T2 High-Res Digital Media Center with CD, USB, Bluetooth,Clock Sync

Product Details for VMV T2

Introduction

The VMV T2 is a high-resolution digital media center that supports various input methods including CD, USB, AES/EBU, and high-definition Bluetooth. It offers comprehensive output interfaces such as optical, coaxial, dual AES/EBU, and I2S. The device also supports clock input and output, allowing the use of a 10MHz clock to enhance the playback quality of USB and Bluetooth audio.

Download VMV T2 User Manual

Click the link below to download the VMV T2 User Manual:

Key Features

• Multifunctional Digital Interface: Supports USB, AES/EBU, and high-definition Bluetooth inputs.
• P.A.S.S. (Precision Access Servo System): Natively supports MQA-CD.
• Clock Input and Output: Supports 44.1kHz word clock and 10MHz standard or atomic clock.
• High Sampling Rates: USB supports up to 32bit/768kHz, DSD512, and full MQA decoding. AES/EBU input also supports full MQA decoding.
• High Precision Oscillators: Utilizes two low phase noise, high precision femtosecond local crystal oscillators.
• Impedance Matching: Clock input can match 50Ω or 75Ω input impedance.
• Clock Alignment: Built-in processor for reconstructing CD sound.
• Power Supply: Built-in dual toroidal power transformers and multiple sets of linear power supplies.
• Bluetooth: High-end Qualcomm chip supporting LDAC (24bit/96kHz), aptX/HD, SBC, and AAC.
• Display: Uses tempered glass fully laminated IPS display with a newly developed UI.
• Format Identification: Supports DOP and bit display function to identify the current audio source format.
• Build Quality: High-quality all-aluminum chassis with high-quality gold-plated input and output connection jacks.
• Power Management: Patented linear power supply adaptive voltage switching technology.
• Hi-Res Certification: Certified by the Japan Audio Society (JAS).
• Remote Control: Equipped with an all-aluminum alloy remote control and fully functional remote control.

Technical Specifications

• Input Methods: USB, Bluetooth, CD Turntable, AES/EBU

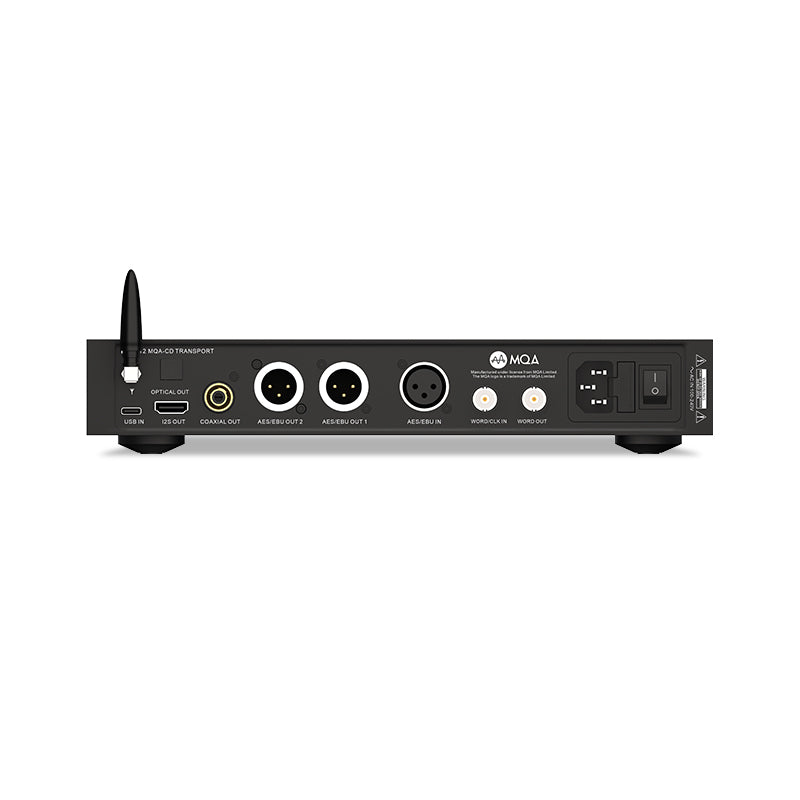

• Output Methods: Coaxial, Optical, AES/EBUx2, I2S
• USB Transmission Method: USB 2.0 Asynchronous Transmission
• USB Compatibility: Windows 7/8/8.1/10/11 (driver required), Mac OSX 10.6 or higher, Android, iOS, Linux (no driver required)
• Maximum Output Sample Rate:
  • I²S Output:
    • PCM: 44.1–768kHz
    • DSD: 2.8224–22.5792MHz
  • Optical, Coaxial, AES/EBU:
    • PCM: 24-bit/192kHz
    • MQA: 8x expansion up to 384kHz (SPDIF limited to 192kHz)
  • Bluetooth:
    • PCM: 24-bit/96kHz (LDAC)
• Clock Input:
  • Frequency: 44.1kHz or 10MHz
  • Impedance: 50 ohms or 75 ohms (optional)
  • Waveform: Square wave or sine wave
  • Level: Square wave TTL level, positive level > 1V rms
• Clock Output:
  • Frequency: 44.1kHz or 48kHz (automatically switches based on playback file)
  • Impedance: 75 ohms
  • Level: TTL level
• Bluetooth Specification: 5.1 (supports SBC, AAC, aptX, aptX HD, LDAC)
• Power Consumption: 15W
• Standby Power Consumption: <0.5W
• Dimensions: 280 x 51 x 236 mm (W x H x D)
• Weight: 3.52 kg / 7.76 lbs
