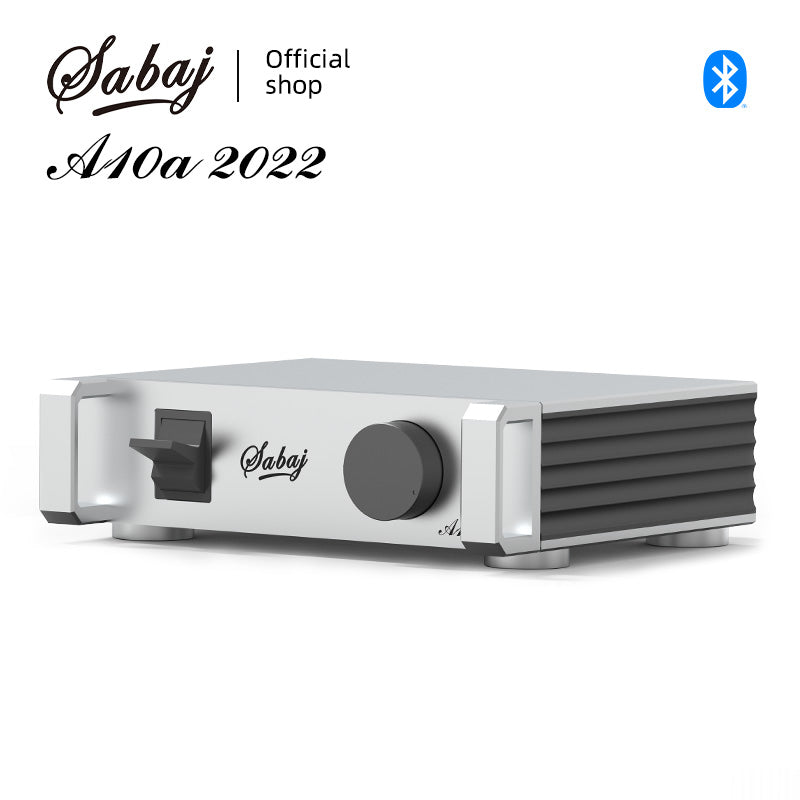

Sabaj A10A 2022‘v Power Amplifier 225W

Sabaj A10A 2022‘v Power Amplifier

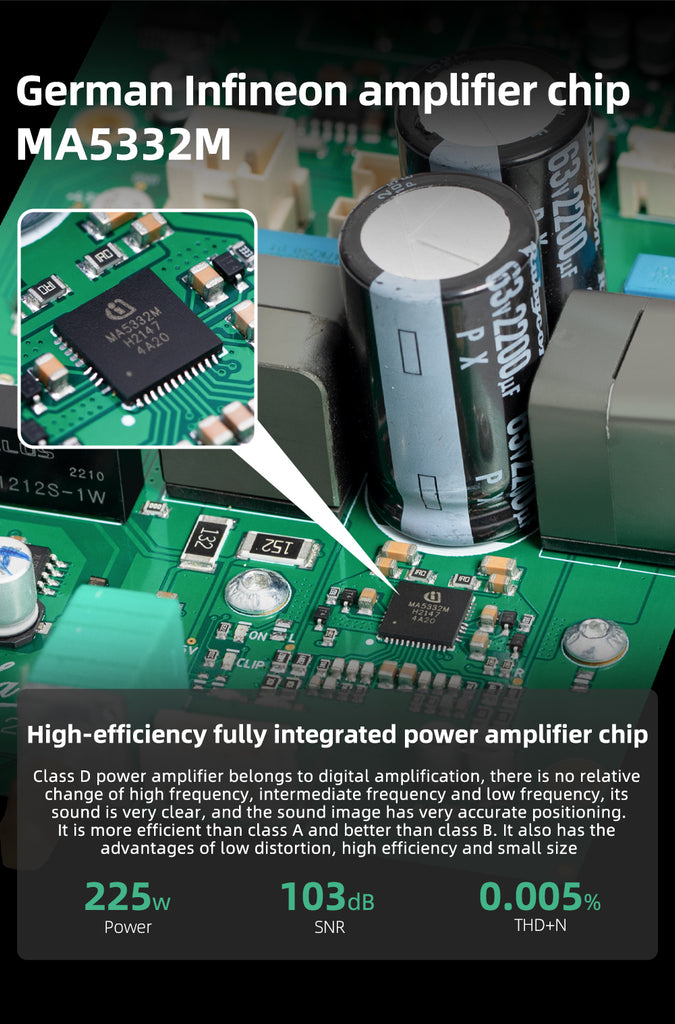

• Germany Infineon's latest digital high-power amplifier chip has higher quality, high efficiency and low energy consumption;
• Bluetooth 5.0 reception, longer transmission distance, better sound quality!

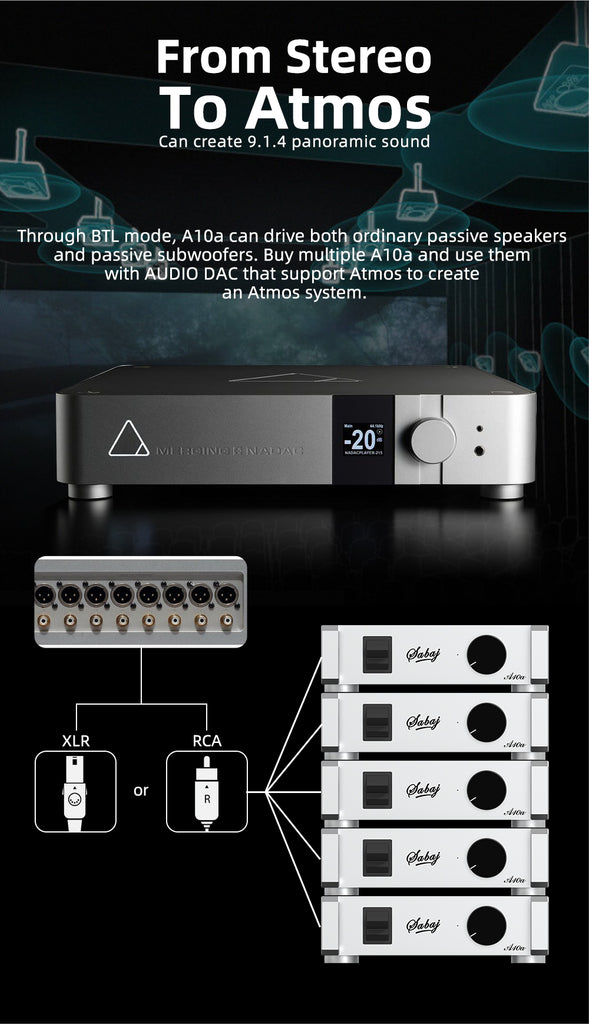

• It can be bridged (BTL) into a single-channel amplifier with higher power to drive large speakers. Or set it to subwoofer mode to drive passive subwoofers.

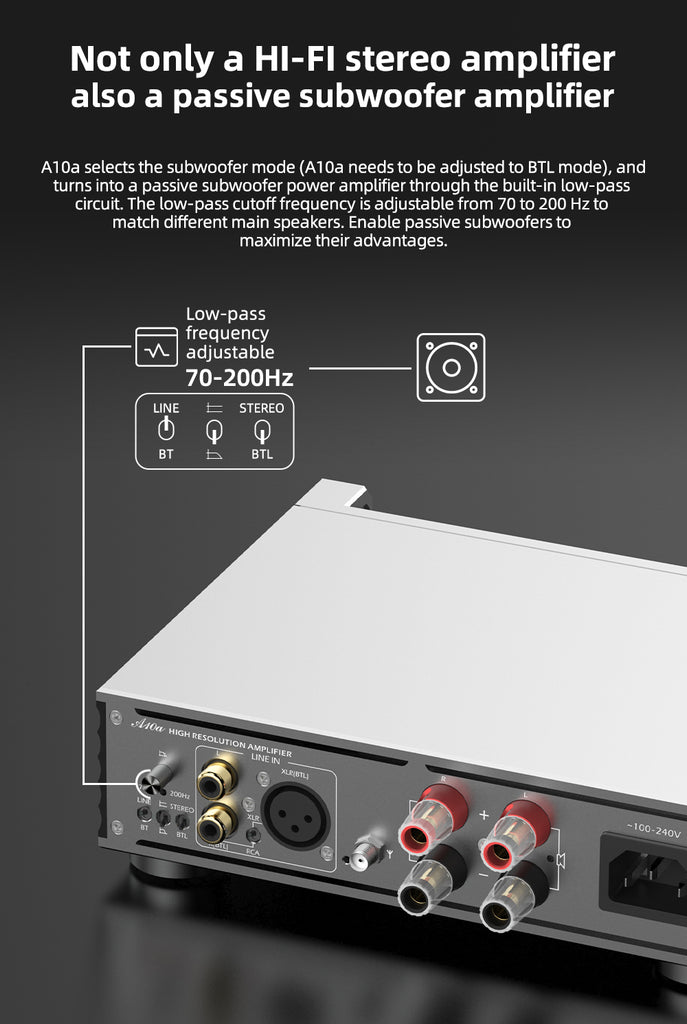

• Built-in low-pass circuit, in subwoofer mode, the low-pass cutoff frequency is adjustable from 70 to 200Hz to match different main speakers.
• All aluminum alloy CNC processing technology, using anodizing technology, fine workmanship, first-class touch;
• A large number of audiophile-grade audio components are used to enhance the subjective sense of hearing;

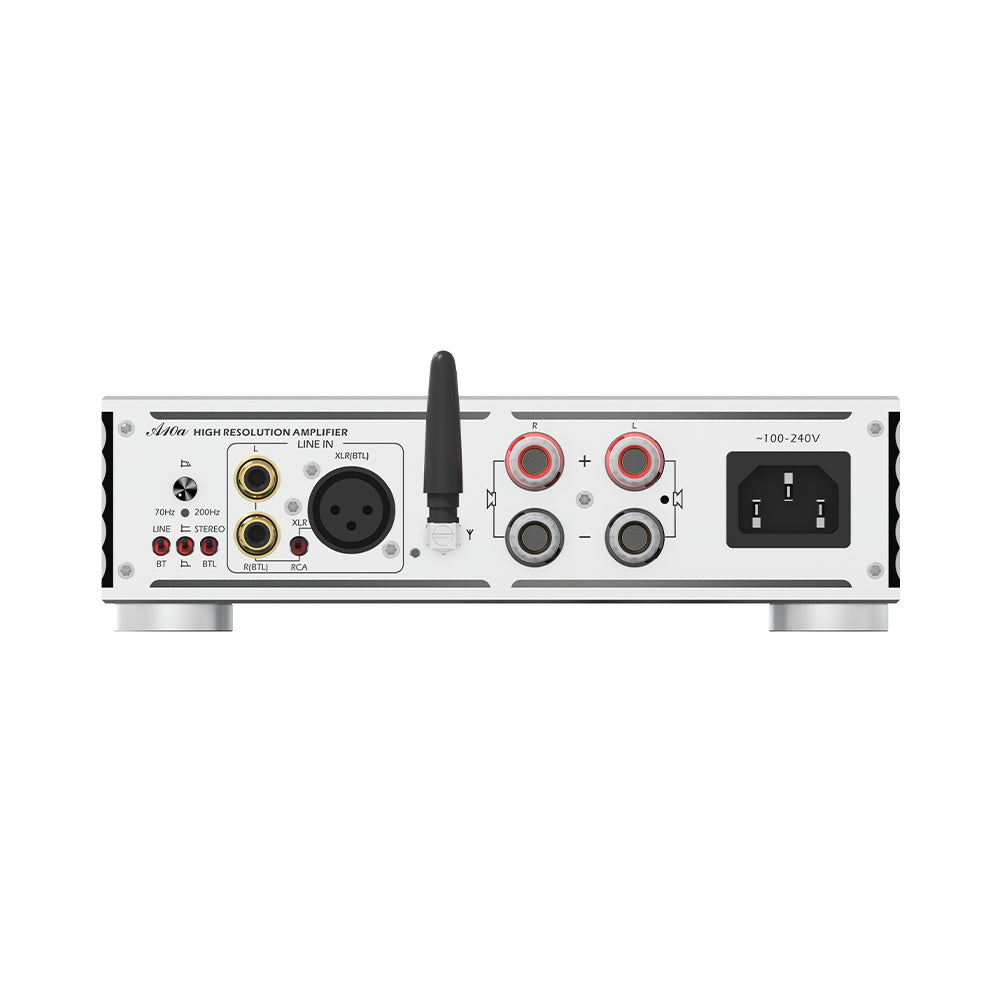

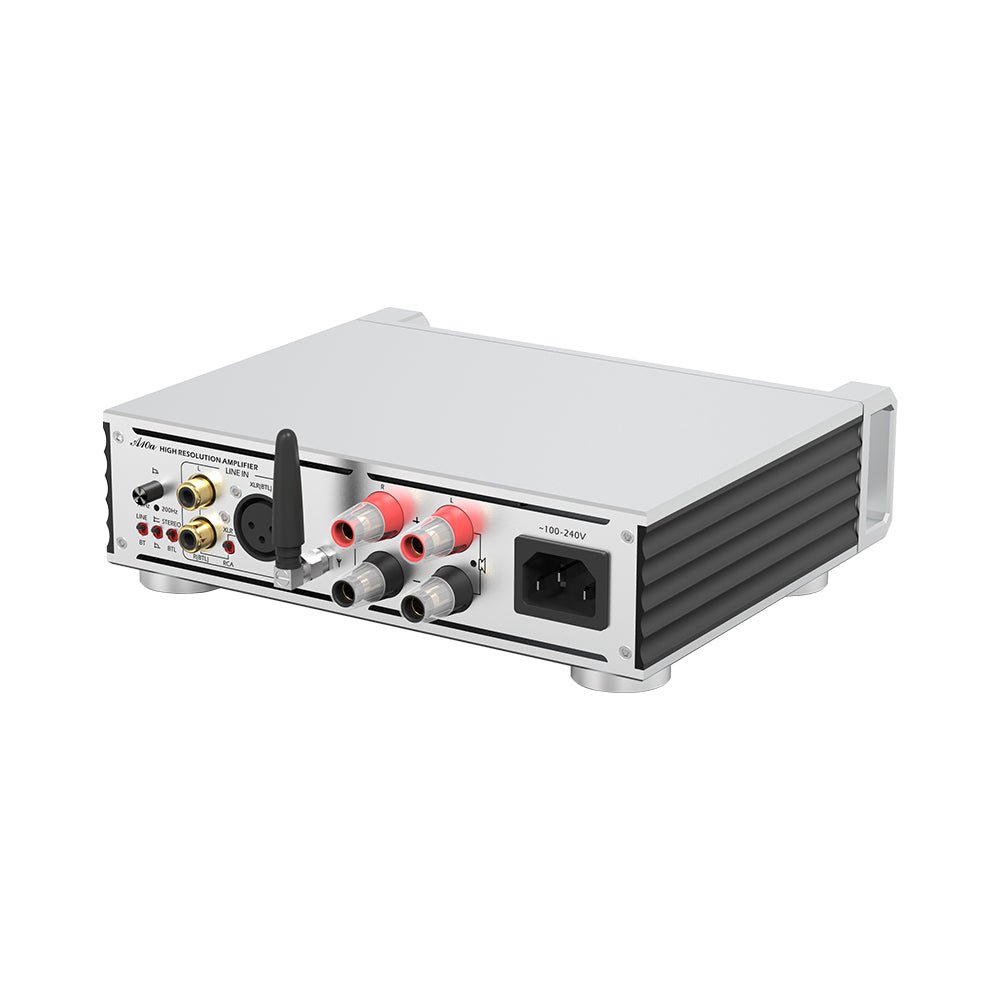

• High-quality gold-plated input and output terminals;
• Perfect overheating, overcurrent and other protection circuits;
• Built-in audio dedicated high-quality switching power supply

Inputs .................................................................................................RCA / XLR

THD+N ..................................................................................................0.005%

SNR ..........................................................................................................103dB

Channel separation .....................................................................................90dB

low pass cutoff frequency ...................................................................70~200Hz

Input Sensitivity / Input Impedance ............................................. 430mV / 22kΩ

Output Power

Stereo................................................................110W x 2(4Ω) / 66W x 2(8Ω)

BTL..........................................................................................225W x 1(4~8Ω)

Power Consumption ....................................................................................40W

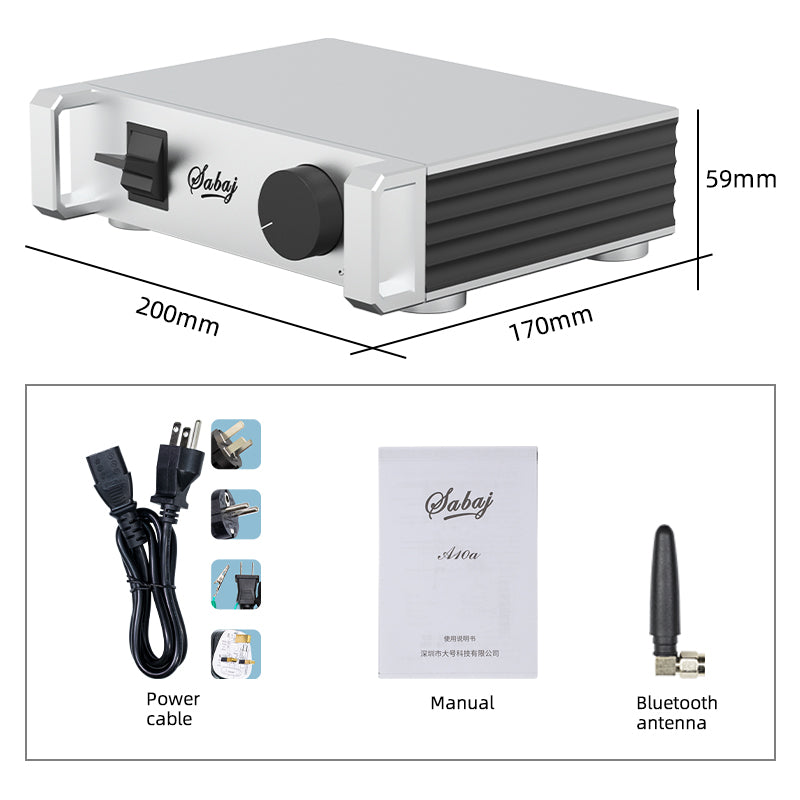

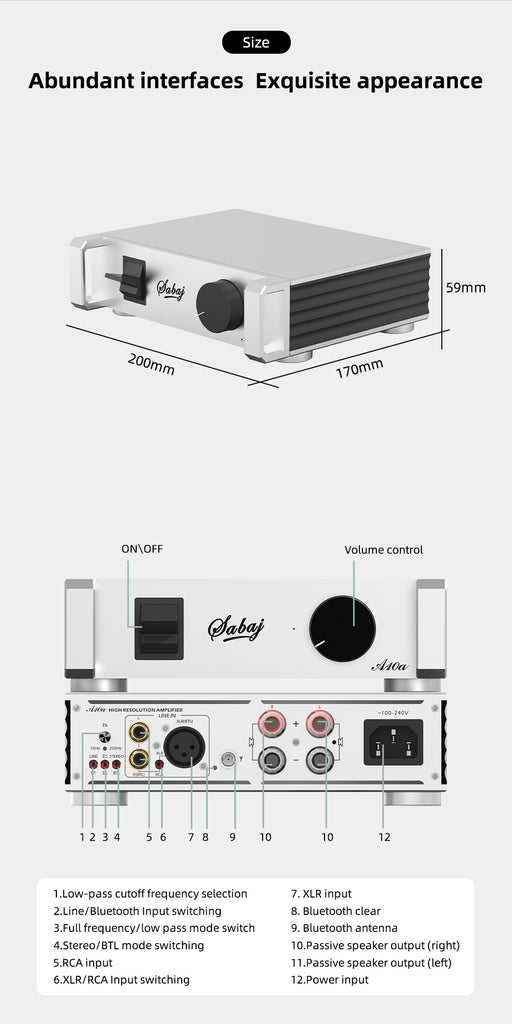

Size ...........................................................................200X187X59mm (WxHxD)

Weight ........................................................................................1480g/ 3.26Lbs
