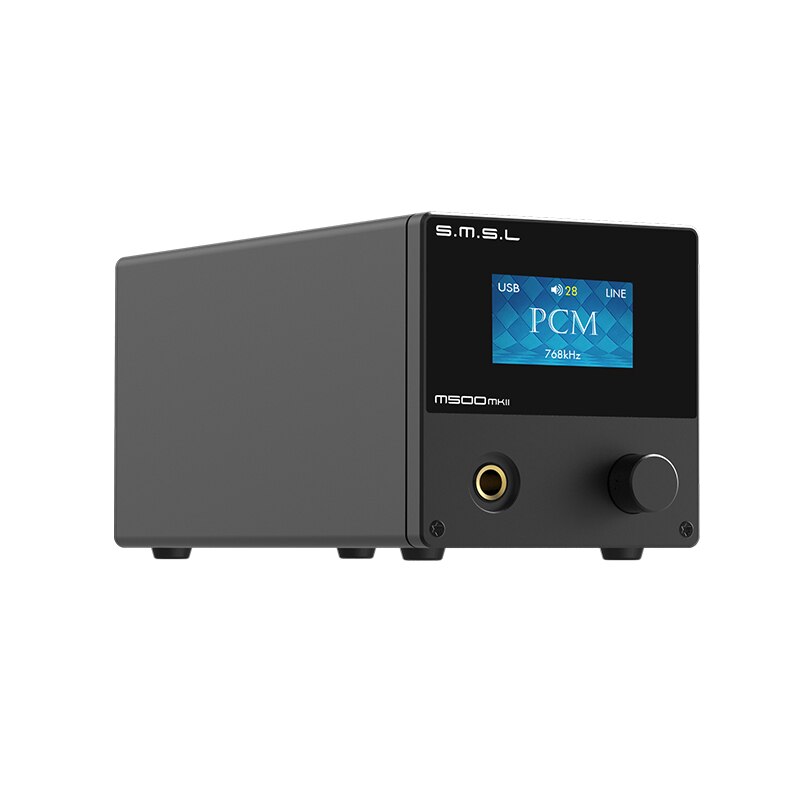

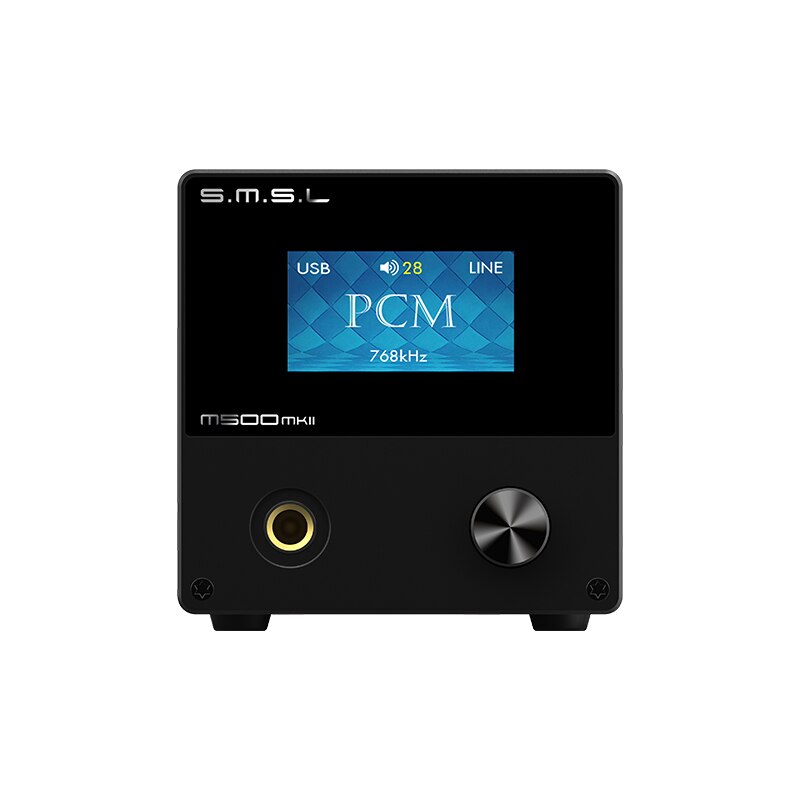

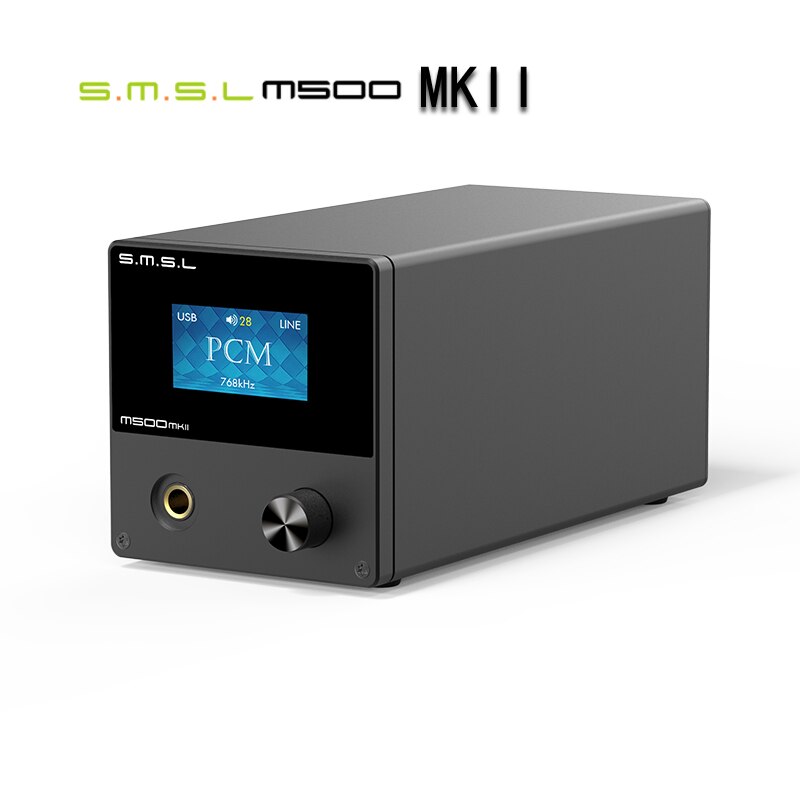

SMSL M500 MKII DAC MQA ES9038PRO DAC Decoder & Headphone Amplifier

Brand Name: S.M.S.L
Descriptions:
Ten years of ingenuity, with professional technology and attitude, present you with a high-quality auditory banquet.

M5O0MKII uses the high-end ES9038PRO D/A chip of American ESS company, with the use of ES9311, ESS high-performance DAC dedicated power chip ES9311, power supply noise is as low as 1μVrms, the third-generation ES9038PRO circuit design, distortion is as low as -123dB, and more stable!

The brand-new self-developed CK-02 clock processing circuit greatly reduces clock jitter!

The latest XMOS XU216 USB solution
USB uses the latest second-generation XMOS XU-216, a true 32bit USB solution, with customized drivers for the transmission of various high-definition audio, DoP, and native DSD can provide better support.

Technical Parameters:

• PCM Decoding: 32-Bit/768kHz.
• DSD Decoding: DSD512 natively.
• Distortion: 0.00006%(-123dB)(Un-Wtd).
• Headphone AMP Distortion: 0.0001%(-120dB)(Un-Wtd).
• Headphone Output Power: 2Wx2(16Ω), 1Wx2(32Ω).
• Gain Mode: 0dB(Low), +9dB(High).
• Headphone Output: 6.35mm.

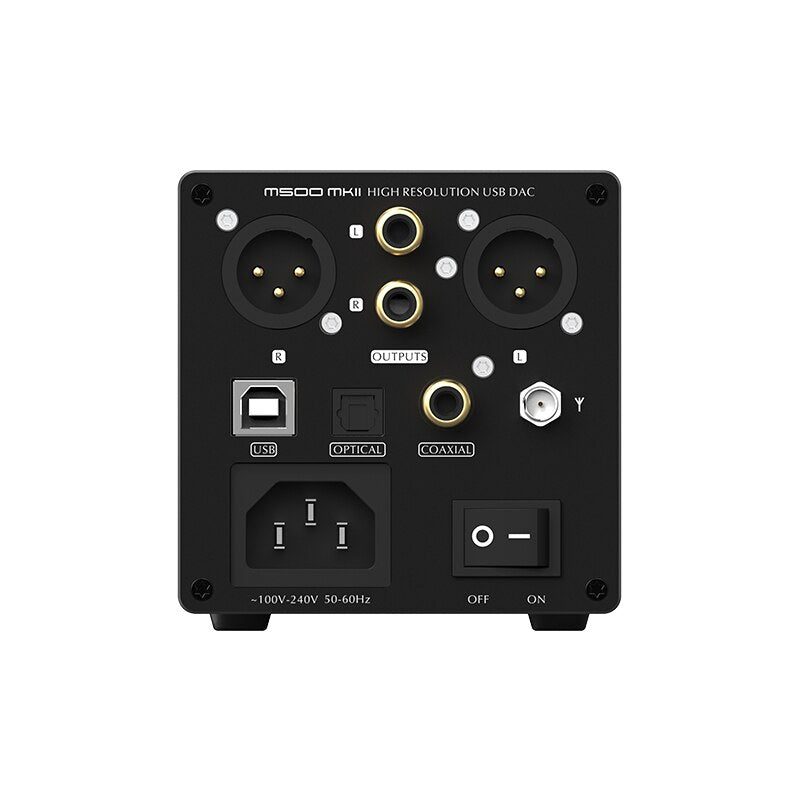

• Line-out: RCA, XLR.
• Dynamic Range: 131dB(XLR), 126dB(RCA).
• SNR: 131dB(XLR), 126dB(RCA).
