XDUOO TA-66 Headphone Amplifier High-Performance 6N2 6N59 Tube Amplifier

TA-66 High-Performance Tube Amplifier

Classic Tube Amplification for Authentic Sound

The TA-66 is a high-performance tube amplifier that combines vintage tube technology with modern design. It features point-to-point wiring and high-quality components, delivering an authentic, rich, and warm sound that audiophiles and music enthusiasts will appreciate.

6N2 Tube for Pre-Amplification

The TA-66 adopts the 6N2 tube for the pre-amplification stage, which is known for producing a sweet and exquisite sound. This tube enhances the musicality of your audio, making it ideal for listeners who prefer a warm and engaging sound signature.

6N5P Tube for Buffering

For the buffer stage, the TA-66 uses the 6N5P tube, which softens the sound, adding a charming and smooth quality to your music. This tube configuration ensures that your audio retains a warm and inviting tone.

Step-by-Step Potentiometer for Precision

The TA-66 is equipped with a step-by-step potentiometer that eliminates the problem of low-volume imbalance. This feature ensures accurate and balanced volume control, providing a better listening experience at all levels.

Line Out for Pre-Amplifier Functionality

The TA-66 includes a line output that can be used as a pre-amplifier for other audio systems or active speakers. The output is controlled by the volume knob, allowing you to improve the sound quality of your existing audio equipment by adding the warmth of tube amplification.

Professional-Grade Components for Superior Sound

The TA-66 utilizes metal polyester film capacitors, customized by XDUOO, as the coupling capacitors for the tube output. These high-quality components contribute to a transparent and sweet sound, enhancing the overall audio performance.

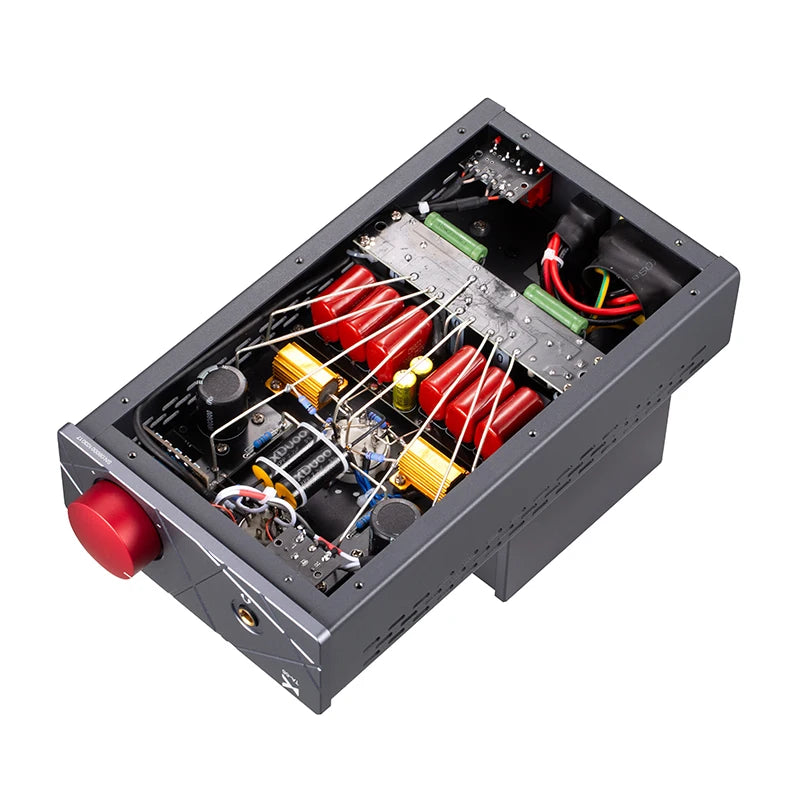

Point-to-Point Wiring for Authenticity

The TA-66 employs point-to-point soldering techniques, using copper wires to connect the tube circuits directly. This method reduces the drawbacks of excessive leads and minimizes wiring distances, ensuring a clean, interference-free signal path. The result is a sound quality that closely resembles the original characteristics of vacuum tubes.

Elegant and Durable Design

The TA-66 features a sandblasted texture panel and a solid aluminum alloy case, offering a high-end appearance while effectively resisting external interference. This robust construction ensures durability and adds a touch of sophistication to your audio setup.

Technical Specifications

• Power Source: AC 110V (100-120V) / 220V (220-240V)
• Output Power: 200mW (300Ω load)
• Frequency Range: 10Hz~30kHz (±1dB)
• Gain: +18dB
• THD+N: 0.08% (1kHz @ 300Ω load)
• S/N Ratio: 107dB
• Suitable Earphone Impedance: 60Ω～600Ω
• Size: 29.0 x 15.3 x 18.4 cm (L x W x H)
• Weight: 5.0 kg
